Shop TELEMECANIQUE SENSORS

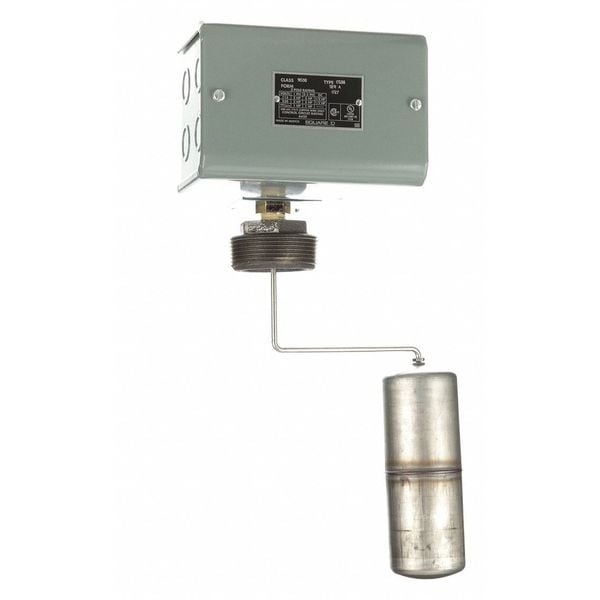

2-1/2 MNPT DPST Alternator Tank Liquid Level Switch Close on Rise

  • Mfr # 9038CG36

  • Zoro # G1020162

product price:
$
522.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
50 psi
Max. Current
600 A
Max. Voltage
475 V
Switch Function
Close On Rise
Mounting
Side
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9038CG36
Zoro #
G1020162
UPC #
785901064442
Country of Origin
Mexico

Dimensions

Height
7.22 in
Tank Connection Size
2-1/2 in MNPT
Stem Length
4 in
Float Dia.
2.5 in
Float Length
7 in
Overall Length
17.81 in
Width
10.16 in
Conduit Size
8 1/2 in, 8 3/4 in
Overall Height
5.94 in
Stem Thread Size
2 1/2 in MNPT
Manufacturer Warranty Length
18 mo
Float Diameter
2.5 in
Overall Width
6.84 in
Wire Rope Length
17.81 in
Length
17.81 in

Details

Max. Pressure
50 psi
Item
Alternator Closed Liquid Level Switch
Max. Current
600 A
Max. Voltage
475 V
Switch Function
Close On Rise
Mounting
Side
Standards
CE, CSA, CSA File LR25490, UL Listed, UL 50, UL 508, UL File E12158
Contact Form
4NC
HP @ 3 Phase - 240V
5 hp
Float Switch Float Material
Stainless Steel
Float Material
304 Stainless Steel
HP @ 1 Phase - 120V
2 hp
Float Switch Contact Form
DPST
Operating Temp. Range
-22 Degrees to 220 Degrees F
Electrical Connections
Screw Clamp
Body Material
Steel
Float Rod Angle
90 Degrees
NEMA Rating
1
HP @ 1 Phase - 240V
3 hp
Stem Material
316 Stainless Steel
Float Travel
4 3/4 in
Float Position
Left
Includes
Rod and Float
Series
9038C
Product Type
Alternator Closed Liquid Level Switch
Operating Temperature - Maximum
220 Degrees F
Operating Temperature - Minimum
-22 Degrees F
Horsepower @ Three Phase - 240V AC
5 hp
Proof Pressure
50 psi
Horsepower @ Single Phase - 240V AC
3 hp
Mounting Style
Vertical
Voltage Rating - Maximum
575 V AC
NEMA Enclosure Rating
1
Horsepower @ Single Phase - 120V AC
2 hp
Electrical Connection
Screw-Clamp Terminal
Minimum Media Specific Gravity
0.85
Switch Structure
DPST
Features
Cast Iron Bushing, Quad Ring Packing (Buna-N)

Description

Alternator Closed Liquid Level Switch, Switch Function Close On Rise, Side Mounting, Float Travel 4 3/4 in, NEMA Rating 1, Tank Connection Size 2-1/2 in MNPT, Max. Pressure 50 psi, Operating Temp. Range -22 Degrees to 220 Degrees F, Overall Length 17.81 in, Float Material 304 Stainless Steel, Float Length 7 in, Float Dia. 2.5 in, Stem Material 316 Stainless Steel, Stem Length 4 in, Height 7.22 in, Width 10.16 in, Contact Form 4NC, Max. Voltage 475 V, HP @ 1 Phase - 120V 2 hp
