This item is Discontinued.

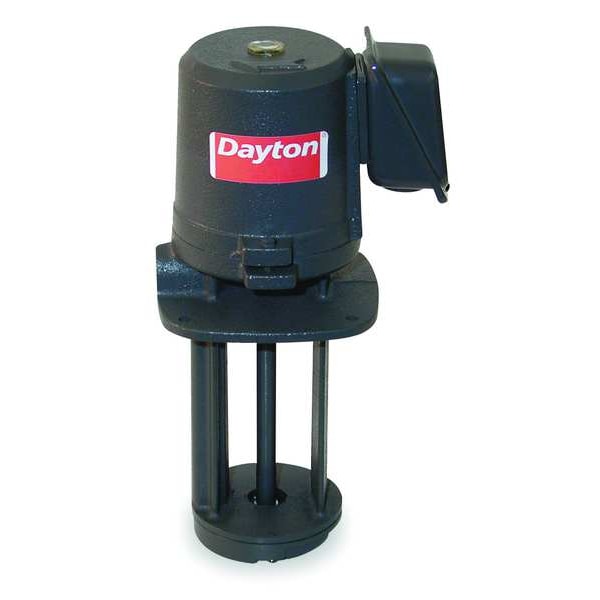

Dayton Oil Coolant Pump, 1/2 HP, 3Ph, 230/460V 3GRW1

Oil Coolant Pump, 1/2 HP, 3Ph, 230/460V (Discontinued)

  • Mfr # 3GRW1
  • Zoro # G2775735
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3GRW1
Zoro #
G2775735
UPC #
190735286159
Country of Origin
Taiwan, Province of China

Dimensions

Max. Immersion Depth (In.)
9 1/2 in
Length (In.)
5 3/8 in
Bolt Circle Dia. (In.)
6.75 in
Width (In.)
5 3/8 in
Height (In.)
18 3/4 in
Overall Width
5.44 in
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
3/4 in
Intake and Discharge Size
3/4 in , 3/4 in
Overall Length
9.44 in
Manufacturer Warranty Length
Limited Warranty
Overall Height
18.69 in
Immersion Depth (Maximum)
9.5 in

Details

Item
Machine Tool Pump
HP
1/2 hp
Phase
Three
Voltage
230/460
Impeller Material
Aluminum
Body Material
Cast iron
Max. Recommended Viscosity
500 SSU
Type
Immersion
RPM
3,450 RPM
GPM of Water @ 20 Ft. of Head
26 gpm
GPM of Water @ 10 Ft. of Head
35 gpm
GPM of Water @ 15 Ft. of Head
30 gpm
Discharge Port (In.)
3/4 in
Shaft Material
Carbon Steel
Includes
Grinder, Spraying of Cutting Oil in all Types of Machines
Motor Enclosure
Totally Enclosed Fan Cooled
Application
Circulation of Coolant, Spraying of Cutting Oil in all Types of Machines, Including Grinders
Shut-Off (Ft.)
42 ft
Max. Temp.
180 Degrees F
GPM of Water @ 30 Ft. of Head
18 gpm
GPM of Water @ 5 Ft. of Head
35 gpm
Amps
1.8/1.2
GPM of Water @ 40 Ft. of Head
5 gpm
Inlet/Outlet (In.)
3/4 in
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Feet of Head (Minimum)
11 ft
Flow Rate @ 5 ft of Head (Maximum, Water)
38 gpm
Nameplate Voltage
230/460V AC
Maximum RPM
3,450 RPM
Maximum Feet of Head
42 ft
Flow Rate @ 20 ft of Head (Maximum, Water)
26 gpm
Intake Type
NPT
Flow Rate @ 15 ft of Head (Maximum, Water)
30 gpm
Maximum Viscosity
500 SUS
Maximum Media Temperature
180 Degrees F
Flow Rate @ 10 ft of Head (Maximum, Water)
35 gpm
Discharge Type
NPT
Compatible with Media Type
Liquid with Fine Contaminants
Horsepower
1/2 hp
Pump Housing Material
Cast Iron
Flow Rate (Maximum, Water)
35 gpm
Frequency
60 Hz

Description

Machine Tool Pump, Nameplate Voltage 230/460V AC, Phase Three, Pump Housing Material Cast Iron, Horsepower 1/2 hp, Maximum Viscosity 500 SUS, Flow Rate (Maximum, Water) 35 gpm, Flow Rate @ 5 ft of Head (Maximum, Water) 38 gpm, Flow Rate @ 10 ft of Head (Maximum, Water) 35 gpm, Flow Rate @ 15 ft of Head (Maximum, Water) 30 gpm, Maximum Feet of Head 42 ft, Immersion Depth (Maximum) 9.5 in, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Intake Type NPT
