Shop DAYTON

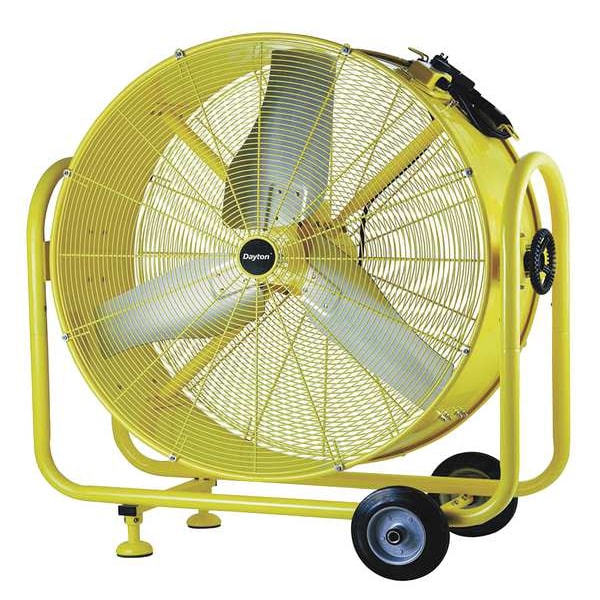

Outdoor Air Circulator, Floor Mount, 24 in Blade Dia, 120V, 3,600/5,800 cfm, Non-Oscillating

  • Mfr # 2RDZ1

  • Zoro # G0247974

product price:  $519.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RDZ1
Zoro #
G0247974
UPC #
190735229774
Country of Origin
China

Dimensions

Blade Diameter
24 in
Height
32 in
Shaft Dia.
5/8 in
Outside Dia.
29 in
Max. Depth
15 in
Width
32 in
Height Adjustment
Fixed
Fan Cord Length
9 ft
Wheel Dia.
8 in
Depth
15 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
120V
Phase
1
Motor HP
1/3
Air Flow
3,600/5,800 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Item
Air Circulator
Environmental Applications
Industrial
Application
Spot Cooling
Motor Type
Permanent Split Capacitor
Motor Insulation
Class B
Watts
395/275 W
Number of Conductors
3
Fan Style
Outdoor
CFM Low
3600
Standards
cULus
Air Velocity @ 20 Ft.
250/220 fpm
Mobile/Stationary
Mobile
Air Velocity @ 40 Ft.
100/90 fpm
Bearing Type
Sealed Ball
Air Velocity @ 60 Ft.
45/10 fpm
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
CFM High
5800
Housing Material
Galvanized Steel
Fan Mounting Location
Floor
Wire Guard Finish
Powder Coated
Number of Blades
3
NEMA Plug Configuration
5-15P with GFCI
Thermal Protection
Automatic Reset
Fan Accessory Style
Outdoor
Guard Material
Galvanized Steel
Includes
8 in Steel and Rubber Wheels, Cord Wrap, Tilt Fan Housing
Assembled
Partially Assembled
Motor RPM
850/725 RPM
Motor Enclosure
Totally Enclosed Air Over
Head Tilt Adjustment
60 Degrees
Fan Housing Material
Steel
Assembly Required
Yes
Color
Safety Yellow
Wheeled Base
Mobile
Wheel Material
Steel/Rubber
Amps
3.4/2.2
RPM
730 RPM, 846 RPM
Material
Galvanized Steel
Motor hp
1/3 hp
NEMA plug Configuration
5-15p with GFCI
Removable Base
Permanently Lubricated
Number of Wheels
2
For Location
Manufacturing Plant
Housing Finish
Painted
Airflow
3,600 cfm, 5,800 cfm
Fan Shape
Drum
Bearing Protection
Sealed
Guard Color
Yellow
High-Visibility
Yes
Environment Rating
Dry
Corrosion-Resistant
Yes

Description

High-Visibility Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 5800, CFM Low 3600, Air Velocity @ 20 Ft. 250/220 fpm, Motor HP 1/3 hp, Motor RPM 850/725, Operating Amps 3.4/2.2, Fan Mounting Location Floor, Fan Accessory Style Outdoor, Fan RPM 850/725, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 395/275, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 29 In., Height 32 in, Width 32 in, Max. Depth 15 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
