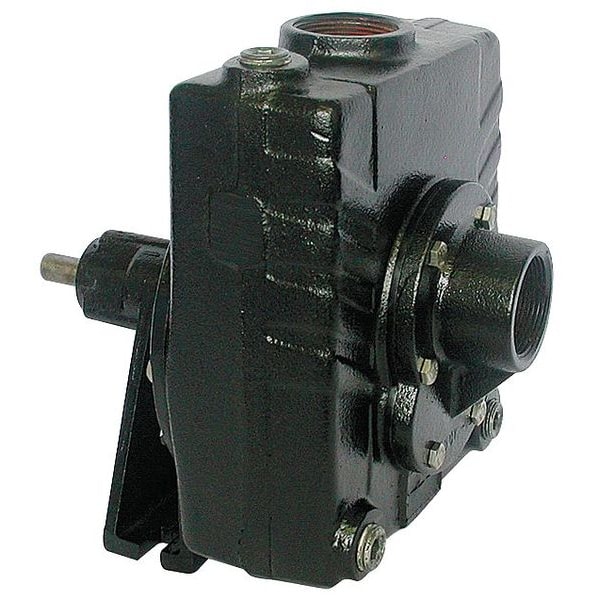

Pedestal Pump, Cast Iron, 2 HP
Mfr # 5PXX6
Zoro # G1488636
product price: $471.99
/ea
Free Shipping & Returns
Key Features
HP Required
2 hp
Inlet
1 1/2 in
Outlet
1 1/2 in
Wetted Materials
Cast Iron, Carbon/Ceramic, Buna N, Stainless Steel, Carbon Steel
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5PXX6
Zoro #
G1488636
UPC #
190735350249
Country of Origin
China
Dimensions
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
3/8
Height
9 13/16 in
Shaft Size
5/8 in
Length
10 5/8 in
Width
7 in
Overall Length
10.63 in
Overall Width
7 in
Overall Height
9.81 in
Compatible Discharge Pipe Size
1 1/2 in
Solid Diameter (Maximum)
0.38 in
Sized for Horsepower
2 hp
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Shaft Outside Diameter
5/8 in
Description
Pedestal Pump, Pump Housing Material Cast Iron, Sized for Horsepower 2 hp, Flow Rate @ 10 ft of Head (Maximum) 66 gpm, Flow Rate @ 20 ft of Head (Maximum) 60 gpm, Flow Rate @ 30 ft of Head (Maximum) 50 gpm, Flow Rate @ 40 ft of Head (Maximum) 41 gpm, Maximum Feet of Head 76 ft, Intake Type NPT, Compatible Intake Pipe Size 1 1/2 in, Compatible Discharge Pipe Size 1 1/2 in, Suction Lift (Maximum) 25 ft, Shaft Outside Diameter 5/8 in, Priming Self-Priming, NPSHr 34 psi, Best Efficiency Flow 52 gpm
Restrictions
This is a restricted item in the USA. It cannot be used for potable water applications.
