Shop DAYTON

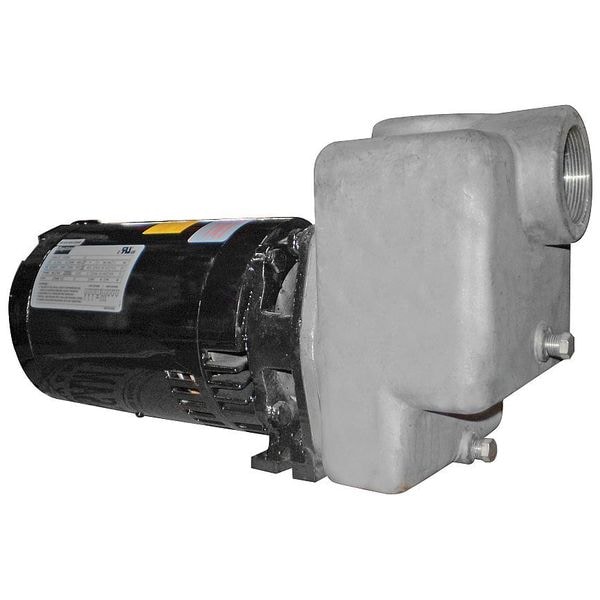

Centrifugal Pump, 2 hp, 208 to 230/460V AC, 3 Phase, 72 ft Max Head

  • Mfr # 5GUP4
  • Zoro # G2775516
product price:
$
1,699.99
/ea
Free Shipping & Returns

Key Features

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Inlet
2 in NPT
HP - Pumps
2 hp
Voltage - Pumps
208V AC to 230V AC, 460V AC
Outlet
2 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5GUP4
Zoro #
G2775516
UPC #
190735344088
Country of Origin
India

Dimensions

Outlet Size - Pumps
2 in NPT
Max. Dia. Solids - Pumps
1/8 in
Inlet Size - Pumps
2 in NPT
Max. Dia. Solids
1/8"
Height
10 1/8 in
Manufacturers Warranty Length
1 yr
Width
6 7/8 in
Length
17.2 in
Overall Width
6.8 in
Overall Length
17.2 in
Overall Height
9.1 in
Compatible Intake Pipe Size
2 in
Solid Diameter (Maximum)
0.13 in
Compatible Discharge Pipe Size
2 in
Shaft Outer Diameter
5/8 in
Motor Frame Size
56J
Discharge Diameter
2 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
2 in
Impeller Diameter
4 1/8 in
Wire Rope Length
17.2 in

Details

Item - Self Priming Pumps
Self Priming Centrifugal Pump
Item
Centrifugal Pump
Inlet
2 in NPT
HP - Pumps
2 hp
Voltage - Pumps
208V AC to 230V AC, 460V AC
Outlet
2 in NPT
Phase - Pumps
3
Wetted Materials
Carbon, Ceramic, Stainless Steel, Viton
HP
2
Max. Head - Pumps
72 ft
Voltage
208V to 230V, 460V
Volute Material
316 Stainless Steel
Best Efficiency Range GPM @ Head
64 to 90 gpm @ 60 to 49 ft
Seal Material
Carbon, Ceramic, Viton
Suction Lift
20 ft.
Motor Enclosure - Pumps
Open Dripproof
Motor RPM
3,450 RPM
Max. Pressure - Pumps
31 psi
Housing Material - Pumps
316 Stainless Steel
Phase
Three
Max. Pressure
31.1 psi
Max. Temp - Pumps
200 Degrees F
Motor Enclosure
Open Drip Proof
GPM of Water @ 20 Ft. of Head
115
Motor Design
Three-Phase
Inlet Pressure
100 psi
Housing Material
Stainless steel
Max. Liquid Temp.
200 Degrees F
Agency Compliance
c UL us
Port Rotation
No
Suction Lift - Pumps
20 ft
Impeller Material
Stainless Steel
Motor Type
3-Phase
Duty
Continuous
Max. Case Pressure
165 psi
GPM of Water @ 15 Ft. of Head
118
Bearing Type
Ball
Hz
60 Hz
Self-Priming
Yes
Amps
5.9-5.2/2.5
GPM of Water @ 30 Ft. of Head
108
GPM of Water @ 50 Ft. of Head
89
GPM of Water @ 40 Ft. of Head
99
Impeller Type
Semi Open
Duty - Pumps
Continuous
Max. Specific Gravity
1.0
Frame
56J
Port Rotation - Pumps
No
Includes
Manual
Max. Head
72 ft.
Standards
UL Recognized Motor
Seal Type
Mechanical
Shaft Material
Stainless Steel
Flow Rate @ 30 ft of Head (Maximum)
90 gpm
Impeller Design
Semi-Open
Maximum RPM
3,500 RPM
Frequency
60 Hz
Specific Gravity (Maximum)
1
Priming
Self-Priming
Minimum Flow Rate
24 gpm
Flow Rate @ 15 ft of Head (Maximum)
98 gpm
Nameplate Voltage
230/460V AC
Maximum Flow Rate
118 gpm
Suction Lift (Maximum)
20 ft
Duty Cycle
Continuous
Flow Rate @ 50 ft of Head (Maximum)
76 gpm
Compatible with Media Type
Non-Flammable Liquids
Feet of Head (Minimum)
20 ft
For Use With Potable Systems
No
Maximum Feet of Head
72 ft
Intake Type
NPT
Shut Off Pressure (Maximum)
31 psi
Pump Housing Material
Stainless Steel
Motor Frame Designation
56J
Best Efficiency Head
60 ft
Flow Rate @ 40 ft of Head (Maximum)
86 gpm
Flow Rate @ 20 ft of Head (Maximum)
95 gpm
Flow Rate @ 60 ft of Head (Maximum)
64 gpm
Pumping Application
Chemical Transfer, Decorative Water, Dewatering, Irrigation, Liquid Transfer
Discharge Type
NPT
Best Efficiency Flow
90 gpm
Flow Rate @ 70 ft of Head (Maximum)
24 gpm
Minimum Media Temperature
40 Degrees F
Horsepower
2 hp
Wetted Material
Carbon, Ceramic, Stainless Steel, Viton
Suction Lift - Maximum
20 ft
Discharge Rotation Increments
0 Degrees
Ambient Temperature - Maximum
40 Degrees C
Flow Rate (Minimum)
24 gpm
Chemical Compatibility
Non-Flammable Liquids
Full Load Current
5.2/2.5 A
Hazardous Location Class
Not Rated
Discharge Position
Center
Electrical Connection Type
Hardwired
Shaft Seal Material
Carbon/Ceramic, FKM
Shaft Seal Type
Mechanical
Inlet Orientation
Side
Media Temperature - Maximum
200 Degrees F
Motor Speed - Maximum
3,450 RPM
Viscosity (Maximum)
100 SUS
Shut Off Pressure - Maximum
31 psi
Case Pressure - Maximum
100 psi
Inlet Position
Center
Drive Coupling Type
No Coupling
Feet of Head (Maximum)
72 ft
Flow Rate (Maximum)
118 gpm
Media Temperature - Minimum
40 Degrees F
Discharge Orientation
Top
Thermal Overload Protection
Yes
Mounting Orientation
Horizontal
Number of Stages
1

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 2 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 99 gpm, Flow Rate @ 60 ft of Head (Maximum) 64 gpm, Maximum Feet of Head 72 ft, Compatible Intake Pipe Size 2 in, Intake Type NPT, Compatible Discharge Pipe Size 2 in, Discharge Type NPT, Motor Enclosure Open Dripproof, Maximum Flow Rate 118 gpm, Flow Rate @ 15 ft of Head (Maximum) 118 gpm, Flow Rate @ 20 ft of Head (Maximum) 115 gpm
