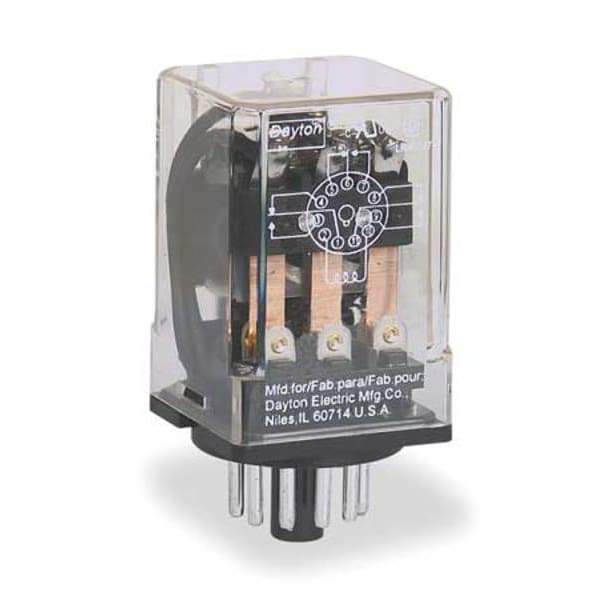

Dayton Plug-In, General Purpose Relay, Octal, 10 A, 11 Pins 3X741 - main

Plug-In, General Purpose Relay, Octal, 10 A, 11 Pins

  • Mfr # 3X741

  • Zoro # G0916815

product price: $32.79
/ea

Key Features

Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
11
Coil Voltage
24V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3X741
Zoro #
G0916815
UPC #
190735295786
Country of Origin
China

Dimensions

Overall Height - Relay
2.6 in
Overall Depth
2.6 in
Body Depth
1.4 in
Body Width
1.4 in
Body Height
2.1 in

Details

Item
General Purpose Relay
Mounting Style
Plug-In
Electrical Connection
Pin
Base Shape
Octal
Number of Pins
11
Coil Voltage
24V AC
Current Rating
10 A
Contact Form
3PDT
Contact Rating (AC)
10 A @ 277V
Contact Rating (DC)
10 A @ 28V
Contact Material
Silver Alloy
Power Consumption - Relay
2.8 VA
Standards
E40944
Socket
6X156
Status Indicator
Mechanical Flag
Socket Code
B
Push-To-Test Method
No Test Button
Series
B Series
Horsepower @ 240V AC
1/2 hp
Horsepower @ 120V AC
1/3 hp
Power Consumption
2.8 VA
Motor Rated
Yes

Description

General Purpose Relay, Base Shape Octal, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.4 in, Body Height 2.1 in, Body Width 1.4 in, Contact Material Silver Alloy
