  11. Latching Relay, 10 Pins, Square, 120VAC
Shop All Latching Relays
Omron

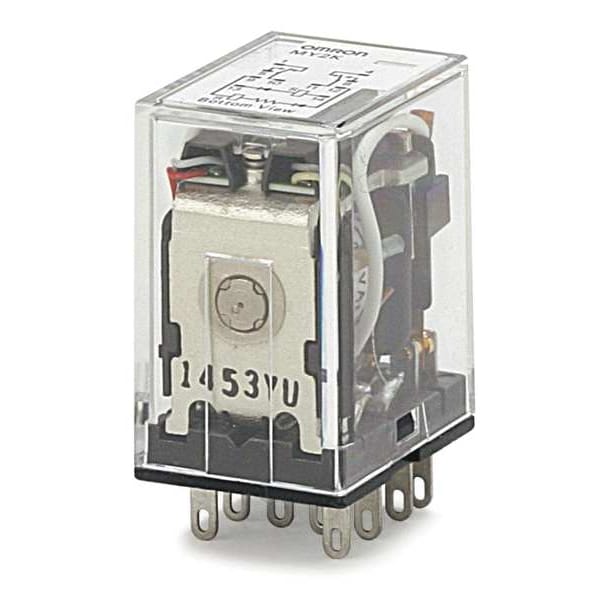

Latching Relay, 10 Pins, Square, 120VAC

product price: $63.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • AC Contact Rating - Relay 3A @ 240V
  • DC Contact Rating - Relay 3A @ 24V
  • Base Type - Plug In Relay Square
  • Number of Pins - Relay 10
  • Contact Form - Relay DPDT
See all product information

Product Information

Dimensions

Overall Height - Relay 1.67 in
Body Width - Relay 0.85 in
Body Height - Relay 1.42 in
Body Depth - Relay 1.1 in
Body Width 0.85 in
Overall Depth 1.67 in
Body Depth 1.42 in
Body Height 1.1 in
Flat Pin Width 0.102 in

Details

Item - Relay Latching Relay
Coil Volts 120V AC
AC Contact Rating - Relay 3A @ 240V
DC Contact Rating - Relay 3A @ 24V
Base Type - Plug In Relay Square
Number of Pins - Relay 10
Contact Form - Relay DPDT
Mounting - Relay Plug In
HP @ 120V 1/6 hp
Status Indicator None
Socket Mfr. No. PYF14AE
Socket Code G
Contact Material Silver Nickel
Contact Rating 3A @ 220VAC/24VDC
Pins 10
Push To Test Manual
Item Latching Relay
Contact Form DPDT
Base Type Square
Standards CE Certified, CSA Certified, IMQ, UL Listed, VDE Approved
Power Consumption - Relay 0.9 VA
HP @ 240V 1/6 hp
Pin Shape Flat
Minimum Operating Temperature -67 Degrees F
Power Consumption 0.5 VA, 0.9 VA
Number of Pins 10
Current Rating 3 A
Dielectric Strength 1,500V AC (1000V AC Between Contacts of Same Polarity and Between Set and Reset Coils)
Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V
Input Voltage 120V AC
Coil Resistance 5,400 ohm
Contact Rating (AC) 0.8 A @ 240V, 3 A @ 240V
Coil Voltage 120V AC
Push-To-Test Button Manual Push Test Button
Series MY Series
Environmental Protection Enclosed
Weight 1.23 oz
Electrical Connection Type Tab
Motor Rated Yes
Mounting Style Plug-In
Frequency 50/60 Hz
Relay Mounting Style Socket
Horsepower @ 120V AC 1/6 hp
Coil Voltage Type AC
Maximum Switching Voltage 125V DC, 250V AC
Resistance Properties Shock-Resistant, Vibration-Resistant
Base Shape Square
Compatible with Manufacturer Model Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
Socket Code Configurator Socket / Square / 10 / 0.102 in
Insulation Resistance 100 megaohm
Electrical Operating Durability 200,000
Response Time 15 msec
Maximum Operating Temperature 140 Degrees F
Push-To-Test Method Manual
Horsepower @ 240V AC 1/6 hp
Electrical Connection Quick-Connect
Sealing Enclosed
Mechanical Operating Durability 100,000,000
Compatible Manufacturer Part Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
Compatible with Manufacturer Part Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
Compatible with Manufacturer Model Number [NEW] PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
Compatible Manufacturer Model Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
For Use with Mfr. Model Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E
For Use With Mfr. Model Number PY14, PY14-02, PY14-Y1, PY14QN, PYF14-N, PYF14A, PYF14A-E

Description

Latching Relay, Base Shape Square, Coil Voltage 120V AC, Contact Form DPDT, Current Rating 3 A, Electrical Connection Quick-Connect, Flat Pin Width 0.102 in, Number of Pins 10, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 0.8 A @ 240V, 3 A @ 240V, Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in, Body Width 0.85 in
