  11. Pneumatic Ball Vibrator, Force 242 Lb

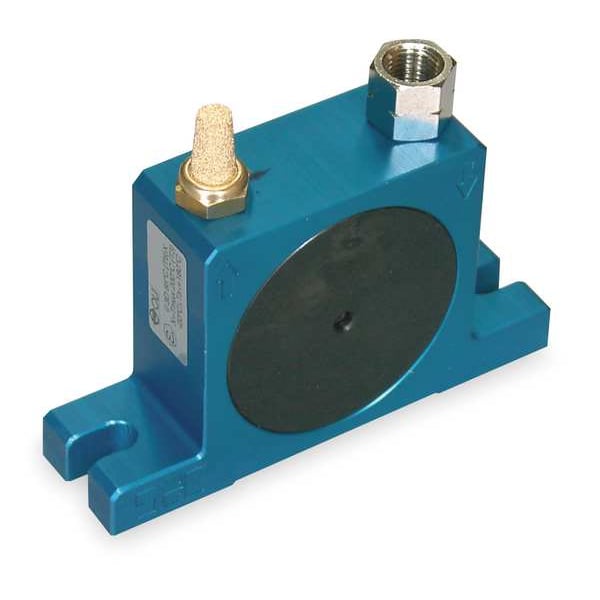

Dayton Pneumatic Ball Vibrator, Force 242 Lb 1DYN9 - main

Pneumatic Ball Vibrator, Force 242 Lb

  • Mfr # 1DYN9

  • Zoro # G1210885

product price: $152.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Ball
Force Rating
242 lb
CFM @ 80 PSI
9.9
Speed @ 60 psi
17,000 VPM
Speed @ 80 psi
19,500 VPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYN9
Zoro #
G1210885
UPC #
190735137185
Country of Origin
Italy

Dimensions

Overall Length
4-1/2"
Overall Width
2"
Overall Height
2-1/2"
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in

Details

Item
Pneumatic Vibrator
Vibrator Type
Ball
Force Rating
242 lb
CFM @ 80 PSI
9.9
Speed @ 60 psi
17,000 VPM
Speed @ 80 psi
19,500 VPM
Bin Weight Capacity
2420 lb
dB @ 80 psi
76
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Duty
Continuous
Standards
CE certified
Mounting Plate
No
Max. Pressure
90 psi
Muffler
Included
Housing Material
Aluminum
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Mounting
Any Position
Max. Temp.
360 Degrees F
Mount Plate Required
No
Vibration Speeds @ PSI
17,000 vpm @ 60 psi, 19,500 vpm @ 80 psi
Outlet Connection Type
BSPP
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
390 Degrees F
Force @ PSI
176 lbf @ 60 psi, 242 lbf @ 87 psi, 99 lbf @ 30 psi
Sound Level
76 dBA
Vibration Speed @ 60 psi
17,000 vpm
Mount Type
Any Position
Maximum Inlet Pressure
90 psi
Air Flow Rate
4.3 cfm @ 30 psi, 7.1 cfm @ 60 psi, 9.9 cfm @ 87 psi
Maximum Vibration Speed
19,500 vpm
Maximum Bin Weight Capacity
2,420 lb
Mount Plate Included
No
Inlet Connection Type
NPT
Force @ 60 psi
176 lbf
Pneumatic Vibrator Type
Ball
Mounting Orientation
Any Position
Duty Cycle
Continuous
Vibration Speed @ 80 psi
19,500 vpm
Maximum Force
242 lbf

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 4.3 cfm @ 30 psi, 7.1 cfm @ 60 psi, 9.9 cfm @ 87 psi, Maximum Force 242 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 19,500 vpm, Maximum Bin Weight Capacity 2,420 lb, Overall Height 2.56 in, Overall Length 4.5 in, Overall Width 1.1 in, Sound Level 76 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball
