  11. Pneumatic Turbine Vibrator, Force 659 Lb

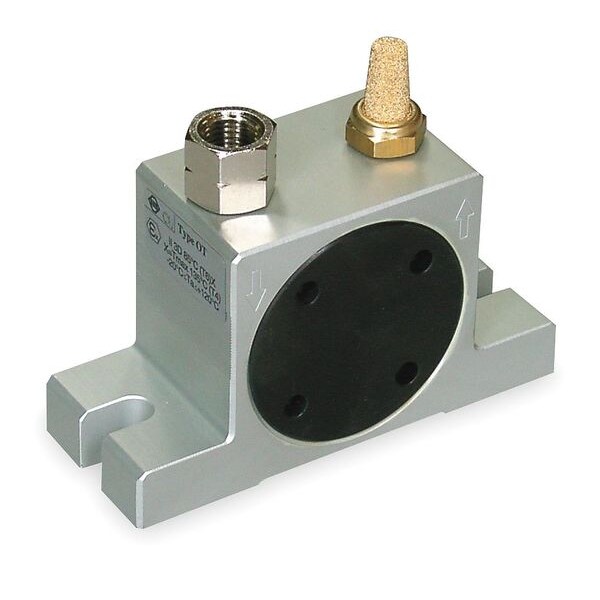

Dayton Pneumatic Turbine Vibrator, Force 659 Lb 1DYP5 - main

Pneumatic Turbine Vibrator, Force 659 Lb

  • Mfr # 1DYP5

  • Zoro # G0440517

product price: $240.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
659 lb.
CFM @ 80 PSI
10.1
Speed @ 60 psi
28,500 VPM
Speed @ 80 psi
31,000 VPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP5
Zoro #
G0440517
UPC #
190735137239
Country of Origin
Italy

Dimensions

Overall Length
4-1/2"
Overall Width
1-5/8"
Overall Height
2-1/2"
Mount Hole Size
0.4
Inlet Connection Size
1/4 in
Outlet Connection Size
1/4 in

Details

Vibrator Type
Turbine
Item
Pneumatic Vibrator
Force Rating
659 lb.
CFM @ 80 PSI
10.1
Speed @ 60 psi
28,500 VPM
Speed @ 80 psi
31,000 VPM
Bin Weight Capacity
6590 lb.
dB @ 80 psi
61
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Muffler
Included
Max. Temp.
250 Degrees F
Housing Material
Aluminum
Max. Pressure
90 psi
Duty
Continuous
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Mounting
Any Position
Mounting Plate
No
Minimum Operating Temperature
-4 Degrees F
Maximum Force
659 lbf
Outlet Connection Type
BSPP
Mount Plate Included
No
Mount Plate Required
No
Air Flow Rate
10.1 cfm @ 87 psi, 4.3 cfm @ 30 psi, 7.2 cfm @ 60 psi
Inlet Connection Type
NPT
Pneumatic Vibrator Type
Turbine
Mounting Orientation
Any Position
Maximum Bin Weight Capacity
6,590 lb
Force @ 60 psi
579 lbf
Mount Type
Any Position
Maximum Inlet Pressure
90 psi
Duty Cycle
Continuous
Maximum Operating Temperature
248 Degrees F
Maximum Vibration Speed
31,000 vpm
Sound Level
61 dBA
Force @ PSI
444 lbf @ 30 psi, 579 lbf @ 60 psi, 659 lbf @ 87 psi
Vibration Speeds @ PSI
28,500 @ 60 psi, 31,000 vpm @ 80 psi
Vibration Speed @ 80 psi
31,000 vpm
Vibration Speed @ 60 psi
28,500 vpm

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 10.1 cfm @ 87 psi, 4.3 cfm @ 30 psi, 7.2 cfm @ 60 psi, Maximum Force 659 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 31,000 vpm, Maximum Bin Weight Capacity 6,590 lb, Overall Height 2.56 in, Overall Length 4.5 in, Overall Width 1.65 in, Sound Level 61 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
