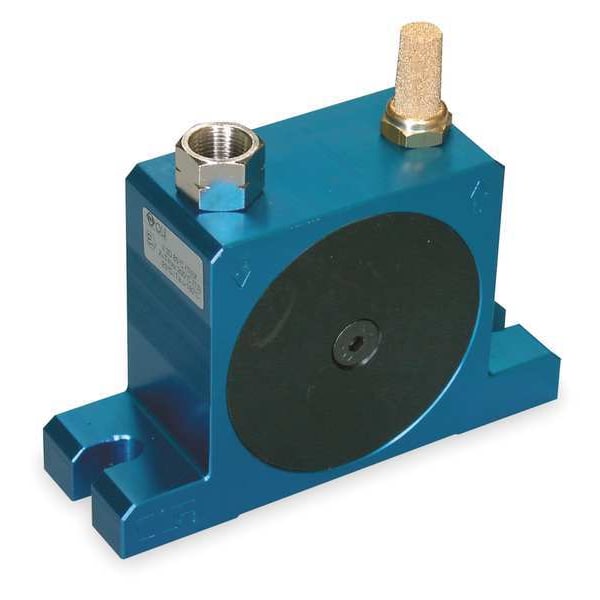

Dayton Pneumatic Ball Vibrator, Force 891 Lb 1DYP4 - main

Pneumatic Ball Vibrator, Force 891 Lb

  • Mfr # 1DYP4

  • Zoro # G0485922

product price: $220.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Ball
Force Rating
891 lb
CFM @ 80 PSI
23.8
Speed @ 60 psi
9000 VPM
Overall Length
6-1/4"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP4
Zoro #
G0485922
UPC #
190735137222
Country of Origin
Italy

Dimensions

Overall Length
6-1/4"
Overall Width
3-1/8"
Overall Height
4"
Outlet Connection Size
3/8 in
Inlet Connection Size
3/8 in

Details

Vibrator Type
Ball
Item
Pneumatic Vibrator
Force Rating
891 lb
CFM @ 80 PSI
23.8
Speed @ 60 psi
9000 VPM
Speed @ 80 psi
10,000 VPM
Bin Weight Capacity
8910 lb
dB @ 80 psi
86
Inlet Port
3/8" NPT
Outlet Port
3/8" BSPP
Ball Material
Hardened Steel
Duty
Continuous
Max. Temp.
360 Degrees F
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Mounting Plate
No
Muffler
Included
Mounting
Any Position
Max. Pressure
90 psi
Standards
CE certified
Housing Material
Aluminum
Sound Level
86 dBA
Maximum Bin Weight Capacity
8,910 lb
Force @ PSI
453 lbf @ 30 psi, 693 lbf @ 60 psi, 891 lbf @ 87 psi
Force @ 60 psi
693 lbf
Maximum Force
891 lbf
Maximum Vibration Speed
10,000 vpm
Mounting Orientation
Any Position
Maximum Inlet Pressure
90 psi
Pneumatic Vibrator Type
Ball
Outlet Connection Type
BSPP
Mount Plate Included
No
Inlet Connection Type
NPT
Air Flow Rate
16.8 cfm @ 60 psi, 23.8 cfm @ 87 psi, 9.2 cfm @ 30 psi
Vibration Speed @ 80 psi
10,000 vpm
Mount Type
Any Position
Duty Cycle
Continuous
Mount Plate Required
No
Vibration Speeds @ PSI
10,000 vpm @ 80 psi, 9,000 vpm @ 60 psi
Maximum Operating Temperature
360 Degrees F
Vibration Speed @ 60 psi
9,000 vpm

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 3/8 in, Outlet Connection Type BSPP, Air Flow Rate 16.8 cfm @ 60 psi, 23.8 cfm @ 87 psi, 9.2 cfm @ 30 psi, Maximum Force 891 lbf, Inlet Connection Size 3/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 10,000 vpm, Maximum Bin Weight Capacity 8,910 lb, Overall Height 3.94 in, Overall Length 6.3 in, Overall Width 1.97 in, Sound Level 86 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Ball
