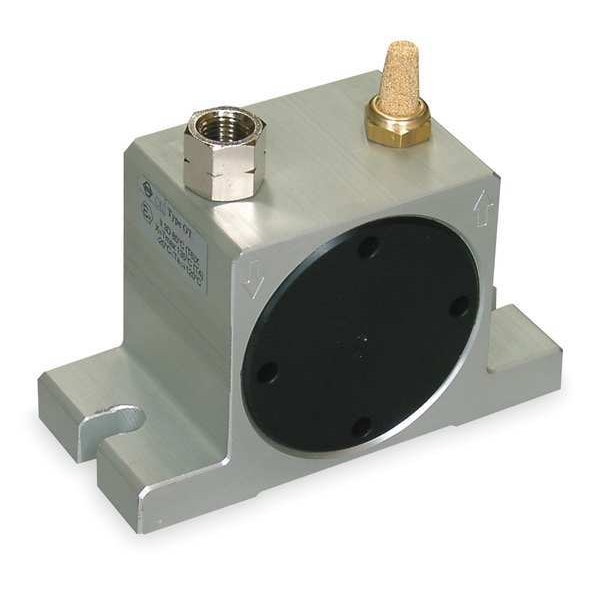

Dayton Pneumatic Turbine Vibrator, Force 1117 Lb 1DYP8 - main

Pneumatic Turbine Vibrator, Force 1117 Lb

  • Mfr # 1DYP8

  • Zoro # G2154871

product price: $300.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
1117 lb.
CFM @ 80 PSI
16.0
Speed @ 60 psi
15,500 VPM
Overall Length
5"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP8
Zoro #
G2154871
UPC #
190735137260
Country of Origin
Italy

Dimensions

Overall Length
5"
Overall Width
2-1/4"
Overall Height
3-1/8"
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in
Mount Hole Size
0.4

Details

Item
Pneumatic Vibrator
Vibrator Type
Turbine
Force Rating
1117 lb.
CFM @ 80 PSI
16.0
Speed @ 60 psi
15,500 VPM
Speed @ 80 psi
17,000 VPM
dB @ 80 psi
65
Bin Weight Capacity
11,170 lb.
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Max. Temp.
250 Degrees F
Duty
Continuous
Max. Pressure
90 psi
Muffler
Included
Housing Material
Aluminum
Mounting Plate
No
Mounting
Any Position
Pneumatic Vibrator Type
Turbine
Maximum Force
1,117 lbf
Maximum Inlet Pressure
90 psi
Inlet Connection Type
NPT
Force @ PSI
1,117 lbf @ 87 psi, 537 lbf @ 30 psi, 740 lbf @ 60 psi
Duty Cycle
Continuous
Vibration Speeds @ PSI
15,500 vpm @ 60 psi, 17,000 vpm @ 80 psi
Minimum Operating Temperature
-4 Degrees F
Maximum Vibration Speed
17,000 vpm
Vibration Speed @ 80 psi
17,000 vpm
Vibration Speed @ 60 psi
15,500 vpm
Sound Level
65 dBA
Air Flow Rate
11.2 cfm @ 60 psi, 16 cfm @ 87 psi, 6.75 cfm @ 30 psi
Mount Plate Required
No
Mount Type
Any Position
Maximum Operating Temperature
248 Degrees F
Mounting Orientation
Any Position
Maximum Bin Weight Capacity
11,170 lb
Mount Plate Included
No
Outlet Connection Type
BSPP
Force @ 60 psi
740 lbf

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 11.2 cfm @ 60 psi, 16 cfm @ 87 psi, 6.75 cfm @ 30 psi, Maximum Force 1,117 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 17,000 vpm, Maximum Bin Weight Capacity 11,170 lb, Overall Height 3.15 in, Overall Length 5.04 in, Overall Width 2.2 in, Sound Level 65 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
