  11. Pneumatic Turbine Vibrator, Force 1157 Lb

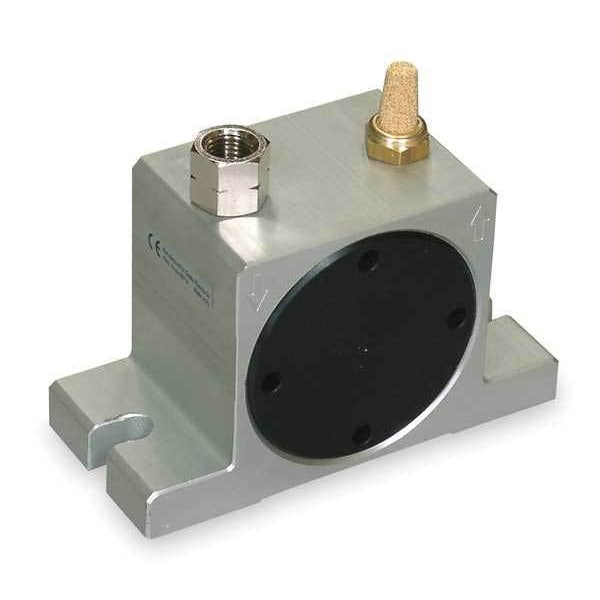

Dayton Pneumatic Turbine Vibrator, Force 1157 Lb 1DYP7 - main

Pneumatic Turbine Vibrator, Force 1157 Lb

  • Mfr # 1DYP7

  • Zoro # G1622686

product price: $293.99
/ea
Free Shipping & Returns

Key Features

Vibrator Type
Turbine
Force Rating
1157 lb
CFM @ 80 PSI
16.0
Speed @ 60 psi
19,000 VPM
Overall Length
5"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DYP7
Zoro #
G1622686
UPC #
190735137253
Country of Origin
Italy

Dimensions

Overall Length
5"
Overall Width
2-1/4"
Overall Height
3-1/8"
Mount Hole Size
0.4
Outlet Connection Size
1/4 in
Inlet Connection Size
1/4 in

Details

Vibrator Type
Turbine
Item
Pneumatic Vibrator
Force Rating
1157 lb
CFM @ 80 PSI
16.0
Speed @ 60 psi
19,000 VPM
Speed @ 80 psi
23,000 VPM
Bin Weight Capacity
11,570 lb
dB @ 80 psi
66
Inlet Port
1/4" NPT
Outlet Port
1/4" BSPP
Housing Material
Aluminum
Mounting
Any Position
Max. Temp.
250 Degrees F
Mounting Plate
No
Duty
Continuous
Application
All Types of Bins Containing Fine to Granular Materials or Packing Coarse Materials and Unjamming Parts in Conveyor Lines, Chutes and Pipes
Muffler
Included
Max. Pressure
90 psi
Inlet Connection Type
NPT
Maximum Vibration Speed
23,000 vpm
Vibration Speed @ 60 psi
19,000 vpm
Maximum Force
1,157 lbf
Maximum Operating Temperature
248 Degrees F
Pneumatic Vibrator Type
Turbine
Duty Cycle
Continuous
Maximum Inlet Pressure
90 psi
Force @ PSI
1,157 lbf @ 87 psi, 552 lbf @ 30 psi, 888 lbf @ 60 psi
Force @ 60 psi
888 lbf
Sound Level
66 dBA
Minimum Operating Temperature
-4 Degrees F
Mount Type
Any Position
Mount Plate Included
No
Mount Plate Required
No
Vibration Speed @ 80 psi
23,000 vpm
Outlet Connection Type
BSPP
Maximum Bin Weight Capacity
11,570 lb
Air Flow Rate
11.2 cfm @ 60 psi, 16 cfm @ 87 psi, 6.75 cfm @ 30 psi
Mounting Orientation
Any Position
Vibration Speeds @ PSI
19,000 vpm @ 60 psi, 23,000 vpm @ 80 psi

Description

Pneumatic Vibrator, Housing Material Aluminum, Outlet Connection Size 1/4 in, Outlet Connection Type BSPP, Air Flow Rate 11.2 cfm @ 60 psi, 16 cfm @ 87 psi, 6.75 cfm @ 30 psi, Maximum Force 1,157 lbf, Inlet Connection Size 1/4 in, Inlet Connection Type NPT, Maximum Vibration Speed 23,000 vpm, Maximum Bin Weight Capacity 11,570 lb, Overall Height 3.15 in, Overall Length 5.04 in, Overall Width 2.2 in, Sound Level 66 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine
