  6. Portable Manual Platform Lift Truck, Manual, 880 lb Load Capacity, Foot Pump Lift Control

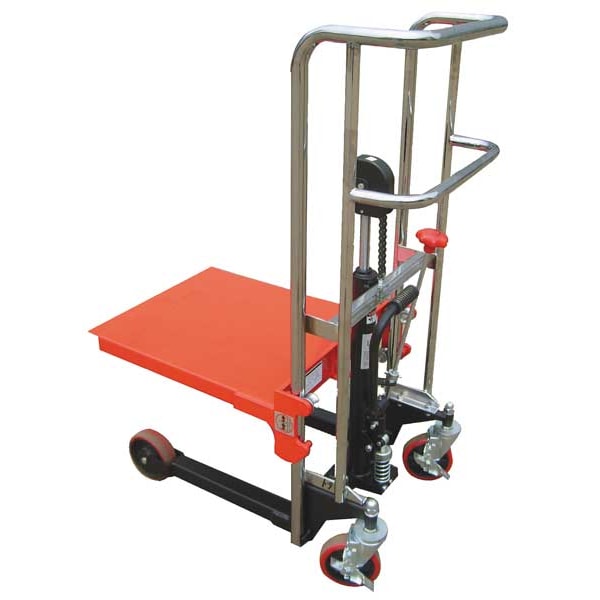

Dayton Portable Manual Platform Lift Truck, Manual, 880 lb Load Capacity, Foot Pump Lift Control 4ECW9 - main

Portable Manual Platform Lift Truck, Manual, 880 lb Load Capacity, Foot Pump Lift Control

  • Mfr # 4ECW9

  • Zoro # G3337811

product price:  $792.99
/ea
Additional $35.00 delivery surcharge applies per item.
See details

Key Features

Overall Height
52 3/8 in
Overall Length
40 in
Overall Width
23 3/16 in
Color
Black, Orange
Load Capacity
880 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4ECW9
Zoro #
G3337811
UPC #
190735323168
Country of Origin
China

Dimensions

Overall Height
52 3/8 in
Overall Length
40 in
Overall Width
23 3/16 in
Platform Length
25 5/8 in
Base Legs Inside Dia.
14"
Front Caster Dia.
3 in
Lifting Height Max.
47 in
Base Legs Outside Dia.
19-1/2"
Platform Width
21 1/2 in
Front Wheel Dia.
5 7/8 in
Lifting Height Min.
8 in
Minimum Lifting Height
8 in
Overall Height with Platform Raised
52 3/8 in
Platform LxW
25 5/8 in x 21 1/2 in
Maximum Lifting Height
47 in
Lifting Height Range
8 in to 47 in
Overall LxWxH
40 in x 23 3/16 in x 52 3/8 in
Base Inside Width
14 in
Base Outside Width
23 1/4 in
Axle-Mounted Wheel Dia.
5 7/8 in
Overall Height with Platform Lowered
52 3/8 in
Caster Wheel Dia.
5 7/8 in

Details

Color
Black, Orange
Load Capacity
880 lb
Item
Portable Manual Platform Lift Truck
Handle Type
Straight
Lift Mechanism
Hydraulic
Includes
Platform
Load Center
13 1/2 in
Base Legs Outside Dim.
19 1/2 in
Invertible Forks
No
Base Legs Inside Dim.
14 in
Lift Control
Foot Pump
Caster Wheel Type
Tread on Core
Lift Mobility
Manual Lift, Manual Push
Frame Material
Steel
Lift Base Style
Fixed Straddle
Powered By
Foot Pump
Caster Wheel/Tread Material
Rubber
Non-Marking Casters/Wheels
No
Operation
Manual
Axle-Mounted Wheel Type
Tread on Core
Wheel Configuration
(2) Swivel with Brake, (2) Axle-Mounted
Non-Marking Axle-Mounted Wheels
No
Base Style
Fixed
Frame Type
Flat Back
Brake Type
Side Pedal Brake
Platform Material
Steel
Base Material
Steel
Frame Finish
Powder Coated
Axle-Mounted Wheel/Tread Material
Rubber

Description

Platform Lift Truck, Load Capacity 880 lb, Minimum Lifting Height 8 in, Maximum Lifting Height 47 in, Platform Length 25 5/8 in, Platform Width 21 1/2 in, Lift Control Foot Pump, Lift Mechanism Hydraulic, Base Style Fixed, Base Inside Width 14 in, Base Outside Width 23 1/4 in, Frame Finish Powder Coated, Frame Type Flat Back, Load Center 13 1/2 in, Overall Height with Platform Raised 52 3/8 in, Overall Length 40 in, Overall Width 23 3/16 in, Frame Material Steel, Platform Material Steel
