Shop All Cylinder Trucks
Saftcart

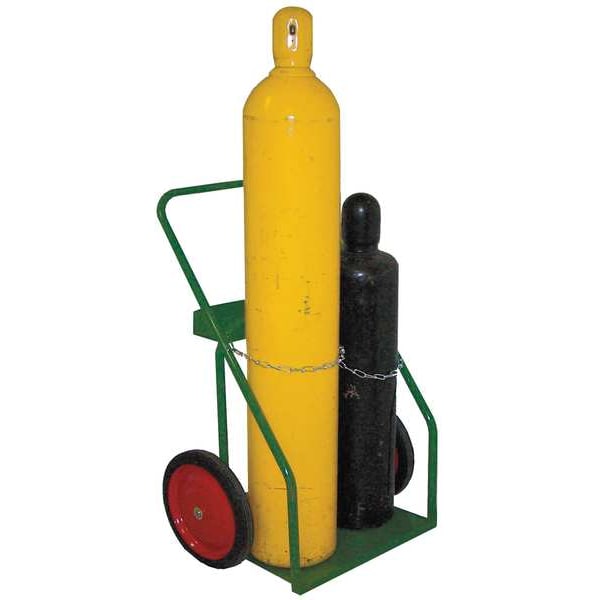

Welding Cylinder Truck, 2 Cyl, 400 lb.

product price: $320.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Overall Height 42 in
  • Overall Width 21 in
  • Material Steel
  • Color Green
  • Load Capacity 400 lb
See all product information

Product Information

Dimensions

Overall Height 42 in
Overall Width 21 in
Wheel Diameter 14 in
Base Plate Dimensions 12 x 21 in
Tool Tray Width 19 in
Tool Tray Height 28 1/2 in
Overall Depth 6 1/2 in
Max. Tank Dia. Oxygen 9 1/2 in
Wheel Width 1 3/4 in
Max. Tank Dia. Acetylene 6 1/2 in
Handle Height 42 in
Height 42"
Width 21"
Nose Plate Width 21 in
Overall HxWxD 42 in x 21 in x 6 1/2 in
Overall Height - Cylinder Lowered 42 in
Axle-Mounted Wheel Width 1 3/4 in
For Maximum Container Diameter 9 1/2 in
Axle Dia. 3/4 in
Securing Mechanism Height 26 in
Overall Height - Cylinder Raised 62 in
Deck Height 1/2 in
Axle-Mounted Wheel Dia. 14 in
Nose Plate Depth 12 in
For Maximum Cylinder Diameter 9 1/2 in
Nose Plate WxD 12 in x 21 in

Details

Material Steel
Color Green
Load Capacity 400 lb
Item Welding Cylinder Hand Truck
Wheel Type Semi-Pneumatic
Handle Type Continuous Frame Flow-Back
Assembled Yes
For Use With Welding Cylinders and Torches
Includes Steel Band to Cylinder, Toolbox
Cylinder Capacity 2
Hand Truck Handle Type Continuous Frame Flow-Back
Finish Powder Coated
Wheel Bearings Ball
Standards 29 CFR 1926.350(a)(10)
Non-Marking Axle-Mounted Wheels No
For Surface Type Concrete, Grass, Wood
Securing Mechanism Chain
Caster/Wheel Configuration (2) Axle-Mounted
Features Designed To Carry a Large Oxygen and a Medium Acetylene Cylinder
Nose Plate Type Solid Straight
Includes Foot Assist Without Foot Assist
Hub Position Offset
Includes Lift Ring Without Lift Ring
Includes Firewall No
Includes Stair Climber Without Stair Climber
Nose Plate Profile Standard
Axle-Mounted Wheel/Tread Material Rubber
Frame Type Rounded Back
Frame Material Steel
Axle-Mounted Wheel Bearings Ball Bearing
Frame Finish Powder Coated
Nose Plate Material Steel
Cylinder Orientation Side by Side
Weight 43 lb
Nose Plate Thickness 3/32 in
Axle-Mounted Wheel Type Semipneumatic
Compatible with Product Type Welding Cylinders and Torches
Brake Type No Caster Brake
Caster/Wheel Mounting Location 2-Wheel
Includes Lever Pushoff Without Lever Pushoff
Type Standard

Description

2, Overall Height 42 in, Overall Width 21 in, Overall Depth 6 1/2 in, Load Capacity 400 lb, Securing Mechanism Chain, Caster/Wheel Configuration (2) Axle-Mounted, Axle-Mounted Wheel Type Semipneumatic, Axle-Mounted Wheel/Tread Material Rubber, Axle-Mounted Wheel Dia. 14 in, Handle Type Continuous Frame Flow-Back, Includes Firewall No, Includes Foot Assist Without Foot Assist, Includes Lever Pushoff Without Lever Pushoff, Includes Lift Ring Without Lift Ring, Frame Type Rounded Back
