- MFR #
- 45MW22
- Zoro #
- G5578959
- UPC #
- 190735937761
- Country of Origin
- India
- Item

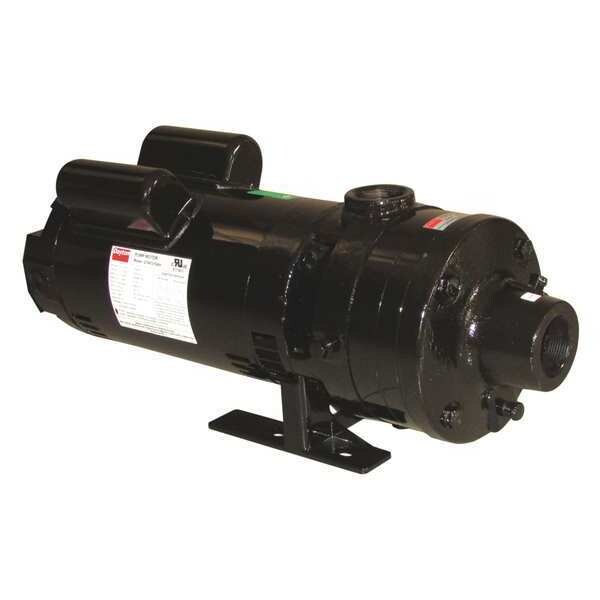

- Booster Pump
- Booster Pump Type
- Booster Pump
- HP - Pumps
- 1 1/2 hp
- Voltage - Pumps
- 240V AC
- Phase - Pumps
- 1
- Number of Stages - Pumps
- 2
- Max. Pressure - Pumps
- 65 psi
- Housing Material - Pumps
- Cast Iron
- Motor Enclosure - Pumps
- Open Dripproof
- Best Efficiency GPM @ PSI
- 25 @ 56
- GPM @ 35 PSI
- 32
- Duty
- Continuous
- Type
- Booster
- GPM @ 60 PSI
- 10
- Max. PSI Boost @ 2-10 GPM
- 61
- Agency Compliance
- cULus
- Motor RPM
- 3450
- Max. PSI Boost @ 30 GPM
- 49
- Outlet
- 1-1/4"
- HP
- 1-1/2
- Inlet
- 1-1/2"
- Impeller Type
- Closed
- GPM @ 30 PSI
- 35
- Stages
- 2
- Max. Case Pressure
- 160 psi
- Motor Enclosure
- Open Dripproof (ODP)
- Seal Material
- Buna-N/Carbon/Silicone Carbide/Stainless Steel
- Bearing Type
- Double Sealed
- Includes
- Manual
- Max. PSI Boost @ 20 GPM
- 60
- Phase
- Single
- Voltage
- 230
- Impeller Material
- Stainless Steel
- Amps
- 8.4 A
- GPM @ 40 PSI
- 29
- Housing Material
- Cast iron
- Max. Pressure
- 65 psi
- For Use With
- Nonflammable Liquids Compatible with Pump Component Materials
- Inlet (In.)
- 1-1/2
- GPM @ 50 PSI
- 20
- Hz
- 60
- Motor Ambient Temp. Rating
- 65 Degrees C
- Frame
- 56J
- Wetted Materials
- Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel
- GPM @ 25 PSI
- 37
- Motor Type
- Capacitor-Start/Run
- Standards
- cULus Listed
- Motor Ambient Temperature (Minimum)
- 65 Degrees F
- Suction Lift (Maximum)
- 25 ft
- Horsepower
- 1 1/2 hp
- Wetted Material
- Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
- Motor Frame Designation
- 56J NEMA
- Frequency
- 60 Hz
- Motor Ambient Temperature (Maximum)
- 149 Degrees F
- Compatible with Media Type
- Water
- Nameplate Voltage
- 230V AC
- Pressure Boost (Maximum)
- 61 psi
- For Use With Potable Systems
- No
- Shut Off Pressure (Maximum)
- 65 psi
- Pump Housing Material
- Cast Iron
- Priming
- Manual
- Number of Stages
- 2
- Impeller Design
- Closed
- Intake Type
- NPT
- Mounting Orientation
- Horizontal
- Duty Cycle
- Continuous
- Pumping Application
- General Service in Farm, Liquid Transfer, Pressure Boosting, Water Supply
- Maximum Media Temperature
- 200 Degrees F
- Flow Rate @ 40 psi
- 29 gpm
- Best Efficiency Pressure
- 56 psi
- Case Pressure (Maximum)
- 160 psi
- Maximum RPM
- 3,450 RPM
- Flow Rate @ 50 psi
- 20 gpm
- Discharge Type
- NPT
- Flow Rate @ 30 psi
- 35 gpm
- Flow Rate @ 60 psi
- 10 gpm
- Motor Enclosure Design
- Open Drip Proof
- Best Efficiency Flow
- 10 gpm
- Pressure Boost - Maximum
- 61 psi
- Motor Design
- Capacitor-Start/Run
- Motor Ambient Temperature - Minimum
- 65 Degrees F
- Power Source
- Corded Electric
- Inlet Standard
- NPT
- Inlet Gender
- Female
- Case Pressure - Maximum
- 160 psi
- Media Temperature - Maximum
- 200 Degrees F
- Pump Casing Material
- Cast Iron
- Revolutions Per Minute - Maximum
- 3,450 RPM
- Media Temperature - Minimum
- 0 Degrees F
- Suction Lift - Maximum
- 25 ft
- Discharge Standard
- NPT
- Motor Ambient Temperature - Maximum
- 149 Degrees F
- Shut Off Pressure - Maximum
- 65 psi
- Full Load Current
- 8.4 A
- Installation
- Floor Standing
- Power Source - TS Only
- Corded Electric
- Power Source - old
- Corded Electric
