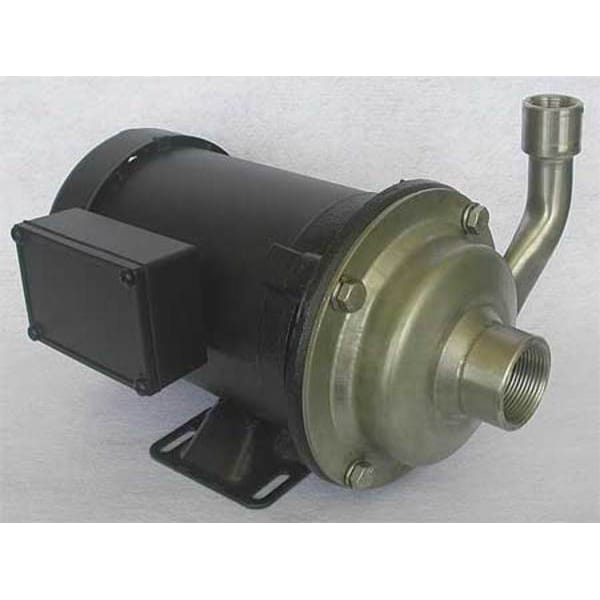

Dayton Pump, 1/2 HP, 208-230/460V, 1.8/0.9 Amp 4JMW8 - main

Pump, 1/2 HP, 208-230/460V, 1.8/0.9 Amp

  • Mfr # 4JMW8

  • Zoro # G3442512

product price: $789.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
38 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4JMW8
Zoro #
G3442512
UPC #
190735326725
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Length
12 5/8 in
Width
9 1/4 in
Overall Width
9.3 in
Overall Height
7.9 in
Overall Length
12.6 in
Intake Pipe Size
3/4 in
Discharge Pipe Size
3/4 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in

Details

HP
1/2 hp
Item
Chemical Resistant Centrifugal Pump
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
38 gpm @ 5 ft
Max. Head
50 ft
Best Efficiency GPM @ Head
28 gpm @ 22 ft
Inlet
3/4 in NPT
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Impeller Type
Closed
GPM of Water @ 30 Ft. of Head
20
NEMA/IEC Frame
56J
GPM of Water @ 10 Ft. of Head
34
Hz
60
GPM of Water @ 20 Ft. of Head
29
GPM of Water @ 5 Ft. of Head
38
Impeller Material
304 Stainless Steel
Max. Specific Gravity
1.0
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Amps
3.0-2.8/1.4
Best Efficiency Range GPM @ Head
24 to 33 gpm @ 28 to 12 ft
Max. Case Pressure
150 psi
Drain Plug
No
Inlet Pressure
128 psi
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
Duty
Continuous
GPM of Water @ 25 Ft. of Head
26
GPM of Water @ 40 Ft. of Head
5
Bearing Type
Ball
Min. GPM @ Head
5 gpm @ 40 ft
Port Rotation
90 Degrees Increments
Screw Material
Stainless Steel
Agency Compliance
CUS
Includes
Manual
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Service Factor
1.15
Max. Liquid Temp.
200 Degrees F
Motor RPM
3,450 RPM
Max. Fluid Viscosity
31 SUS
GPM of Water @ 15 Ft. of Head
32
Shaft Material
Stainless Steel
Seal Type
Mechanical
Motor Type
Three-Phase Induction
Volute Material
304 Stainless Steel
Standards
CUS
Flow Rate @ 15 ft of Head (Maximum)
32 gpm
Media Temperature (Maximum)
200 Degrees F
Intake Pipe Type
NPT
Case Pressure (Maximum)
150 psi
Nameplate Voltage
208-230/460V AC
Motor Speed (Maximum)
3,450 RPM
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Viscosity (Maximum)
31 SUS
Specific Gravity (Maximum)
1
Flow Rate @ 20 ft of Head (Maximum)
29 gpm
Flow Rate @ 25 ft of Head (Maximum)
26 gpm
Best Efficiency Head
22 ft
Feet of Head (Maximum)
50 ft
Impeller Design
Closed
Best Efficiency Flow
28 gpm
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
20 gpm
Ambient Temperature (Minimum)
40 Degrees F
Flow Rate (Maximum)
38 gpm
Flow Rate @ 10 ft of Head (Maximum)
34 gpm
Shut Off Pressure (Maximum)
150 psi
Compatible Motor Frame
56J NEMA
Current
3.0 to 2.8 or 1.4 A
Horsepower (Maximum)
1/2 hp
Discharge Rotation
90 Degrees Increments
Discharge Pipe Type
NPT
Media Temperature (Minimum)
40 Degrees F
Priming
Manual
Duty Cycle
Continuous
Frequency
60 Hz
Flow Rate @ 40 ft of Head (Maximum)
5 gpm
Flow Rate @ 5 ft of Head (Maximum)
35.5 gpm
For Use With Potable Systems
No
Flow Rate @ 1 ft of Head (Maximum)
36.5 gpm
Flow Rate (Minimum)
5 gpm

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 38 gpm, Horsepower (Maximum) 1/2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 34 gpm
