Shop LITTLE GIANT PUMP

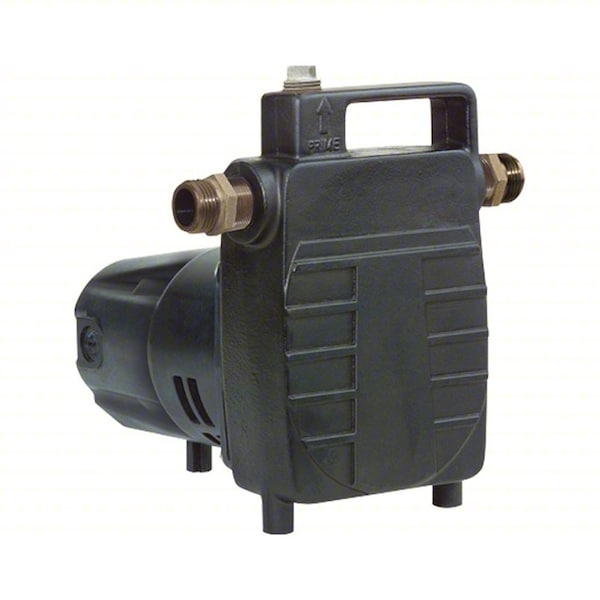

Centrifugal Pump, 115V AC, 1/2 hp, 10ft

  • Mfr # UPSP-5

  • Zoro # G116556016

product price:  $393.30
/ea
Free Shipping & Returns

Key Features

Overall Height
9 in
Impeller Material
Thermoplastic
Series
UPSP-5
Compatible with Media Type
Clear Water Only
Cord Length
10 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
UPSP-5
Zoro #
G116556016
UPC #
0010121002395
Country of Origin
China

Dimensions

Overall Height
9 in
Cord Length
10 ft
Intake Size
3/4 in
Compatible Discharge Pipe Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Shaft Outer Diameter
2/5 in
Solid Diameter (Maximum)
0 in
Impeller Diameter
3 2/25 in

Details

Item
Centrifugal Pump
Impeller Material
Thermoplastic
Series
UPSP-5
Compatible with Media Type
Clear Water Only
Pump Housing Material
Cast Iron
Maximum Feet of Head
145 ft
Priming
Self-Priming
Intake Type
Hose
Horsepower
1/2 hp
Discharge Type
NPT
Nameplate Voltage
115V AC
Flow Rate @ 10 ft of Head (Maximum)
25 gpm
Standards
CSA Certified
Maximum Viscosity
1 cps
Feet of Head (Maximum)
145 ft
Flow Rate @ 10 ft of Head - Maximum
1,600 gph
Inlet Standard
GHT
Chemical Compatibility
Water
Viscosity (Maximum)
37 SUS
Media Temperature - Minimum
33 Degrees F
Discharge Rotation Increments
0 Degrees
Best Efficiency Flow
1,300 gph
Pumping Application
Dewatering
Phase
Single
Discharge Standard
GHT
Inlet Position
Center
Frequency
60 Hz
Discharge Orientation
Side
Full Load Current
10.0 A
Flow Rate @ 5 ft of Head (Maximum)
1,600 gph
Flow Rate @ 40 ft of Head (Maximum)
1,400 gph
Volute Material
Cast Iron
Motor Enclosure
Open Drip Proof
NPSHr
1 ft
Thermal Overload Protection
Yes
Duty Cycle
Continuous
Case Pressure - Maximum
75 psi
Best Efficiency Head
50 ft
Pump Design
Inline
Suction Lift - Maximum
25 ft
Drive Coupling Type
No Coupling
Number of Stages
1
Shaft Seal Material
Nitrile
Flow Rate @ 20 ft of Head (Maximum)
1,600 gph
Shaft Seal Type
Mechanical
Shut Off Pressure - Maximum
62.8 psi
Hazardous Location Class
Not Rated
Flow Rate @ 15 ft of Head (Maximum)
1,600 gph
Mounting Orientation
Horizontal
Flow Rate @ 50 ft of Head (Maximum)
1,300 gph
Shaft Material
Steel
Flow Rate @ 30 ft of Head (Maximum)
1,500 gph
Media Temperature - Maximum
140 Degrees F
Flow Rate (Maximum)
1,600 gph

Description

Centrifugal Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 1/2 hp, Nameplate Voltage 115V AC, Flow Rate @ 40 ft of Head (Maximum) 1,400 gph, Maximum Feet of Head 145 ft, Intake Type Hose, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Open Drip Proof, Flow Rate @ 5 ft of Head (Maximum) 1,600 gph, Flow Rate @ 10 ft of Head (Maximum) 25 gpm, Flow Rate @ 15 ft of Head (Maximum) 1,600 gph, Flow Rate @ 20 ft of Head (Maximum) 1,600 gph
