Shop DAYTON

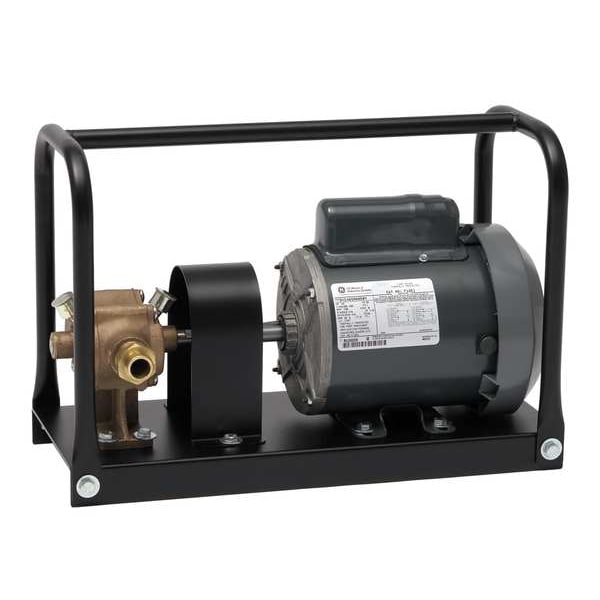

Pump, 1/2HP, 115/208-230V, 8.8/4.4-4.4 Amp

  • Mfr # 6KHN7

  • Zoro # G5661765

product price:
$
1,636.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Voltage
115/230
Amps
8.8/4.4
Motor Enclosure
Totally Enclosed Fan Cooled
NEMA Motor Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6KHN7
Zoro #
G5661765
UPC #
190735366899
Country of Origin
United States

Dimensions

Width (In.)
9 in
Length (In.)
20 in
Height (In.)
13 1/2 in
Cord Length
8 ft
Overall Width
9 in
Overall Height
13.5 in
Overall Length
20 in
Media Intake Connection Size
1 in
Discharge Connection Size
1 in
Shaft Outer Diameter
5/8 in
Inlet External Diameter
1 in
Discharge External Diameter
1 in
Wire Rope Length
20 in
Length
20 in

Details

Item
Utility Pump
HP
1/2 hp
Voltage
115/230
Amps
8.8/4.4
Motor Enclosure
Totally Enclosed Fan Cooled
NEMA Motor Frame
56
Inlet/Outlet (In.)
1
Max. Head (Ft.)
70 ft
Max. Pressure (PSI)
30 psi
Motor Type
Capacitor-Start
Type
Self-Priming Flexible Impeller
Max. SSU @ 1725 RPM
500 SUS
GPM of Water @ 20 Ft. of Head
16 gpm
RPM
1,725 RPM
GPM of Water @ 30 Ft. of Head
11 gpm
Seal
Grease
Suction Lift (Ft.)
18
GPM of Water @ 23 Ft. of Head
14 gpm
Includes
Hose Adapters
Self-Priming
Yes
Max. Viscosity
500 SUS
Shaft Material
Stainless Steel
Temp. Range (F)
180
Impeller Material
Epichlorohydrin
GPM of Water @ 40 Ft. of Head
7 gpm
Application
Chemical Transfer, Water
Characteristics
Bronze
GPM of Water @ 0 Ft. of Head
30 gpm
GPM of Water @ 10 Ft. of Head
25 gpm
Prime in Feet
18
Housing Material
Bronze
GPM of Water @ 60 Ft. of Head
1 gpm
GPM of Water @ 11 Ft. of Head
24 gpm
Suction Lift - Maximum
18 ft
Current
8.8 A
Flow Rate @ 20 ft of Head - Maximum
16 gpm
Flow Rate @ 40 ft of Head - Maximum
7 gpm
Nameplate Voltage
115/230V AC
Horsepower - Maximum
1/2 hp
Motor Speed - Maximum
1,725 RPM
Flow Rate @ 60 ft of Head - Maximum
1 gpm
Flow Rate @ 10 ft of Head - Maximum
25 gpm
Operating Pressure - Maximum
30 psi
Media Intake Connection Type
NPT
Compatible Motor Frame
56
Discharge Connection Type
NPT
Priming
Self-Priming
Viscosity - Maximum
500 SUS
Flow Rate @ 30 ft of Head - Maximum
11 gpm
Feet of Head - Maximum
70 ft
Phase
Single
Media Temperature - Maximum
180 Degrees F
Frequency
60 Hz
Discharge External Standard
NPT
Discharge External Gender
Male
Inlet External Gender
Male
Inlet External Standard
NPT

Description

Utility Pump, Housing Material Bronze, Horsepower - Maximum 1/2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 ft of Head - Maximum 25 gpm, Viscosity - Maximum 500 SUS, Feet of Head - Maximum 70 ft, Discharge Connection Size 1 in, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Impeller Material Epichlorohydrin, Discharge Connection Type NPT, Cord Length 8 ft, Priming Self-Priming, Operating Pressure - Maximum 30 psi, Suction Lift - Maximum 18 ft
