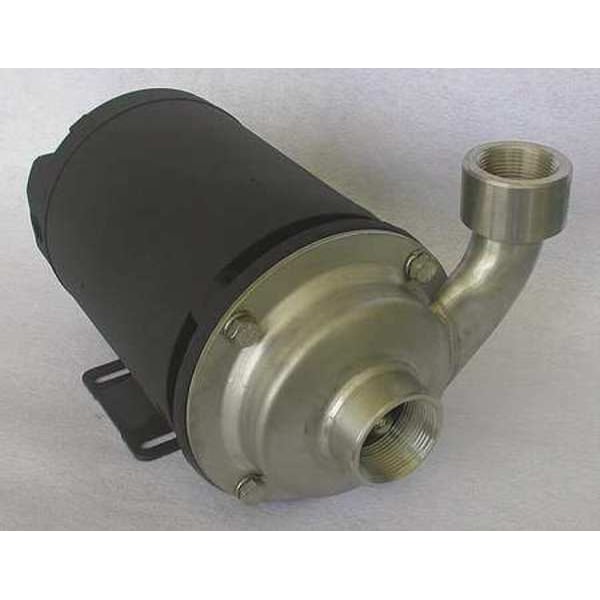

Dayton
Pump, 2 HP, 230/460V, 8.4/4.2 Amp
Mfr # 4JMW3
Zoro # G2264324
Free Shipping & Returns
$849.99
Item successfully saved to ''
Free Shipping on orders over $50
after youÂ
Free 30-Day Returns
Key Features
- HP 2 hp
- Housing Material 304 Stainless Steel
- Phase Three
- Voltage 230/460
- Max. GPM @ Head 130 gpm @ 5 ft
Customers Also Purchased
- Brand Dayton
-
MFR #
4JMW3
-
Zoro #
G2264324
- UPC # 190735326671
- Country of Origin China
- Category Chemical-Resistant Pumps
Dimensions
Height | 7 3/4 in |
Max. Dia. Solids | 1/8 in |
Manufacturers Warranty Length | 1 yr |
Width | 8 9/16 in |
Length | 14 3/4 in |
Overall Width | 8.6 in |
Overall Length | 14.8 in |
Overall Height | 7.8 in |
Intake Pipe Size | 2 in |
Shaft Outer Diameter | 7/16 in |
Cord Length | Not Applicable |
Discharge Pipe Size | 1 1/2 in |
Solid Diameter (Maximum) | 0.13 in |
Details
Item | Chemical Resistant Centrifugal Pump |
HP | 2 hp |
Housing Material | 304 Stainless Steel |
Phase | Three |
Voltage | 230/460 |
Max. GPM @ Head | 130 gpm @ 5 ft |
Max. Head | 68 ft |
Best Efficiency GPM @ Head | 55 gpm @ 50 ft |
Inlet | 2 in NPT |
Outlet | 1-1/2 in NPT |
Motor Enclosure | Open Dripproof |
Impeller Material | 304 Stainless Steel |
GPM of Water @ 30 Ft. of Head | 92 |
NEMA/IEC Frame | 56J |
Min. GPM @ Head | 24 gpm @ 60 ft |
Application | Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating |
Includes | Manual |
Seal Type | Mechanical |
Wetted Materials | 304 Stainless Steel, Carbon, Ceramic, Viton |
GPM of Water @ 20 Ft. of Head | 109 |
Agency Compliance | CUS |
Max. Liquid Temp. | 200 Degrees F |
GPM of Water @ 5 Ft. of Head | 130 |
GPM of Water @ 50 Ft. of Head | 55 |
GPM of Water @ 10 Ft. of Head | 114 |
Port Rotation | 90 Degrees Increments |
Screw Material | Stainless Steel |
Max. Specific Gravity | 1.0 |
Duty | Continuous |
Inlet Pressure | 120 psi |
Impeller Type | Closed |
Service Factor | 1.15 |
GPM of Water @ 15 Ft. of Head | 110 |
GPM of Water @ 40 Ft. of Head | 85 |
Motor RPM | 3,450 RPM |
Drain Plug | No |
Seal Material | Carbon, Ceramic, Stainless Steel, Viton |
Amps | 8.4/4.2 |
GPM of Water @ 60 Ft. of Head | 24 |
Shaft Material | Stainless Steel |
Max. Case Pressure | 150 psi |
Hz | 60 |
Max. Fluid Viscosity | 31 SUS |
GPM of Water @ 25 Ft. of Head | 105 |
Best Efficiency Range GPM @ Head | 26 to 100 gpm @ 60 to 100 ft |
Bearing Type | Ball |
Motor Type | Three-Phase Induction |
Volute Material | 304 Stainless Steel |
Standards | CUS |
Discharge Rotation | 90 Degrees Increments |
Flow Rate @ 40 ft of Head (Maximum) | 75 gpm |
Flow Rate @ 10 ft of Head (Maximum) | 114 gpm |
Duty Cycle | Continuous |
Flow Rate @ 60 ft of Head (Maximum) | 24 gpm |
Wetted Material | 304 Stainless Steel, Carbon, Ceramic, Viton |
Feet of Head (Maximum) | 68 ft |
Frequency | 60 Hz |
Priming | Manual |
Best Efficiency Head | 50 ft |
Flow Rate @ 20 ft of Head (Maximum) | 109 gpm |
Shut Off Pressure (Maximum) | 150 psi |
Flow Rate @ 1 ft of Head (Maximum) | 118 gpm |
Best Efficiency Flow | 55 gpm |
Specific Gravity (Maximum) | 1 |
Discharge Pipe Type | NPT |
Flow Rate (Maximum) | 130 gpm |
Case Pressure (Maximum) | 150 psi |
Nameplate Voltage | 230/460V AC |
Viscosity (Maximum) | 31 SUS |
Electrical Connection Type | Not Applicable |
Compatible Motor Frame | 56J NEMA |
Flow Rate @ 25 ft of Head (Maximum) | 100 gpm |
Flow Rate @ 15 ft of Head (Maximum) | 106 gpm |
Impeller Design | Closed |
Flow Rate @ 80 ft of Head (Maximum) | Not Applicable |
Media Temperature (Minimum) | 40 Degrees F |
For Use With Potable Systems | No |
Flow Rate @ 70 ft of Head (Maximum) | Not Applicable |
Current | 8.4 or 4.2 A |
Ambient Temperature (Minimum) | 40 Degrees F |
Flow Rate (Minimum) | 24 gpm |
Suction Port | 2 in NPT |
Horsepower (Maximum) | 2 hp |
Ambient Temperature (Maximum) | 104 Degrees F |
Discharge Port | 1 1/2 in NPT |
Intake Pipe Type | NPT |
Flow Rate @ 5 ft of Head (Maximum) | 117 gpm |
Media Temperature (Maximum) | 200 Degrees F |
Motor Speed (Maximum) | 3,450 RPM |
Flow Rate @ 30 ft of Head (Maximum) | 92 gpm |
Description
Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 68 ft, Flow Rate (Maximum) 130 gpm, Horsepower (Maximum) 2 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 114 gpm
- WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
