Shop DAYTON

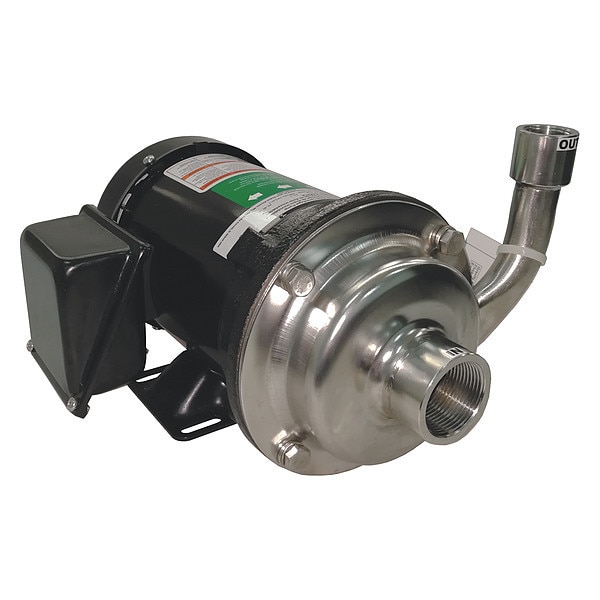

Pump, 3/4 HP, 208-230/460V, 3.8-3.4/1.7 Amp

  • Mfr # 4JMX1

  • Zoro # G0739356

product price:  $846.99
/ea
Free Shipping & Returns

Key Features

HP
3/4 hp
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
58 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4JMX1
Zoro #
G0739356
UPC #
190735326749
Country of Origin
China

Dimensions

Max. Dia. Solids
1/8 in
Manufacturers Warranty Length
1 yr
Length
12 15/16 in
Height
7 7/8 in
Width
9 1/4 in
Overall Width
9.2 in
Overall Height
7.8 in
Overall Length
12.9 in
Discharge Pipe Size
3/4 in
Intake Pipe Size
1 1/4 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in
Motor Frame Size
56J
Manufacturer Warranty Length
1 yr
Impeller Diameter
104 mm
Discharge Diameter
3/4 in
Inlet Diameter
1 1/4 in

Details

Item
Centrifugal Pump
HP
3/4 hp
Housing Material
304 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
58 gpm @ 5 ft
Max. Head
62 ft
Best Efficiency GPM @ Head
30 gpm @ 41 ft
Inlet
1-1/4 in NPT
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Motor RPM
3,450 RPM
Hz
60
GPM of Water @ 5 Ft. of Head
58
Wetted Materials
304 Stainless Steel, Carbon, Ceramic, Viton
Inlet Pressure
123 psi
Seal Type
Mechanical
Service Factor
1.15
Duty
Continuous
Max. Fluid Viscosity
31 SUS
Max. Specific Gravity
1.0
Impeller Material
304 Stainless Steel
NEMA/IEC Frame
56J
Screw Material
Stainless Steel
GPM of Water @ 15 Ft. of Head
48
Agency Compliance
CUS
Shaft Material
Stainless Steel
GPM of Water @ 30 Ft. of Head
38
Drain Plug
No
Port Rotation
90 Degrees Increments
Max. Liquid Temp.
200 Degrees F
Amps
3.8-3.4/1.7
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency Range GPM @ Head
20 to 48 gpm @ 48 to 15 ft
GPM of Water @ 25 Ft. of Head
44
GPM of Water @ 20 Ft. of Head
47
GPM of Water @ 60 Ft. of Head
3
Includes
Manual
Impeller Type
Closed
Application
Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
GPM of Water @ 40 Ft. of Head
29
Max. Case Pressure
150 psi
Min. GPM @ Head
3 gpm @ 60 ft
GPM of Water @ 10 Ft. of Head
52
Bearing Type
Ball
GPM of Water @ 50 Ft. of Head
18
Volute Material
304 Stainless Steel
Motor Type
Three-Phase Induction
Standards
CUS
Flow Rate @ 15 ft of Head (Maximum)
44 gpm
Flow Rate @ 20 ft of Head (Maximum)
42 gpm
Flow Rate @ 40 ft of Head (Maximum)
24 gpm
Frequency
60 Hz
Viscosity (Maximum)
31 SUS
Discharge Pipe Type
NPT
Media Temperature (Minimum)
40 Degrees F
Flow Rate @ 30 ft of Head (Maximum)
32 gpm
Flow Rate @ 25 ft of Head (Maximum)
36 gpm
Wetted Material
304 Stainless Steel, Carbon, Ceramic, Viton
Current
3.8 to 3.4 or 1.7 A
Case Pressure (Maximum)
150 psi
Duty Cycle
Continuous
Discharge Rotation
90 Degrees Increments
Ambient Temperature (Maximum)
104 Degrees F
For Use With Potable Systems
No
Flow Rate @ 60 ft of Head (Maximum)
3 gpm
Flow Rate @ 10 ft of Head (Maximum)
46 gpm
Media Temperature (Maximum)
200 Degrees F
Specific Gravity (Maximum)
1
Flow Rate (Maximum)
58 gpm
Flow Rate @ 5 ft of Head (Maximum)
48 gpm
Flow Rate @ 1 ft of Head (Maximum)
49 gpm
Ambient Temperature (Minimum)
40 Degrees F
Feet of Head (Maximum)
62 ft
Best Efficiency Flow
30 gpm
Compatible Motor Frame
56J NEMA
Flow Rate (Minimum)
3 gpm
Shut Off Pressure (Maximum)
150 psi
Priming
Manual
Horsepower (Maximum)
3/4 hp
Intake Pipe Type
NPT
Nameplate Voltage
208-230/460V AC
Impeller Design
Closed
Motor Speed (Maximum)
3,450 RPM
Best Efficiency Head
41 ft
Flow Rate @ 10 ft of Head - Maximum
46 gpm
Shaft Seal Material
Carbon/Ceramic/FKM/Stainless Steel
Ambient Temperature - Maximum
104 Degrees F
Chemical Compatibility
Non-Abrasive Liquids, Non-Flammable Liquids
Horsepower
3/4 hp
Pump Design
End Suction
Drive Coupling Type
No Coupling
Ambient Temperature - Minimum
40 Degrees F
Pump Housing Material
Stainless Steel
Hazardous Location Class
Not Rated
Media Temperature - Maximum
200 Degrees F
Motor Design
Three-Phase
Mounting Orientation
Horizontal
NPSHr
2.4 ft
Inlet Position
Center
Inlet Orientation
Side
Number of Stages
1
Motor Speed - Maximum
3,450 RPM
Discharge Orientation
Side
Thermal Overload Protection
No
Shaft Seal Type
Mechanical
Case Pressure - Maximum
150 psi
Feet of Head (Minimum)
0 ft
Full Load Current
3.8-3.4/1.7
Media Temperature - Minimum
40 Degrees F
Discharge Rotation Increments
90 Degrees
Discharge Position
Offset
Shut Off Pressure - Maximum
150 psi

Description

Centrifugal Pump, Phase Three, Pump Housing Material Stainless Steel, Horsepower 3/4 hp, Nameplate Voltage 208-230/460V AC, Flow Rate @ 40 ft of Head (Maximum) 24 gpm, Flow Rate @ 60 ft of Head (Maximum) 3 gpm, Flow Rate @ 80 ft of Head (Maximum) Not Applicable, Motor Enclosure Totally Enclosed Fan Cooled, Flow Rate @ 5 ft of Head (Maximum) 48 gpm, Flow Rate @ 10 ft of Head (Maximum) 46 gpm, Flow Rate @ 15 ft of Head (Maximum) 44 gpm, Flow Rate @ 20 ft of Head (Maximum) 42 gpm
