  9. Pump, Centrifugal, SS, 1-1/2 HP, 3 PH

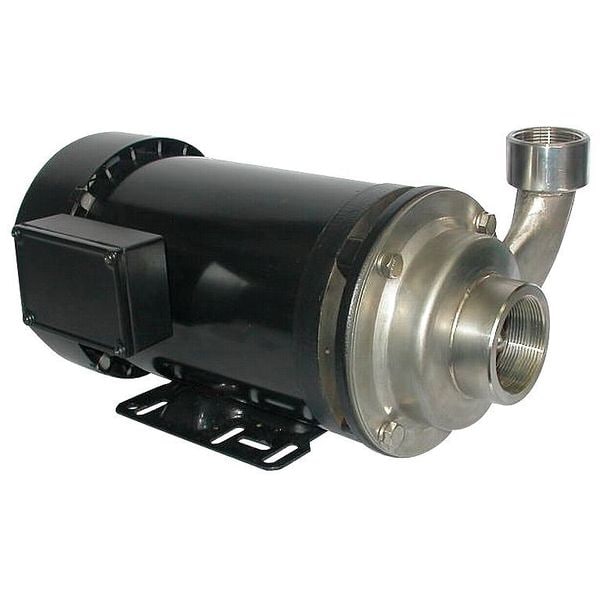

Dayton Pump, Centrifugal, SS, 1-1/2 HP, 3 PH 5WXT7 - main

Pump, Centrifugal, SS, 1-1/2 HP, 3 PH

  • Mfr # 5WXT7

  • Zoro # G2796832

product price: $1,313.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
116 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXT7
Zoro #
G2796832
UPC #
190735354896
Country of Origin
China

Dimensions

Manufacturers Warranty Length
1 yr
Height
7 7/8 in
Max. Dia. Solids
1/8 in
Width
9 1/4 in
Length
13 7/16 in
Overall Length
13.4 in
Overall Width
9.3 in
Overall Height
7.9 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.13 in
Shaft Outer Diameter
7/16 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1 1/2 hp
Housing Material
316 Stainless Steel
Phase
Three
Voltage
208-230/460
Max. GPM @ Head
116 gpm @ 5 ft
Max. Head
65 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
50 gpm @ 48 ft
Outlet
1-1/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
GPM of Water @ 10 Ft. of Head
108
Min. GPM @ Head
13 gpm @ 60 ft
GPM of Water @ 20 Ft. of Head
100
Port Rotation
90 Degrees Increments
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Bearing Type
Ball
Drain Plug
No
Max. Case Pressure
150 psi
Duty
Continuous
GPM of Water @ 15 Ft. of Head
105
Hz
60
Impeller Type
Closed
GPM of Water @ 5 Ft. of Head
116
Motor RPM
3,450 RPM
Best Efficiency Range GPM @ Head
97 to 16 gpm @ 23 to 60 ft
GPM of Water @ 60 Ft. of Head
13
Amps
7.0-6.6/3.3
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 50 Ft. of Head
44
Inlet Pressure
122 psi
Agency Compliance
CUS
Service Factor
1.15
NEMA/IEC Frame
56J
Max. Liquid Temp.
300 Degrees F
Impeller Material
316 Stainless Steel
GPM of Water @ 40 Ft. of Head
70
GPM of Water @ 30 Ft. of Head
81
Includes
Manual
Max. Fluid Viscosity
260 SUS
Shaft Material
Stainless Steel
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 25 Ft. of Head
95
Seal Type
Mechanical
Max. Specific Gravity
1.0
Screw Material
Stainless Steel
Volute Material
316 Stainless Steel
Motor Type
Three-Phase Induction
Standards
CUS
Shut Off Pressure (Maximum)
150 psi
Best Efficiency Head
48 ft
Compatible Motor Frame
56J NEMA
Feet of Head (Maximum)
78 ft
Flow Rate (Minimum)
13 gpm
Discharge Rotation
90 Degrees Increments
Flow Rate @ 30 ft of Head (Maximum)
76 gpm
Flow Rate (Maximum)
116 gpm
Intake Pipe Type
NPT
Current
3.6 or 1.8 A
Flow Rate @ 60 ft of Head (Maximum)
13 gpm
Ambient Temperature (Minimum)
40 Degrees F
For Use With Potable Systems
No
Nameplate Voltage
208-230/460V AC
Flow Rate @ 10 ft of Head (Maximum)
100 gpm
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 5 ft of Head (Maximum)
102 gpm
Flow Rate @ 20 ft of Head (Maximum)
95 gpm
Best Efficiency Flow
50 gpm
Flow Rate @ 15 ft of Head (Maximum)
98 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Flow Rate @ 1 ft of Head (Maximum)
103 gpm
Viscosity (Maximum)
260 SUS
Specific Gravity (Maximum)
1
Discharge Pipe Type
NPT
Horsepower (Maximum)
1 1/2 hp
Media Temperature (Minimum)
40 Degrees F
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 25 ft of Head (Maximum)
85 gpm
Priming
Manual
Case Pressure (Maximum)
150 psi
Flow Rate @ 40 ft of Head (Maximum)
60 gpm
Frequency
60 Hz
Duty Cycle
Continuous
Impeller Design
Closed
Media Temperature (Maximum)
300 Degrees F

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 78 ft, Flow Rate (Maximum) 116 gpm, Horsepower (Maximum) 1 1/2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 100 gpm
