- Item

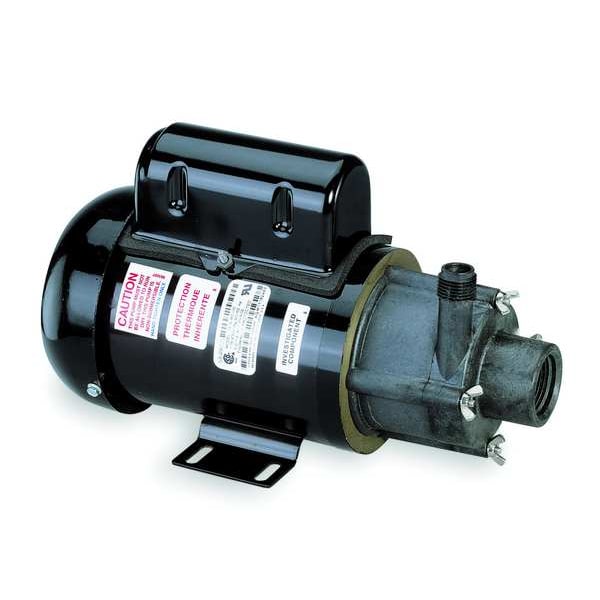

- Magnetic Drive Pump
- HP
- 1/3 hp
- Voltage
- 115/230
- Inlet
- 1 in FPT
- Outlet
- 3/4 in MPT
- Max. Head
- 40.5 ft
- Operating Pressure
- 18.0 psi
- Housing Material
- Glass-Filled Polyphenylene
- Design
- Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
- Temp. @ 30 psig
- 165 Degrees F
- Full Load Amps
- 5.00/2.50 A
- Max. Viscosity
- 100 SSU
- GPM of Water @ 6 Ft. of Head
- 31.8 gpm
- Mounting
- Horizontal
- Temp. @ 10 psig
- 175 Degrees F
- GPM of Water @ 18 Ft. of Head
- 26.8 gpm
- Motor Type
- Permanent Split Capacitor
- Bearing Type
- Thrust
- Motor Enclosure
- Totally Enclosed Fan Cooled
- Impeller Material
- Carbon/Polyphenylene
- GPM of Water @ 40 Ft. of Head
- 6.4 gpm
- Gasket Material
- FKM
- GPM of Water @ 24 Ft. of Head
- 23.9 gpm
- GPM of Water @ 15 Ft. of Head
- 28.1 gpm
- Series
- MD-HC
- Temp. @ 20 psig
- 170 Degrees F
- GPM of Water @ 9 Ft. of Head
- 30.5 gpm
- Max. Specific Gravity
- 1.1
- Temp. @ 0 psig
- 180 Degrees F
- Application
- For Highly Corrosive Chemicals, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
- Operating Pressure (Maximum)
- 18 psi
- Flow Rate @ 6 ft of Head (Maximum)
- 31.8 gpm
- Feet of Head (Maximum)
- 40.5 ft
- Full Load Current
- 5 A
- Media Temperature (Maximum)
- 180 Degrees F
- Phase
- Single
- Frequency
- 60 Hz
- Flow Rate @ 40 ft of Head (Maximum)
- 6 gpm
- Viscosity (Maximum)
- 100 SUS
- Intake Pipe Type
- FNPT
- Specific Gravity (Maximum)
- 1.1
- Flow Rate @ 9 ft of Head (Maximum)
- 30.5 gpm
- Horsepower (Maximum)
- 1/3 hp
- Nameplate Voltage
- 115/230V AC
- Flow Rate @ 18 ft of Head (Maximum)
- 25 gpm
- Ambient Temperature (Maximum)
- 77 Degrees F
- Motor Mounting Type
- Horizontal
- Flow Rate @ 15 ft of Head (Maximum)
- 28.1 gpm
- Flow Rate @ 24 ft of Head (Maximum)
- 23.9 gpm
- Discharge Pipe Type
- NPT
- Flow Rate (Maximum)
- 32 gpm
- Pump Mounting Style
- Base-Mounted
- Case Pressure - Maximum
- 17.5 psi
- Motor Design
- Permanent Split Capacitor
- Priming
- Manual
- Ambient Temperature - Minimum
- 32 Degrees F
- Pump Design
- End Suction
- Media Temperature - Maximum
- 180 Degrees F
- Mounting Orientation
- Horizontal
- Shut Off Pressure - Maximum
- 17.5 psi
- Pump Drive Configuration
- Close-Coupled
- Ambient Temperature - Maximum
- 77 Degrees F
- Shaft Seal Type
- Sealless
- Number of Stages
- 1
- Best Efficiency Head
- 30 ft
- Chemical Compatibility
Acetylene,Acid,Alcohol,Aluminum Chloride,Aluminum Chloride 20%,Aluminum Sulfate,Ammonium Chloride,Ammonium Hydroxide,Antifreeze,Barium Chloride,Barium Hydroxide,Barium Sulfate,Benzene,Borax,Butadiene,Butane,Butylene,Calcium Chloride,Calcium Sulfate,Carbon Disulfide,Chlorobenzene,Copper Cyanide,Copper Sulfate 5%,Cyclohexane,Diesel Fuel,Distilled,Ethyl Chloride,Ethylene Chloride,Ethylene Glycol,Ferric Chloride,Ferrous Chloride,Ferrous Sulfate,Formic Acid,Fuel Oil,Gasoline,Heptane,Hexane,Jet Fuel,Kerosene,Lactic Acid,Lubricants,Magnesium Hydroxide,Magnesium Sulfate,Mine,Naphtha,Naphthalene,Cotton Seed Oil,Mineral Oil,Perchloroethylene,Plating Solutions,Potassium Bicarbonate,Potassium Carbonate,Potassium Chlorate,Potassium Chloride,Potassium Dichromate,Potassium Permanganate,Potassium Sulfate,Salt,Soap,Sodium Aluminate,Sodium Bicarbonate,Sodium Bisulfate,Sodium Bisulfite,Sodium Carbonate,Sodium Chlorate,Sodium Chloride,Sodium Chromate,Sodium Cyanide,Sodium Sulfate,Sodium Sulfide,Sodium Thiosulphate,Stoddard Solvent,Sulfuric Acid 10% to 75%,Sulfuric Acid 1% to 10%,Tomato Juice,Turpentine,Vinegar,Water,Xylene,Zinc Chloride,Zinc Sulfate
- Hazardous Location Class
- Not Rated
- Drive Coupling Type
- Magnetic Coupling
- Pumping Application
- Chemical Transfer
- Media Temperature - Minimum
- 32 Degrees F
- Best Efficiency Flow
- 20 gpm
