  9. Pump, Centrifugal, SS, 1 HP, 1 PH

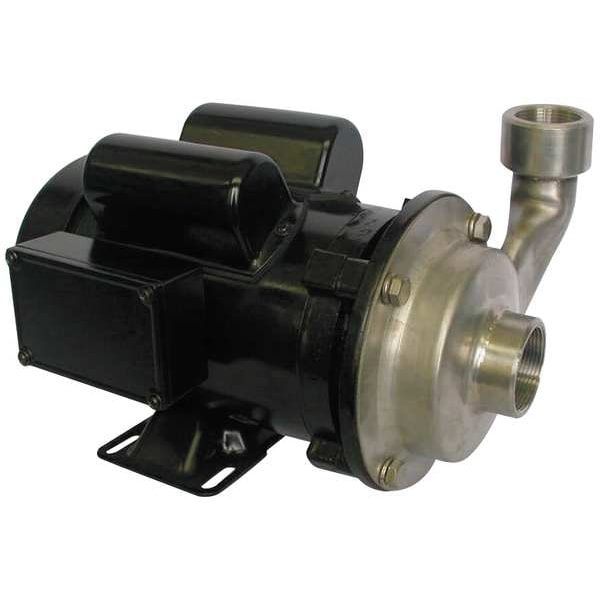

Dayton Pump, Centrifugal, SS, 1 HP, 1 PH 5WXT4 - main

Pump, Centrifugal, SS, 1 HP, 1 PH

  • Mfr # 5WXT4

  • Zoro # G3411326

product price: $1,257.99
/ea
Free Shipping & Returns

Key Features

HP
1 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
90 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5WXT4
Zoro #
G3411326
UPC #
190735354865
Country of Origin
China

Dimensions

Max. Dia. Solids
1/8 in
Width
9 1/4 in
Height
7 7/8 in
Manufacturers Warranty Length
1 yr
Length
12 15/16 in
Overall Length
12.9 in
Overall Width
9.3 in
Overall Height
7.9 in
Intake Pipe Size
1 1/2 in
Discharge Pipe Size
1 1/4 in
Shaft Outer Diameter
7/16 in
Solid Diameter (Maximum)
0.13 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
90 gpm @ 5 ft
Max. Head
65 ft
Inlet
1-1/2 in NPT
Best Efficiency GPM @ Head
48 gpm @ 40 ft
Outlet
1-1/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Port Rotation
90 Degrees Increments
Max. Case Pressure
150 psi
Max. Liquid Temp.
300 Degrees F
Motor RPM
3,450 RPM
Duty
Continuous
Impeller Material
316 Stainless Steel
Max. Fluid Viscosity
260 SUS
GPM of Water @ 40 Ft. of Head
48
Drain Plug
No
GPM of Water @ 30 Ft. of Head
57
Shaft Material
Stainless Steel
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 50 Ft. of Head
24
Inlet Pressure
121 psi
Hz
60
Motor Type
Capacitor Start Capacitor Run
GPM of Water @ 25 Ft. of Head
70
Bearing Type
Ball
Screw Material
Stainless Steel
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 60 Ft. of Head
8
NEMA/IEC Frame
56J
Max. Specific Gravity
1.0
Impeller Type
Closed
GPM of Water @ 20 Ft. of Head
77
Agency Compliance
CUS
Min. GPM @ Head
8 gpm @ 60 ft
Includes
Manual
GPM of Water @ 5 Ft. of Head
90
Best Efficiency Range GPM @ Head
66 to 21 gpm @ 20 to 50 ft
GPM of Water @ 10 Ft. of Head
84
Service Factor
1.3
Amps
13.0/6.5
GPM of Water @ 15 Ft. of Head
79
Seal Type
Mechanical
Volute Material
316 Stainless Steel
Standards
CUS
Ambient Temperature (Maximum)
104 Degrees F
Discharge Pipe Type
NPT
Flow Rate @ 25 ft of Head (Maximum)
56 gpm
Flow Rate @ 1 ft of Head (Maximum)
82 gpm
Flow Rate @ 30 ft of Head (Maximum)
48 gpm
Discharge Rotation
90 Degrees Increments
Shut Off Pressure (Maximum)
150 psi
Case Pressure (Maximum)
150 psi
Current
13 or 6.5 A
Viscosity (Maximum)
260 SUS
Specific Gravity (Maximum)
1
Best Efficiency Flow
48 gpm
Feet of Head (Maximum)
65 ft
Flow Rate @ 20 ft of Head (Maximum)
65 gpm
Flow Rate @ 5 ft of Head (Maximum)
79 gpm
Nameplate Voltage
115/230V AC
Media Temperature (Maximum)
300 Degrees F
Flow Rate (Maximum)
90 gpm
Compatible Motor Frame
56J NEMA
Flow Rate @ 15 ft of Head (Maximum)
70 gpm
Best Efficiency Head
40 ft
Media Temperature (Minimum)
40 Degrees F
Impeller Design
Closed
Motor Speed (Maximum)
3,450 RPM
Flow Rate @ 40 ft of Head (Maximum)
26 gpm
Frequency
60 Hz
Priming
Manual
Horsepower (Maximum)
1 hp
Flow Rate @ 60 ft of Head (Maximum)
3 gpm
For Use With Potable Systems
No
Duty Cycle
Continuous
Flow Rate @ 10 ft of Head (Maximum)
75 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Intake Pipe Type
NPT
Flow Rate (Minimum)
8 gpm
Ambient Temperature (Minimum)
40 Degrees F

Description

Centrifugal Pump, Discharge Pipe Size 1 1/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 65 ft, Flow Rate (Maximum) 90 gpm, Horsepower (Maximum) 1 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 1 1/2 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 75 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
