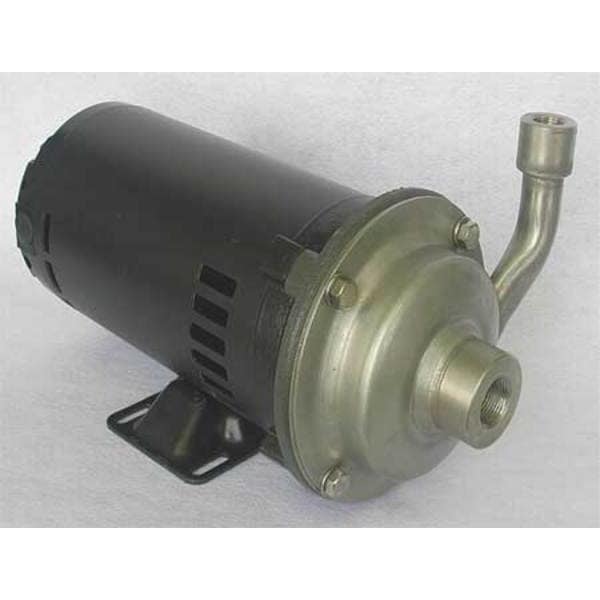

Pump, 3/4 HP, 230/460V, 3.0/1.5 Amp

Mfr # 4JMV6
Zoro # G3432457

$645.99

Free Shipping & Returns

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

HP 3/4 hp
Housing Material 304 Stainless Steel
Phase Three
Voltage 230/460
Max. GPM @ Head 58 gpm @ 5 ft

See all product information

Brand Dayton
MFR # 4JMV6
Zoro # G3432457
UPC #
190735326619
Country of Origin China
Category Chemical-Resistant Pumps

Dimensions

Max. Dia. Solids	1/8 in
Height	7 7/8 in
Length	13 5/16 in
Manufacturers Warranty Length	1 yr
Width	6 9/16 in
Overall Height	7.9 in
Overall Width	6.6 in
Overall Length	13.3 in
Shaft Outer Diameter	7/16 in
Discharge Pipe Size	3/4 in
Solid Diameter (Maximum)	0.13 in
Intake Pipe Size	1 1/4 in

Details

HP	3/4 hp
Item	Chemical Resistant Centrifugal Pump
Housing Material	304 Stainless Steel
Phase	Three
Voltage	230/460
Max. GPM @ Head	58 gpm @ 5 ft
Max. Head	62 ft
Best Efficiency GPM @ Head	30 gpm @ 41 ft
Inlet	1-1/4 in NPT
Outlet	3/4 in NPT
Motor Enclosure	Open Dripproof
GPM of Water @ 15 Ft. of Head	48
Motor RPM	3,450 RPM
Impeller Type	Closed
Min. GPM @ Head	3 gpm @ 60 ft
GPM of Water @ 50 Ft. of Head	18
GPM of Water @ 10 Ft. of Head	52
Port Rotation	90 Degrees Increments
Agency Compliance	CUS
Impeller Material	304 Stainless Steel
Max. Specific Gravity	1.0
Seal Material	Carbon, Ceramic, Stainless Steel, Viton
Max. Case Pressure	150 psi
GPM of Water @ 5 Ft. of Head	58
Max. Fluid Viscosity	31 SUS
Hz	60
Seal Type	Mechanical
GPM of Water @ 25 Ft. of Head	44
Includes	Manual
Amps	3.0/1.5
Inlet Pressure	121 psi
GPM of Water @ 20 Ft. of Head	47
Shaft Material	Stainless Steel
Max. Liquid Temp.	200 Degrees F
Best Efficiency Range GPM @ Head	20 to 48 gpm @ 48 to 15 ft
Drain Plug	No
GPM of Water @ 30 Ft. of Head	38
Screw Material	Stainless Steel
GPM of Water @ 60 Ft. of Head	3
Duty	Continuous
Application	Chemical Processing, Circulation, Cooling, Liquids Transfer, Pressure Boosting and Circulating
Bearing Type	Ball
Wetted Materials	304 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 40 Ft. of Head	29
Service Factor	1.15
NEMA/IEC Frame	56J
Volute Material	304 Stainless Steel
Motor Type	Three-Phase Induction
Standards	CUS
Nameplate Voltage	230/460V AC
Flow Rate @ 10 ft of Head (Maximum)	46 gpm
Case Pressure (Maximum)	150 psi
Best Efficiency Flow	30 gpm
Priming	Manual
Discharge Rotation	90 Degrees Increments
Intake Pipe Type	NPT
Flow Rate @ 25 ft of Head (Maximum)	36 gpm
Flow Rate @ 1 ft of Head (Maximum)	49 gpm
For Use With Potable Systems	No
Wetted Material	304 Stainless Steel, Carbon, Ceramic, Viton
Motor Speed (Maximum)	3,450 RPM
Flow Rate @ 40 ft of Head (Maximum)	24 gpm
Compatible Motor Frame	56J NEMA
Best Efficiency Head	41 ft
Discharge Pipe Type	NPT
Flow Rate @ 5 ft of Head (Maximum)	48 gpm
Flow Rate @ 20 ft of Head (Maximum)	42 gpm
Shut Off Pressure (Maximum)	150 psi
Flow Rate @ 60 ft of Head (Maximum)	3 gpm
Flow Rate @ 15 ft of Head (Maximum)	44 gpm
Frequency	60 Hz
Viscosity (Maximum)	31 SUS
Media Temperature (Maximum)	200 Degrees F
Horsepower (Maximum)	3/4 hp
Flow Rate @ 30 ft of Head (Maximum)	32 gpm
Specific Gravity (Maximum)	1
Ambient Temperature (Minimum)	40 Degrees F
Feet of Head (Maximum)	62 ft
Current	3.0 or 1.5 A
Flow Rate (Maximum)	58 gpm
Media Temperature (Minimum)	40 Degrees F
Duty Cycle	Continuous
Ambient Temperature (Maximum)	104 Degrees F
Flow Rate (Minimum)	3 gpm
Impeller Design	Closed

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 62 ft, Flow Rate (Maximum) 58 gpm, Horsepower (Maximum) 3/4 hp, Housing Material 304 Stainless Steel, Impeller Design Closed, Impeller Material 304 Stainless Steel, Intake Pipe Size 1 1/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 200 Degrees F, Phase Three, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 31 SUS, Flow Rate @ 10 ft of Head (Maximum) 46 gpm

Replacement Parts

Dayton Impeller

product price: $130.99
/ea
Dayton Impeller Nut, 7/16, 20 UNF

product price: $14.29
/ea
Dayton Impeller O-Ring

product price: $8.49
/ea
Dayton Housing

product price: $182.99
/ea
Dayton Pump Shaft Seal Kit, Seal Type 21

product price: $68.85
/ea
Dayton Washer Type Spring Washer

product price: $8.65
Dayton Cover

product price: $76.25
/ea
Dayton Mounting Adaptor

product price: $60.85
/ea
Dayton O-Ring, PPT03304G

product price: $30.69
/ea
Dayton Pump Head, 3/4 HP, 1 1/4 x 3/4 In.

product price: $406.99
/ea
Dayton Seal Kit, Fits Dayton, Buna-N

product price: $46.15
/ea
