  9. Pump, Centrifugal, SS, 1/2 HP, 1 PH
Dayton Pump, Centrifugal, SS, 1/2 HP, 1 PH 5WXT0 - main

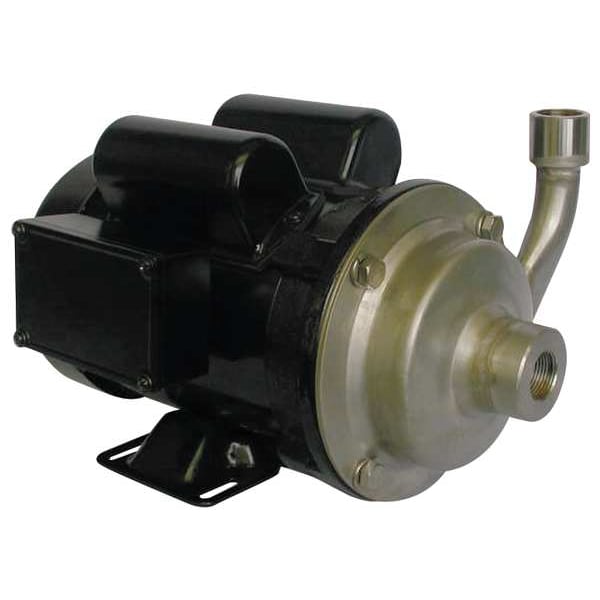

Pump, Centrifugal, SS, 1/2 HP, 1 PH

  • Mfr # 5WXT0

  • Zoro # G2699033

product price: $873.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
38 gpm @ 5 ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5WXT0
Zoro #
G2699033
UPC #
190735354827
Country of Origin
China

Dimensions

Width
9 1/4 in
Length
12 5/8 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8 in
Height
7 7/8 in
Overall Width
9.3 in
Overall Height
7.9 in
Overall Length
12.6 in
Shaft Outer Diameter
7/16 in
Intake Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in
Discharge Pipe Size
3/4 in

Details

Item
Chemical Resistant Centrifugal Pump
HP
1/2 hp
Housing Material
316 Stainless Steel
Phase
Single
Voltage
115/230
Max. GPM @ Head
38 gpm @ 5 ft
Max. Head
50 ft
Best Efficiency GPM @ Head
28 gpm @ 22 ft
Inlet
3/4 in NPT
Outlet
3/4 in NPT
Motor Enclosure
Totally Enclosed Fan Cooled
Min. GPM @ Head
5 gpm @ 40 ft
Duty
Continuous
Bearing Type
Ball
Application
Chemical Processing, Circulating, Cooling, Liquid Transfer, Pressure Boosting, Recirculation
Screw Material
Stainless Steel
Max. Liquid Temp.
300 Degrees F
Impeller Type
Closed
Amps
7.5/3.8
Shaft Material
Stainless Steel
NEMA/IEC Frame
56J
Service Factor
1.5
Drain Plug
No
Seal Material
Carbon, Ceramic, Stainless Steel, Viton
GPM of Water @ 25 Ft. of Head
26
Wetted Materials
316 Stainless Steel, Carbon, Ceramic, Viton
GPM of Water @ 30 Ft. of Head
20
Impeller Material
316 Stainless Steel
GPM of Water @ 40 Ft. of Head
5
Includes
Manual
GPM of Water @ 15 Ft. of Head
32
GPM of Water @ 20 Ft. of Head
29
Inlet Pressure
128 psi
Hz
60
Port Rotation
90 Degrees Increments
Max. Case Pressure
150 psi
GPM of Water @ 5 Ft. of Head
38
Seal Type
Mechanical
Max. Fluid Viscosity
260 SUS
Motor RPM
3,450 RPM
GPM of Water @ 10 Ft. of Head
34
Max. Specific Gravity
1.0
Motor Type
Capacitor Start Capacitor Run
Best Efficiency Range GPM @ Head
33 to 24 gpm @ 12 to 28 ft
Agency Compliance
CUS
Volute Material
316 Stainless Steel
Standards
CUS
Best Efficiency Head
22 ft
Flow Rate @ 40 ft of Head (Maximum)
5 gpm
Compatible Motor Frame
56J NEMA
Motor Speed (Maximum)
3,450 RPM
Impeller Design
Closed
Frequency
60 Hz
Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 15 ft of Head (Maximum)
32 gpm
Flow Rate @ 10 ft of Head (Maximum)
34 gpm
Priming
Manual
Flow Rate (Maximum)
38 gpm
Flow Rate @ 5 ft of Head (Maximum)
35.5 gpm
Flow Rate (Minimum)
5 gpm
Viscosity (Maximum)
260 SUS
Horsepower (Maximum)
1/2 hp
Current
7.5 or 3.8 A
Media Temperature (Minimum)
40 Degrees F
Case Pressure (Maximum)
150 psi
Discharge Rotation
90 Degrees Increments
For Use With Potable Systems
No
Intake Pipe Type
NPT
Specific Gravity (Maximum)
1
Nameplate Voltage
115/230V AC
Discharge Pipe Type
NPT
Flow Rate @ 20 ft of Head (Maximum)
29 gpm
Best Efficiency Flow
28 gpm
Wetted Material
316 Stainless Steel, Carbon, Ceramic, Viton
Feet of Head (Maximum)
50 ft
Shut Off Pressure (Maximum)
150 psi
Flow Rate @ 25 ft of Head (Maximum)
26 gpm
Ambient Temperature (Minimum)
40 Degrees F
Duty Cycle
Continuous
Flow Rate @ 30 ft of Head (Maximum)
20 gpm
Flow Rate @ 1 ft of Head (Maximum)
36.5 gpm
Media Temperature (Maximum)
300 Degrees F

Description

Centrifugal Pump, Discharge Pipe Size 3/4 in, Discharge Pipe Type NPT, Feet of Head (Maximum) 50 ft, Flow Rate (Maximum) 38 gpm, Horsepower (Maximum) 1/2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material 316 Stainless Steel, Intake Pipe Size 3/4 in, Intake Pipe Type NPT, Media Temperature (Maximum) 300 Degrees F, Phase Single, Shut Off Pressure (Maximum) 150 psi, Viscosity (Maximum) 260 SUS, Flow Rate @ 10 ft of Head (Maximum) 34 gpm
