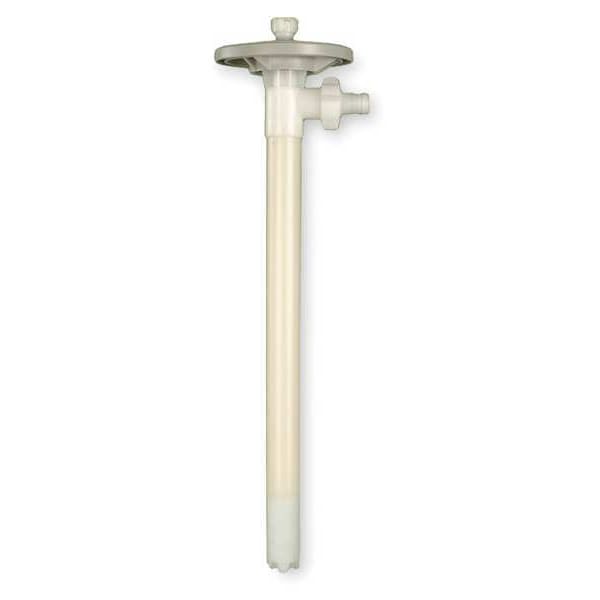

Dayton Pump, Drum, Pump Body Material Kynar 1DLL3 - main

Pump, Drum, Pump Body Material Kynar

  • Mfr # 1DLL3

  • Zoro # G2247856

product price: $760.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
16 psi
For Use With
Liquid Transfer
Inlet Size
1 5/8 in
Max. Viscosity
1500 CPS
GPM
32
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1DLL3
Zoro #
G2247856
UPC #
190735135280
Country of Origin
United States

Dimensions

Inlet Size
1 5/8 in
Overall Length
43 in
Suction Tube Length
39 in
Outlet Size
1 in
Height
39"
For Container Size
55 gal

Details

Item
Drum Pump Tube
Max. Pressure
16 psi
For Use With
Liquid Transfer
Max. Viscosity
1500 CPS
GPM
32
Wetted Materials
Carbon Graphite, Hastelloy C-276, PTFE, PVDF
Max. Liquid Temp.
175 Degrees F
Adapter Material
Polypropylene
Includes
Hose Barb
Self-Priming
Yes
Max. Head
36 ft
Seal Material
Sealless
Discharge Tube Outlet ID
1 in
Discharge Connection Type
Hose Barb
Max. Flow Rate
35 gpm
Max. Head Pressure
16 psi
Not Recommended Chemicals
Acetic Acid (Glacial), Acetone, Cyclohexane, DEF, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Stoddard Solvent (Mineral Spirits), Toluene, Xylene
Suction Tube OD
1 in
Food Grade
No
Max. Fluid Temp.
175 Degrees F
For Media Type
Acetic Acid, Ammonia, Ammonium Hydroxide, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Trichlorethylene, Water
Diesel Exhaust Fluid Compatible
No
Compatible Chemicals
Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Ammonium Hydroxide, Calcium Chloride, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Trichlorethylene (50%)
Suction Tube ID
1 1/3 in
Runs Dry
Yes
For Container Type
Drum
Discharge Tube Outlet OD
1 1/2 in
Suction Tube Material
PVDF
Gear Lube
NT
Grease
NT

Description

Drum Pump Tube, Suction Tube Length 39 in, Pump Package Type Drum Pump Tube, Suction Tube Material PVDF, Suction Tube ID 1 5/16 in, Suction Tube OD 1 in, Discharge Tube Outlet ID 1 in, Discharge Tube Outlet OD 1 1/2 in, Discharge Connection Type Hose Barb, Overall Length 43 in, For Container Size 55 gal, For Container Type Drum, Max. Flow Rate 35 gpm, Max. Viscosity 1500 CPS, Max. Fluid Temp. 175 Degrees F, Max. Head 36 ft, Max. Head Pressure 16 psi, Self-Priming Yes
