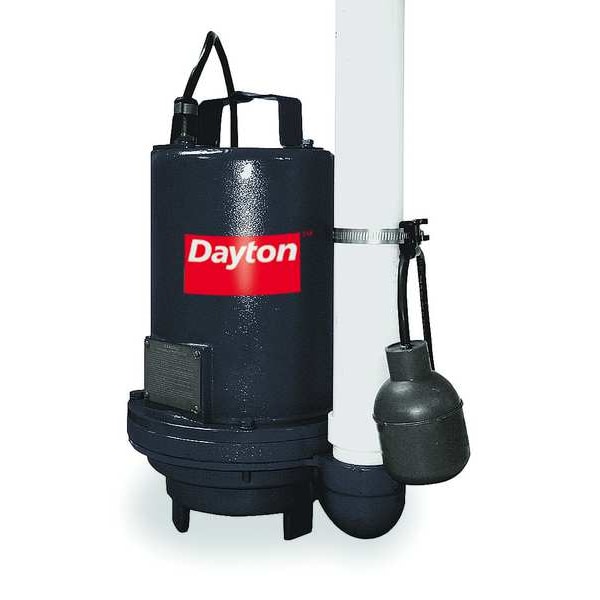

Dayton Pump, Effluent, 1/2hp 3BB83 - main

Pump, Effluent, 1/2hp

  • Mfr # 3BB83

  • Zoro # G1644501

product price: $1,176.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1/2
Impeller Material
Polypropylene
Amps
11.9 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3BB83
Zoro #
G1644501
UPC #
190735280096
Country of Origin
China

Dimensions

Cord Length
20 ft
Max. Diameter Solids
3/4 in
Length
16-3/4"
Max. Dia. Solids
3/4"
Height
16-3/4"
Min. Sump Pit Dia.
18 in
Diameter
12-1/4"
Width
12-3/16"
Cord Length - Pumps
20 ft.
Overall Height
16 3/4 in
Body Dia.
12 1/4 in
Width at Widest Point
12 1/4 in
Minimum Water Depth
18 in
Discharge Dia.
2 in
Water Depth - Minimum
18 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
3/4 in
Discharge Diameter
2 in
Body Diameter
12 1/4 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Polypropylene
Amps
11.9 A
Body Material
Cast Iron
Max. Head
79 ft
Switch Actuation
No Switch Included
Handle
yes
GPM of Water @ 15 Ft. of Head
70
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 25 Ft. of Head
61
Duty
Intermittent
Amps - Pumps
11.90
Pump RPM
3450
GPM of Water @ 30 Ft. of Head
56
Housing Material
Cast iron
Shaft Seal Material - Pumps
Nitrile Rubber, Silicon Carbide
GPM of Water @ 70 Ft. of Head
12
GPM of Water @ 10 Ft. of Head
76
Pump HP
1/2
Shaft Seal
Silicon Carbide/Buna N
Input Phase AC
1
Hz
60 Hz
GPM of Water @ 60 Ft. of Head
25
Switch Type
Tether
Switch Type - Pumps
Tether
GPM of Water @ 35 Ft. of Head
60
Top Material
Cast Iron
Discharge NPT
2"
GPM of Water @ 45 Ft. of Head
40
Max. Head - Pumps
79 ft.
Voltage - Pumps
120VAC
Pump Body Material
Cast Iron
GPM of Water @ 50 Ft. of Head
36
Phase
Single
GPM of Water @ 40 Ft. of Head
47
Impeller Material - Pumps
Polypropylene
Voltage
115V
GPM of Water @ 5 Ft. of Head
77
Base Material
Cast Iron
GPM of Water @ 55 Ft. of Head
30
GPM of Water @ 20 Ft. of Head
66
Item - Effluent Pumps
Submersible Effluent Pump
Duty Cycle
Intermittent
Rated Voltage
120V AC
Alarm Included
No
Flow Rate @ 100 Ft. of Head
0 gpm
Flow Rate @ 20 Ft. of Head
66 gpm
Discharge
2 in
Switch Electrical Connection
Piggyback
Flow Rate @ 15 Ft. of Head
70 gpm
Flow Rate @ 60 Ft. of Head
25 gpm
Flow Rate @ 40 Ft. of Head
47 gpm
Flow Rate @ 10 Ft. of Head
76 gpm
Shaft Seal Material
Nitrile Rubber/Silicon Carbide
Liquid Temperature - Maximum
104 Degrees F
Flow Rate @ 20 ft of Head
66 gpm
Feet of Head - Maximum
79 ft
Current
11.9 A
Flow Rate @ 40 ft of Head
47 gpm
Horsepower
1/2 hp
Includes Alarm
No Alarm Included
Flow Rate @ 10 ft of Head
76 gpm
Frequency
60 Hz

Description

Effluent Pump, HP 1/2, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Amps 11.9 A, Body Material Cast Iron, Impeller Material Polypropylene, Shaft Seal Material - Pumps Nitrile Rubber, Silicon Carbide, Switch Actuation No Switch Included, Switch Electrical Connection Piggyback, Flow Rate @ 10 Ft. of Head 76 gpm, Flow Rate @ 15 Ft. of Head 70 gpm, Flow Rate @ 20 Ft. of Head 66 gpm, Flow Rate @ 40 Ft. of Head 47 gpm, Flow Rate @ 60 Ft. of Head 25 gpm, Flow Rate @ 100 Ft. of Head 0 gpm
