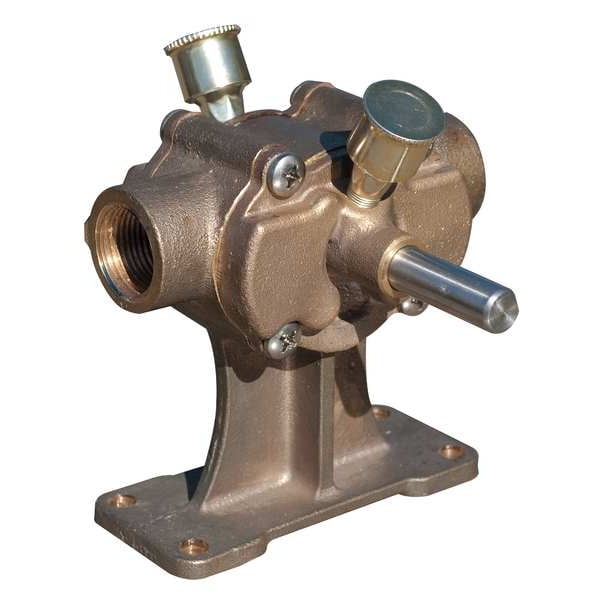

Dayton Pump, Pedestal, Inlet/Outlet 3/4 In. 6KHN8 - main

Pump, Pedestal, Inlet/Outlet 3/4 In.

  • Mfr # 6KHN8

  • Zoro # G6074126

product price: $388.99
/ea
Free Shipping & Returns

Key Features

Inlet/Outlet (In.)
3/4
GPM of Water @ 5 Ft. of Head
18 gpm
Max. Head (Ft.)
70 ft
Max. Pressure (PSI)
30 psi
Body Material
Bronze
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6KHN8
Zoro #
G6074126
UPC #
190735366905
Country of Origin
China

Dimensions

Size Height O.C. (In.)
5 1/4 in
Length (In.)
4 1/2 in
Shaft Dia. (In.)
1/2 in
Height (In.)
5 1/4 in
Width (In.)
5 1/2 in
Overall Width
5.5 in
Overall Length
4.5 in
Overall Height
5.3 in
Shaft Outer Diameter
1/2 in
Discharge Connection Size
3/4 in
Media Intake Connection Size
3/4 in

Details

Item
Impeller Pump
Inlet/Outlet (In.)
3/4
GPM of Water @ 5 Ft. of Head
18 gpm
Max. Head (Ft.)
70 ft
Max. Pressure (PSI)
30 psi
Body Material
Bronze
GPM of Water @ 10 Ft. of Head @ 1725 RPM
16 gpm
GPM of Water @ 20 Ft. of Head
12 gpm
GPM of Water @ 50 Ft. of Head
3 gpm
GPM of Water @ 30 Ft. of Head
9 gpm
GPM of Water @ 30 Ft. of Head @ 1725 RPM
9 gpm
Max. SSU @ 1725 RPM
500 SUS
Self-Priming
Yes
GPM of Water @ 40 Ft. of Head
6 gpm
GPH of Water @ 5 Total Ft. of Head
1,080 gph
GPM of Water @ 10 Ft. of Head
16 gpm
Impeller
Epichlorohydrin
GPH of Water @ 30 Total Ft. of Head
540 gph
Max. Suction Lift (Ft.)
18 ft
Max. Liquid Temp. (F)
180 Degrees F
GPH of Water @ 20 Ft. of Head
720 gph
Pumps Up To (Ft.)
70 ft
RPM
1,725 RPM
GPH of Water @ 40 Total Ft. of Head
360 gph
Shaft Material
Stainless Steel
Application
Chemical Transfer, Water
Pump Used On
1/3 HP Motor
Type
Self-Priming Flexible Impeller
GPH of Water @ 10 Ft. of Head
960 gph
GPH of Water @ 1 Ft. of Head
1,200 gph
GPM of Water @ 60 Ft. of Head
1 gpm
Impeller Material
Epichlorohydrin
Housing Material
Bronze
Priming
Self-Priming
Media Temperature - Maximum
180 Degrees F
Suction Lift - Maximum
18 ft
Operating Pressure - Maximum
30 psi
Discharge Connection Type
NPT
Flow Rate @ 20 ft of Head - Maximum
12 gpm
Flow Rate @ 5 ft of Head - Maximum
18 gpm
Viscosity - Maximum
500 SUS
Flow Rate @ 10 ft of Head - Maximum
16 gpm
Flow Rate @ 1 ft of Head - Maximum
1,200 gph
Feet of Head - Maximum
70 ft
Flow Rate - Maximum
18 gpm
Media Intake Connection Type
NPT
Flow Rate @ 40 ft of Head - Maximum
6 gpm
Motor Speed - Maximum
1,725 RPM
Required Horsepower
1/2 hp
Flow Rate @ 30 ft of Head - Maximum
9 gpm
Horsepower - Maximum
1/3 hp
Motor Mounting Type
Horizontal

Description

Impeller Pump, Discharge Connection Size 3/4 in, Discharge Connection Type NPT, Feet of Head - Maximum 70 ft, Flow Rate - Maximum 18 gpm, Housing Material Bronze, Impeller Material Epichlorohydrin, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPT, Priming Self-Priming, Required Horsepower 1/2 hp, Shaft Material Stainless Steel, Shaft Outer Diameter 1/2 in, Viscosity - Maximum 500 SUS, Motor Mounting Type Horizontal, Operating Pressure - Maximum 30 psi
