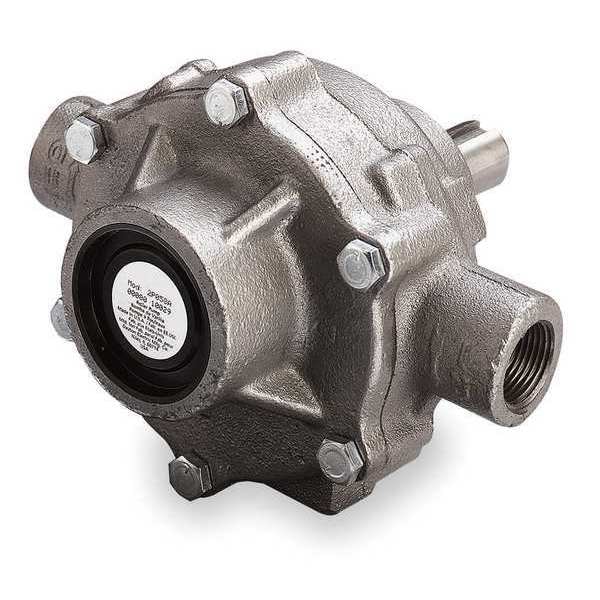

Dayton Pump, Roller Spray 3YB44 - main

Pump, Roller Spray

  • Mfr # 3YB44

  • Zoro # G2618831

product price: $519.99
/ea
Free Shipping & Returns

Key Features

Type
8-Roller
Construction
Ni-Resist
Design
A Scoopless Rotor, Provides Improved Priming with More Volume at Higher Pressures, while Prolonging Roller Life
Rotation
Counterclockwise, Facing Pump Shaft
Length (In.)
6 13/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3YB44
Zoro #
G2618831
UPC #
190735296059
Country of Origin
United States

Dimensions

Length (In.)
6 13/16 in
Height (In.)
5 15/16 in
Shaft Dia. (In.)
15/16 in
Width (In.)
6 5/8 in
Overall Width
6.6 in
Overall Length
6.8 in
Overall Height
5.9 in
Intake Connection Size
3/4 in
Shaft Outer Diameter
1 in
Discharge Connection Size
3/4 in

Details

Item
Spray Pump
Type
8-Roller
Construction
Ni-Resist
Design
A Scoopless Rotor, Provides Improved Priming with More Volume at Higher Pressures, while Prolonging Roller Life
Rotation
Counterclockwise, Facing Pump Shaft
RPM
5408001000
HP @ 0 PSI
0.330.891.56
HP @ 50 PSI
0.741.261.78
GPM @ 100 PSI
10.316.921.3
GPM @ 300 PSI
7.113.718.0
GPM @ 0 PSI
12.018.322.5
Application
For Use with Nonflammable Liquids such as Liquid Fertilizers, Insecticides, Herbicides and Soil Fumigants Up to a Maximum Temperature of 140 Degrees Fahrenheit
HP @ 200 PSI
2.263.404.2
Inlet/Outlet NPT (In.)
3/4 F
GPM @ 50 PSI
11.117.522.0
For Use With
Abrasive Wettable Powders and Emulsifiable Concentrates, Water Soluble Chemicals
HP @ 300 PSI
3.304.906.10
Housing Material
Ni-Resist
GPM @ 200 PSI
8.615.520.0
HP @ 100 PSI
1.251.952.53
Suction Lift (Ft.)
Self Priming, Up to 3 Feet Head
Includes
Double Sealed Heavy Duty Ball Bearings, Super Rollers, Viton Shaft Seals
Characteristics
Super Rollers do not Swell in Water and Maintain their Performance when Exposed to Chemical Carriers such as Xylene
Operating Pressure (Maximum)
300 psi
Motor Shaft Rotation
CCWSE
Number of Rollers
8
Flow Rate (Maximum)
22.5 gpm
Suction Lift (Maximum)
3 ft
Discharge Connection Type
NPT
Motor Speed (Maximum)
1,000 RPM
Media Temperature (Maximum)
140 Degrees F
Intake Connection Type
NPT
Priming
Self-Priming

Description

Spray Pump, Discharge Connection Size 3/4 in, Discharge Connection Type NPT, Flow Rate (Maximum) 22.5 gpm, Housing Material Ni-Resist, Intake Connection Size 3/4 in, Intake Connection Type NPT, Motor Shaft Rotation CCWSE, Motor Speed (Maximum) 1,000 RPM, Number of Rollers 8, Operating Pressure (Maximum) 300 psi, Priming Self-Priming, Shaft Outer Diameter 1 in, Suction Lift (Maximum) 3 ft, Overall Length 6.8 in, Includes Double Sealed Heavy Duty Ball Bearings, Super Rollers, Viton Shaft Seals
