  9. Pump, Sump, 0.33 HP

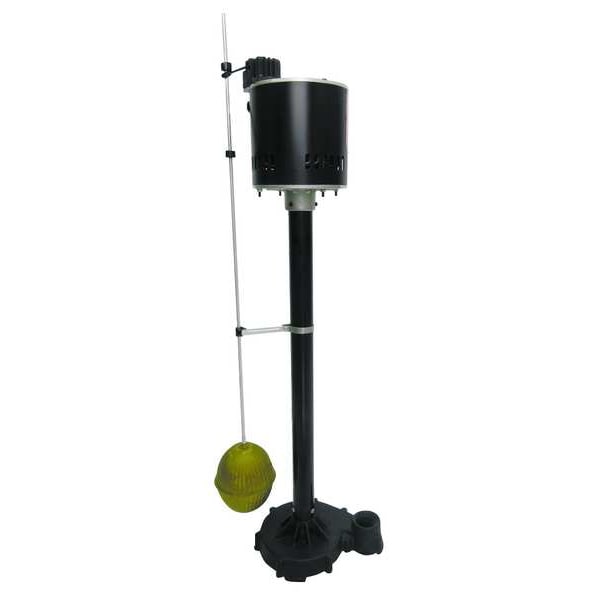

Dayton Pump, Sump, 0.33 HP 4KU60 - main

Pump, Sump, 0.33 HP

  • Mfr # 4KU60

  • Zoro # G2843127

product price: $304.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Cast iron
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4KU60
Zoro #
G2843127
UPC #
190735328576
Country of Origin
China

Dimensions

Base to Motor Height
25"
Cord Length
10 ft
Cord Length - Pumps
10 ft.
Diameter
12"
Cord Size
18/3
Base to Motor Height (In.)
25
Max. Diameter Solids
3/8 in
Max. Dia. Solids
3/8"
Min. Sump Pit Dia.
18 in
Height
30-1/2"
Discharge Dia.
1 1/4 in
Overall Height
30 1/2 in
Body Dia.
12 in
Basket Dia.
25 in
Basin Dia.
25 in
Body Diameter
12 in
Sump Pit Depth - Minimum
24 in
Sump Pit Diameter - Minimum
18 in
Solids Diameter - Maximum
3/8 in
Discharge Diameter
1 1/4 in

Details

Housing Material
Cast iron
Voltage
115
HP
1/3 hp
Switch Actuation
Vertical Float
Phase
Single
Switch Electrical Connection
Integral
Outlet
1-1/4
Body Material
Cast Iron
Switch Type
Vertical
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
37 gpm
Max. Head
18 ft
Base Material
Stainless Steel
Max. Liquid Temp.
140 Degrees F
Voltage - Pumps
115VAC
Input Phase AC
1
Pump Body Material
Cast Iron
For Use With
Water Only
GPM of Water @ 10 Ft. of Head
37
Max. Head - Pumps
18 ft.
Hz
60 Hz
Item
Pedestal Sump Pump
GPM of Water @ 15 Ft. of Head
26
Agency Compliance
cCSAus
Insulation Class
B
Off Point
5 in
Cord Type
SJT
On Point
13 in-15 in
Impeller Material
Stainless Steel
Motor Type
PSC
Discharge NPT
1-1/4" F
Duty
Intermittent
GPM of Water @ 5 Ft. of Head
46
Impeller Material - Pumps
Stainless Steel
Thermal Protection
Auto
Amps - Pumps
4.00
Amps
4 A
Switch Type - Pumps
Vertical
Motor RPM
1725
Bearing Type
Dual Ball
Float Material
Copper
Column Material
Steel
Max Head - Pumps
18 ft.
Item - Sump Pumps
Non-Submersible Sump Pump
Flow Rate @ 5 Ft. of Head
46 gpm
RPM
1,725 RPM
Alarm Included
No
Discharge
1-1/4 in FNPT
Duty Cycle
Intermittent
Rated Voltage
115V AC
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
26 gpm
NEC Cord Designation
SJT
Discharge Gender
Female
Standards
cCSAus
Liquid Temperature - Maximum
140 Degrees F
For Media Type
Clear Water, Trash Water
Horsepower
1/3 hp
Flow Rate @ 10 ft of Head
37 gpm
Volute Material
Cast Iron
Includes Alarm
No Alarm Included
Power Source
Corded Electric
Feet of Head - Maximum
18 ft
Impeller Design
Vortex
Hazardous Location Class
Not Rated
Current
4 A
Frequency
60 Hz
Rotation Speed - Maximum
1,725 RPM

Description

Pedestal Sump Pump, HP 1/3 hp, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 5 in, On Point 13 in-15 in, Body Material Cast Iron, Impeller Material Stainless Steel, Flow Rate @ 5 Ft. of Head 46 gpm, Flow Rate @ 10 Ft. of Head 37 gpm, Flow Rate @ 15 Ft. of Head 26 gpm, Max. Diameter Solids 3/8 in, Min. Sump Pit Dia. 18 in, Body Dia. 12 in, Overall Height 30 1/2 in, Basin Dia. 25 in
