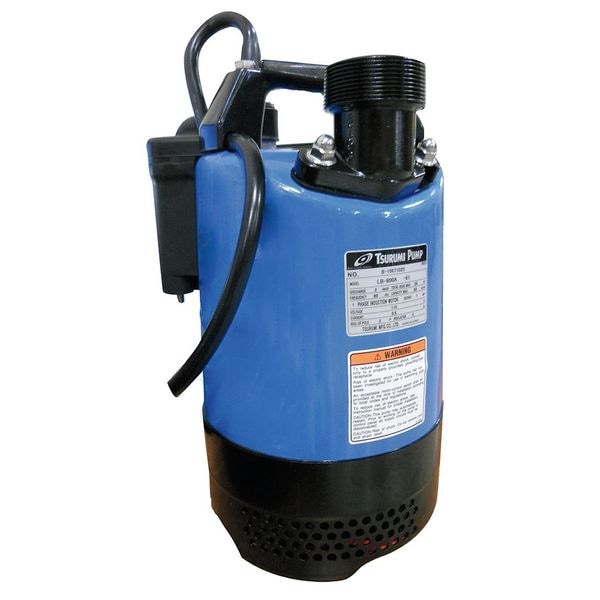

1 HP 2" Plug-In Utility Pump AUTO, 115V Electronic

  • Mfr # LB-800A-62 (AUTO, 115V)
  • Zoro # G5297196
product price:
$
976.99
/ea
Free Shipping & Returns

Key Features

Cord Length
50 ft
Discharge NPT
2"
Housing Material
Butadiene Rubber + Natural Rubber + Steel
HP
1
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LB-800A-62 (AUTO, 115V)
Zoro #
G5297196
UPC #
-
Country of Origin
Taiwan, Province of China
Discharge NPT
2"
Housing Material
Butadiene Rubber + Natural Rubber + Steel
HP
1
Hz
60 Hz
Impeller Material
Urethane Rubber
Max. Head
59 ft
Motor RPM
3300
Motor Type
PSC
Shaft Seal
Silicone Carbide
Voltage
115V
Phase
Single
GPM of Water @ 45 Ft. of Head
28
Max. Head - Pumps
59 ft.
Max. Liquid Temp.
104 Degrees F
Switch Type - Pumps
Electric
Amps
9.60
GPM of Water @ 10 Ft. of Head
77
Item
Plug-In Utility Pump
GPM of Water @ 15 Ft. of Head
72
GPM of Water @ 25 Ft. of Head
60
Item - Dewatering Pumps
Utility/Dewatering Pump
Insulation Class
E
GPM of Water @ 40 Ft. of Head
37
Handle
Top Carrying
Base Material
Steel
Pump Body Material
Die Cast Aluminum
GPM of Water @ 20 Ft. of Head
67
Switch Type
Electronic
Impeller Material - Pumps
Urethane Rubber
GPM of Water @ 30 Ft. of Head
53
Thermal Protection
Automatic
GPM of Water @ 35 Ft. of Head
45
GPM of Water @ 5 Ft. of Head
82
For Use With
Nonflammable Liquids
Agency Compliance
Etl/Cetl
Pump RPM
3300
Bearing Type
Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Amps - Pumps
9.60
Shaft Seal Material - Pumps
Silicone Carbide
Cord Type
3-Conductor STOW, Resists Water and Oil
Input Phase AC
1
Duty
Continuous
Voltage - Pumps
120V AC
Application
Nonflammable Liquids
Flow Rate @ 10 Ft. of Head
77 gpm
Discharge Gender
Male
RPM
3,300 RPM
Body Material
Aluminum
Rated Voltage
115V AC
Phase - Pumps
1
Flow Rate @ 20 Ft. of Head
67 gpm
Discharge Standard
NPT
Switch Actuation
Sensor
Flow Rate @ 15 Ft. of Head
72 gpm
Duty Cycle
Continuous
Discharge
2 in MNPT
Flow Rate @ 5 Ft. of Head
82 gpm
Pump Type
Construction Site and Residential Dewatering
Shaft Seal Material
Silicone
Rotation Speed - Maximum
3,300 RPM
Flow Rate @ 5 ft of Head
82 gpm
Feet of Head - Maximum
59 ft
Motor Housing Material
Steel
Includes Garden Hose Adapter
No Garden Hose Adapter Included
Series
LB
Frequency
60 Hz
Liquid Temperature - Maximum
104 Degrees F
Current
9.60 A
Standards
Etl/Cetl
Discharge External Standard
NPT
Power Source
Corded Electric
Flow Rate - Maximum
82 gpm
Discharge External Gender
Male
Horsepower
1 hp
For Media Type
Clear Water
Flow Rate @ 10 ft of Head
77 gpm
Volute Material
Rubber
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Dimensions

Cord Length
50 ft
Width
8 3/4 in
Diameter
8-3/4"
Height
13-7/16"
Cord Size
14/3
Min. Sump Pit Dia.
12 in
Max. Diameter Solids
1/4 in
Max. Dia. Solids
1/4"
Length
13-7/16"
Manufacturers Warranty Length
2 yr
Cord Length - Pumps
50 ft.
Width at Widest Point
8 3/4 in
Minimum Water Depth
12 in
Body Dia.
8 3/4 in
Overall Height
13 1/2 in
Discharge Dia.
2 in
Body Diameter
8 3/4 in
Discharge External Diameter
2 in
Operating Water Depth - Minimum
12 in
Depth Pumped - Minimum
3 in
Sump Pit Diameter - Minimum
12 in
Solids Diameter - Maximum
1/4 in

Description

Plug-In Utility Pump, HP 1, Rated Voltage 115V AC, Hz 60, Phase - Pumps 1, Amps 9.60, Switch Actuation Sensor, Body Material Aluminum, Impeller Material Urethane Rubber, Shaft Seal Material - Pumps Silicone Carbide, Flow Rate @ 5 Ft. of Head 82 gpm, Flow Rate @ 10 Ft. of Head 77 gpm, Flow Rate @ 15 Ft. of Head 72 gpm, Flow Rate @ 20 Ft. of Head 67 gpm, Max. Head 59 ft, Min. Sump Pit Dia. 12 in, Minimum Water Depth 12 in, Body Dia. 8 3/4 in, Width at Widest Point 8 3/4 in
