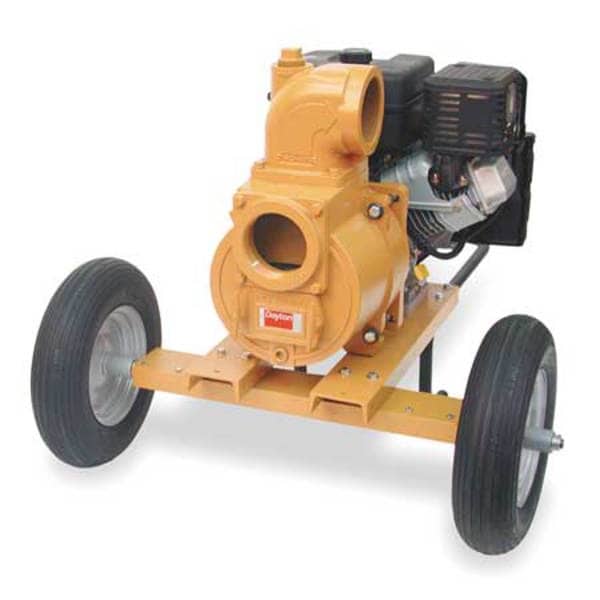

Pump, Trash, 13 HP

DAYTON| Zoro #: G2085422| Mfr #: 3P654

$3479.04 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Max. Pressure: 51 psiGPM of Water @ 60 Ft. of Head: 325Casing Adapter: Aluminum
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2085422 Mfr #: 3P654
Max. Pressure: 51 psiGPM of Water @ 60 Ft. of Head: 325
Casing Adapter: AluminumInlet: 4" NPT
Impeller Type: TrashHP: 13
Volute/Wear Plate: Cast-IronIncludes: Pneumatic Ball Bearing Wheels and Brake Feet, Two Cast Iron Pipe Nipple, Suction Strainer, Cast Iron Sleeves, Recoil Starter and Low Oil Alert
GPM of Water @ 20 Ft. of Head: 505Application: Trash
Agency Compliance: Meets California Emission CodesGPM of Water @ 90 Ft. of Head: 120
Seal Material: Buna N, Silicon CarbideLength: 44-1/2"
Temp. Range: 40 Degrees to 180 Degrees FSolids Handling Capacity: 2"
GPM of Water @ 40 Ft. of Head: 440Mechanical Seal: Silicon Carbide, Viton
Tank Capacity: 6.45 qt.Check Valve: Buna N
Sensor Type: NoneGPM of Water @ 80 Ft. of Head: 240
Engine RPM: 3600GPM of Water @ 10 Ft. of Head: 530
GPM of Water @ 50 Ft. of Head: 365GPM of Water @ 30 Ft. of Head: 520
Max. Suction Lift: 20 ft.GPM of Water @ 100 Ft. of Head: 115
GPM of Water @ 70 Ft. of Head: 260Height: 31-1/2"
Number of Impellers: 1Max. Head: 102 ft.
Roll Bar Frame: NoneMaterial of Construction: Aluminum
Item: Engine Driven Centrifugal PumpOutlet: 4" NPT
Engine Size: 389ccEngine Brand: Honda GX390 OHV
Width: 37-1/2"Impeller Material: Cast Iron
Engine/Motor Type: GasCountry of Origin (subject to change): United States

Description

Engine Driven Centrifugal Pump, 13 HP, Engine Size 389cc, Engine Brand Honda GX390 OHV, Engine/Motor Type Gas, Tank Capacity (Qt.) 6.45, NPT Port (In.) 4, Material of Construction Aluminum, Impeller Cast Iron, Impeller Type Trash, Solids Handling Capacity (In.) 2, Max. Pressure (PSI) 51, Engine RPM 3600, Max. Head (Ft.) 102, Max. Suction Lift (Ft.) 20, Roll Bar Frame None, Temp. Range (F) 40 to 180, Agency Compliance Meets California Emission Codes

Restrictions and Compliance

*3: Hazardous material
