  5. Rectangular OEM Blower, 1530 RPM, 1 Phase, Direct, Steel

This item is Discontinued.

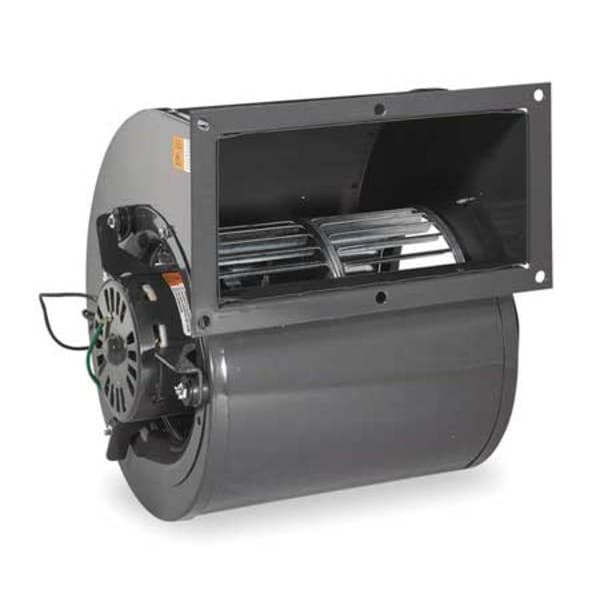

Dayton Rectangular OEM Blower, 1530 RPM, 1 Phase, Direct, Steel 70635176

Rectangular OEM Blower, 1530 RPM, 1 Phase, Direct, Steel (Discontinued)

  • Mfr # 70635176
  • Zoro # G0939976
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
70635176
Zoro #
G0939976
UPC #
190735362532
Country of Origin
United States

Dimensions

Inlet Dia.
4 9/16 in
Overall Height
9 3/4 in
Overall Width
8 3/4 in
Blower Wheel Diameter
5 1/4 in
Dimension E
12 in
Outlet Width
8 in
Dimension C
9 1/4 in
Dimension M
4 3/8 in
Overall Depth
8 3/4 in
Dimension K
5 in
Dimension F
3 5/16 in
Dimension B
9 7/8 in
Lead Length
12 in
Dimension J
9 15/32 in
Dimension L
8 13/16 in
Dimension A
8 13/16 in
Outlet Height
3 5/8 in
Blower Wheel Width
6 7/8 in
Dimension D
8 3/32 in
Inlet Diameter
4 1/2 in
Wheel Width
6 7/8 in
Wheel Dimensions
5 1/4 in Dia. x 6 7/8 in W
Wheel Diameter
5 1/4 in
Flange Size
9 15/32 in W x 5 in H
Outlet Size
3 5/8 in x 8 in
Manufacturer Warranty Length
1 yr Limited

Details

CFM @ 0.100-In. SP
428
Drive Type
Direct Drive
Full Load Amps
2.90/3.70
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
CFM @ 0.150-In. SP
411 cfm
CFM @ 0.400-In. SP
305
CFM @ 0.600-In. SP
125
Agency Compliance
CSA Certified, UL Component Recognized
Motor Insulation
Class B
Not For Use With
Not Intended For Use As Inline Blowers For Wood Burners
Mounting Position
All Position
Max. Ambient Temp.
104 Degrees F
Item
OEM Blower
CFM @ 0.200-In. SP
396
Max. Inlet Temp.
104 Degrees F
CFM @ 0.000-In. SP
465
RPM
1530
Wheel Type
Forward-Curved
CFM @ 0.500-In. SP
227
Replaces
4C448
Bearing Type
Sleeve
Housing Finish
Baked Enamel
Motor Enclosure
Open Dripproof
Hz
50/60
Housing Color
Gray
CFM @ 0.300-In. SP
352
Outlet Shape
Rectangular
Material
Steel Wheel & Steel Housing
Wheel Material
Steel
Maximum Ambient Temperature
104 Degrees F
Outlet Shape_broad
Rectangular
Includes Motor
Yes
Maximum Fan Speed
1,530 RPM
Motor Horsepower
1/15 hp
Maximum Inlet Air Temperature
104 Degrees F
Mount Type
All Position
Motor Enclosure Design_Table
Open Motor
Number of Inlets
1
Housing Material Finish
Baked Enamel
Rotation
CW
Airflow @ 0.000 in SP
465 cfm
Airflow @ 0.100 in SP
428 cfm
Mounting Orientation
Multiposition
Maximum Static Pressure
3/4 in wc
Flange Type_broad
Flanged Outlet
Motor Insulation Class
B
Replacement For
4C448
Airflow @ 0.500 in SP Range
0 to 999 cfm
Minimum Ambient Temperature
40 Degrees C
For Fan Speed (Dependent on Motor)
1,500 RPM to 1,530 RPM
Airflow @ 0.250 in SP
420 cfm
Nominal Voltage
115V AC
Airflow @ 0.500 in SP
227 cfm
Standards
CSA Certified, UL Listed
Electrical Connection
Wire Leads
Motor Type
Shaded Pole
Motor Enclosure Design
Open Dripproof (ODP)
Inlet Type
Single-Inlet
Minimum Fan Speed
1,500 RPM
Motor Speed
1,530 RPM
Includes Drive Package
Yes
Current
2.90/3.7 A
Number of Discharge Positions
4
Flange Type
Flanged
Nameplate Voltage
115V AC
Assembly
Assembled
Frequency
50/60 Hz
Airflow @ Static Pressures
465 cfm @ 0.000 in SP / 420 cfm @ 0.250 in SP
For Air Type
Clean Air
Discharge Position
All
Thermal Overload Protection
Yes
Airflow @ 0.400 in SP
305 cfm
OEM Replacement
No
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 5 1/4 in, Airflow @ 0.000 in SP 465 cfm, Airflow @ 0.100 in SP 428 cfm, Airflow @ 0.250 in SP 420 cfm, Airflow @ 0.400 in SP 305 cfm, Airflow @ 0.500 in SP 227 cfm
