This item is Discontinued.

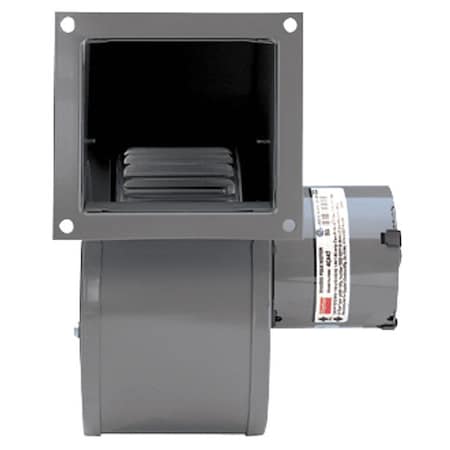

Dayton Rectangular OEM Blower, 1610 RPM, 1 Phase, Direct, Steel 70633277

Rectangular OEM Blower, 1610 RPM, 1 Phase, Direct, Steel (Discontinued)

  • Mfr # 70633277
  • Zoro # G2231564
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
70633277
Zoro #
G2231564
UPC #
190735362525
Country of Origin
United States

Dimensions

Inlet Dia.
4 5/8 in
Overall Height
7 1/2 in
Overall Width
8 3/4 in
Blower Wheel Diameter
5 1/4 in
Outlet Width
4 1/8 in
Dimension B
9 7/8 in
Dimension M
4 3/8 in
Overall Depth
6 1/2 in
Dimension E
10 7/8 in
Dimension L
4 7/8 in
Dimension F
3 5/16 in
Dimension C
7 9/16 in
Dimension D
4 3/16 in
Dimension J
5 1/2 in
Dimension A
8 7/8 in
Dimension K
5 in
Lead Length
6 in
Blower Wheel Width
2 7/8 in
Outlet Height
3 5/8 in
Flange Size
5 1/2 in W x 5 in H
Wheel Diameter
5 1/4 in
Wheel Width
2 7/8 in
Wheel Dimensions
5 1/4 in Dia. x 2 7/8 in W
Outlet Size
3 5/8 in x 4 1/8 in
Inlet Diameter
4 5/8 in
Manufacturer Warranty Length
1 yr Limited

Details

CFM @ 0.100-In. SP
250
Drive Type
Direct Drive
Full Load Amps
1.95/1.86
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
Max. Inlet Temp.
104 Degrees F
Housing Finish
Baked Enamel
CFM @ 0.200-In. SP
232
Hz
50/60
Not For Use With
Not Intended For Use As Inline Blowers For Wood Burners
Motor Insulation
Class B
Bearing Type
Sleeve
CFM @ 0.150-In. SP
241 cfm
Mounting Position
All Position
RPM
1610
CFM @ 0.400-In. SP
184
Item
OEM Blower
Replaces
4C447
Housing Color
Gray
Max. Ambient Temp.
104 Degrees F
Agency Compliance
CSA Certified, UL Component Recognized
Wheel Type
Forward-Curved
CFM @ 0.000-In. SP
265
CFM @ 0.300-In. SP
212
CFM @ 0.500-In. SP
135
Motor Enclosure
Open Dripproof
Flange Type_broad
Flanged Outlet
Includes Motor
Yes
Motor Enclosure Design_Table
Open Motor
Maximum Static Pressure
5/8 in wc
Airflow @ 0.000 in SP
265 cfm
Motor Insulation Class
B
Motor Enclosure Design
Open Dripproof (ODP)
Replacement For
4C447
Thermal Overload Protection
Yes
Mount Type
All Position
Maximum Fan Speed
1,610 RPM
Airflow @ 0.100 in SP
250 cfm
Motor Type
Shaded Pole
Rotation
CW
Mounting Orientation
Multiposition
Minimum Ambient Temperature
40 Degrees C
Maximum Ambient Temperature
104 Degrees F
Maximum Inlet Air Temperature
104 Degrees F
Material
Steel Wheel & Steel Housing
Airflow @ 0.250 in SP
240 cfm
Airflow @ 0.500 in SP
135 cfm
Number of Inlets
1
Airflow @ 0.500 in SP Range
0 to 999 cfm
Number of Discharge Positions
4
Nominal Voltage
115V AC
Airflow @ Static Pressures
265 cfm @ 0.000 in SP / 240 cfm @ 0.250 in SP
Wheel Material
Steel
Inlet Type
Single-Inlet
Flange Type
Flanged
Minimum Fan Speed
1,600 RPM
Standards
CSA Certified, UL Listed
Includes Drive Package
Yes
Nameplate Voltage
115V AC
Assembly
Assembled
Outlet Shape_broad
Rectangular
Discharge Position
All
For Fan Speed (Dependent on Motor)
1,600 RPM to 1,610 RPM
Housing Material Finish
Baked Enamel
For Air Type
Clean Air
Airflow @ 0.400 in SP
184 cfm
Outlet Shape
Rectangular
Motor Speed
1,610 RPM
Frequency
50/60 Hz
Motor Horsepower
1/20 hp
Electrical Connection
Wire Leads
Current
1.95/1.86 A
OEM Replacement
No
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Assembled, Wheel Diameter 5 1/4 in, Airflow @ 0.000 in SP 265 cfm, Airflow @ 0.100 in SP 250 cfm, Airflow @ 0.250 in SP 240 cfm, Airflow @ 0.400 in SP 184 cfm, Airflow @ 0.500 in SP 135 cfm
