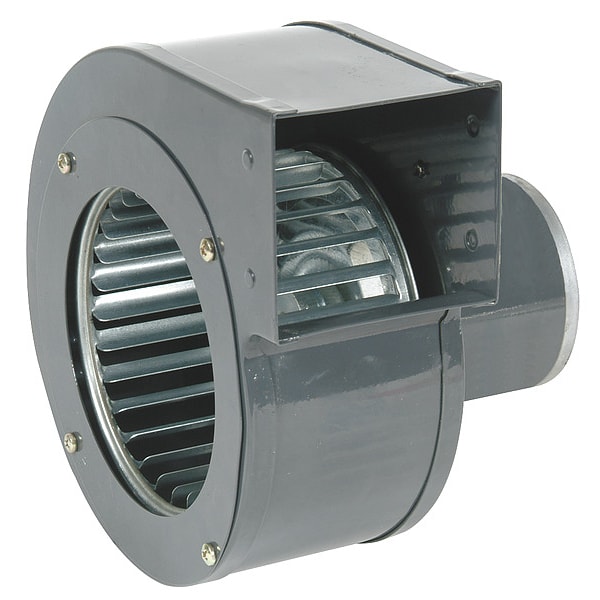

Dayton Rectangular OEM Blower, 1650 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDR1 - main

Rectangular OEM Blower, 1650 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDR1

  • Zoro # G2380804

product price: $97.75
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
156
Drive Type
Direct Drive
Full Load Amps
0.35
Housing Material
Steel
Inlet Dia.
4 3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDR1
Zoro #
G2380804
UPC #
190735147122
Country of Origin
China

Dimensions

Inlet Dia.
4 3/4 in
Overall Height
7 7/8 in
Overall Width
6 1/2 in
Blower Wheel Diameter
5 3/16 in
Dimension A
7 15/16 in
Dimension B
10 in
Dimension J
2 1/4 in
Outlet Height
2 7/8 in
Lead Length
13 in
Dimension F
3 5/16 in
Blower Wheel Width
1 7/8 in
Dimension E
7 15/16 in
Overall Depth
7 15/16 in
Dimension D
3 3/8 in
Dimension C
6 1/2 in
Outlet Width
3 1/4 in
Wheel Bore Diameter
8 mm
Housing Height
7 7/8 in
Housing Width
6 1/2 in
Wheel Diameter
5 1/8 in
Wheel Width
1 7/8 in
Manufacturer Warranty Length
1 yr Limited
Housing Depth
7 15/16 in
Shaft Diameter
8 mm
Inlet Diameter
4 3/4 in

Details

CFM @ 0.100-In. SP
156
Drive Type
Direct Drive
Full Load Amps
0.35
Housing Material
Steel
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
Housing Color
Gray
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Max. Ambient Temp.
104 Degrees F
Mounting Position
All Position
Bearing Type
Ball
RPM
1650
Housing Finish
Enamel
CFM @ 0.300-In. SP
130
Motor Enclosure
Open
Motor Insulation
Class B
Wheel Type
Forward-Curved
Replaces
2C916
CFM @ 0.000-In. SP
168
CFM @ 0.200-In. SP
144
CFM @ 0.500-In. SP
55
Item
OEM Blower
Hz
50/60
CFM @ 0.400-In. SP
118
Max. Inlet Temp.
104 Degrees F
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Motor Insulation Class
B
For Air Type
Clean Air
Housing Material Gauge
1 mm
Motor Speed
1,650 RPM
Minimum Ambient Temperature
14 Degrees F
OEM Replacement
Yes
Maximum Fan Speed
1,650 RPM
Housing Material Grade
SPCC
Corrosion Resistant
No
Housing Material Finish
Enamel
Hazardous Location Application
No
Wheel Material Finish
Galvanized
Mounting Orientation
Multiposition
Compatible Speed Control
No
Brake Horsepower
1/25 hp
Airflow @ 0.100 in SP
156 cfm
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
For High-Static Pressure Applications
No
Chemical Resistant
No
Sound Level
Not Rated
Motor Duty Class
Continuous
Maximum Ambient Temperature
104 Degrees F
Electrical Connection
Wire Leads
Airflow @ 0.250 in SP
137 cfm
Motor IP Rating
IP20
Market
Commercial, Industrial, Residential
Includes Mounting Hardware
No
Replacement For
2C916
Maximum Inlet Air Temperature
104 Degrees F
Flange Type
Non-Flanged
AMCA Fan Class
Not Rated
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Assembly
Assembled
Maximum Static Pressure
1/2 in wc
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Motor Horsepower
1/25 hp
Resistance Properties
Corrosion Resistant
Number of Inlets
1
Mount Type
All Position
Frequency
50/60 Hz
Outlet Shape
Rectangular
Nameplate Voltage
230V AC
Motor Type
Permanent Split Capacitor
Minimum Fan Speed
0 RPM
Motor Frame Designation
3.3" PSC Motor
Airflow @ 0.400 in SP
118 cfm
High-Efficiency Motor
No
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Thermal Overload Protection
Yes
Airflow @ 0.000 in SP
168 cfm
Current
0.35 A
Rotation
CW
Includes Motor
Yes
Motor Location
Out of Airstream
For Location
Indoor
Spark Resistant Construction Type
Not Rated
Speed Controllable
No
Airflow @ 0.500 in SP
55 cfm
Wheel Material
Steel
Voltage
230
Mounting
All Position

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 5 1/8 in, Airflow @ 0.000 in SP 168 cfm, Airflow @ 0.100 in SP 156 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 137 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 118 cfm, Airflow @ 0.500 in SP 55 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
