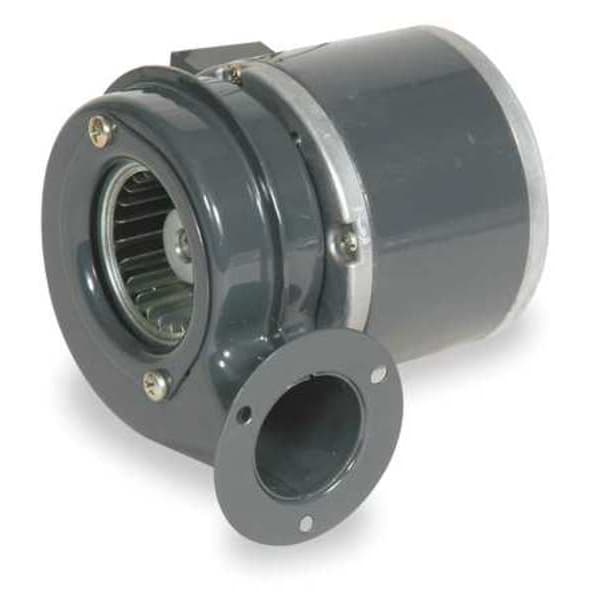

Round OEM Blower, 3300 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDN2
  • Zoro # G2667725
product price:
$
77.39
/ea

Key Features

CFM @ 0.100-In. SP
9
Drive Type
Direct Drive
Full Load Amps
0.08 A
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1TDN2
Zoro #
G2667725
UPC #
190735146958
Country of Origin
China
CFM @ 0.100-In. SP
9
Drive Type
Direct Drive
Full Load Amps
0.08 A
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
RPM
3300
Housing Color
Gray
CFM @ 0.800-In. SP
1390127011701090
Motor Enclosure
Open
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
CFM @ 0.000-In. SP
12
CFM @ 0.900-In. SP
# # 830 700
Motor Insulation
Class B
Max. Inlet Temp.
104 Degrees F
Max. Ambient Temp.
104 Degrees F
Item
OEM Blower
Hz
50/60 Hz
CFM @ 0.400-In. SP
131
Replaces
2C782
Bearing Type
Ball
CFM @ 0.300-In. SP
1335
CFM @ 0.200-In. SP
6
Wheel Type
Forward-Curved
Housing Finish
Enamel
Mounting Position
All Position
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Nameplate Voltage
115V AC
Motor Type
Permanent Split Capacitor
Motor Duty Class
Continuous
For Air Type
Clean Air
Motor Horsepower
1/250 hp
Minimum Fan Speed
0 RPM
Hazardous Location Application
No
Flange Type
Flanged
Minimum Ambient Temperature
14 Degrees F
Replacement For
2C782
Number of Inlets
1
Mounting Orientation
Multiposition
For High-Static Pressure Applications
No
Market
Commercial, Industrial, Residential
Speed Controllable
No
OEM Replacement
Yes
Electrical Connection
Wire Leads
Corrosion Resistant
No
Frequency
50/60 Hz
Motor Insulation Class
B
Brake Horsepower
1/250 hp
Housing Material Finish
Enamel
AMCA Fan Class
Not Rated
Maximum Fan Speed
3,300 RPM
Motor Location
Out of Airstream
Maximum Inlet Air Temperature
104 Degrees F
Chemical Resistant
No
Motor IP Rating
IP00
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Spark Resistant Construction Type
Not Rated
Compatible Speed Control
No
Resistance Properties
Corrosion Resistant
Airflow @ 0.000 in SP
12 cfm
Rotation
CCW
High-Efficiency Motor
No
Sound Level
Not Rated
Maximum Static Pressure
1/8 in wc
For Location
Indoor
Outlet Shape
Round
Motor Frame Designation
3.3" PSC motor
Includes Mounting Hardware
No
Housing Material Gauge
0.8 mm
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Includes Motor
Yes
Mount Type
All Position
Current
0.08 A
Motor Speed
3,300 RPM
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Airflow @ 0.100 in SP
9 cfm
Thermal Overload Protection
Yes
Housing Material Grade
SPCC
Maximum Ambient Temperature
104 Degrees F
Assembly
Assembled
Wheel Material Finish
Galvanized
Wheel Material
Steel
Mounting
All Position
Voltage
115

Dimensions

Inlet Dia.
1 7/8 in
Overall Height
3 7/8 in
Overall Width
3 15/16 in
Blower Wheel Diameter
2 in
Dimension A
4 in
Dimension L
1 5/8 in
Dimension B
4 3/16 in
Dimension D
1 5/16 in
Dimension E
3 7/8 in
Blower Wheel Width
1 7/8 in
Dimension J
2 1/4 in
Outlet Dia.
1 1/4 in
Dimension C
4 1/16 in
Dimension M
1 7/16 in
Overall Depth
4 in
Lead Length
13 in
Housing Width
3 15/16 in
Manufacturer Warranty Length
1 yr Limited
Housing Depth
4 in
Shaft Diameter
8 mm
Wheel Diameter
2 in
Inlet Diameter
1 7/8 in
Housing Height
3 7/8 in
Wheel Bore Diameter
8 mm
Flange Size
2 1/4 in Dia.
Wheel Width
1 7/8 in
Outlet Diameter
1 1/4 in
Fits Chest Size
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 2 in, Airflow @ 0.000 in SP 12 cfm, Airflow @ 0.100 in SP 9 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP Not Applicable, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable
