  9. Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel 1 Speed

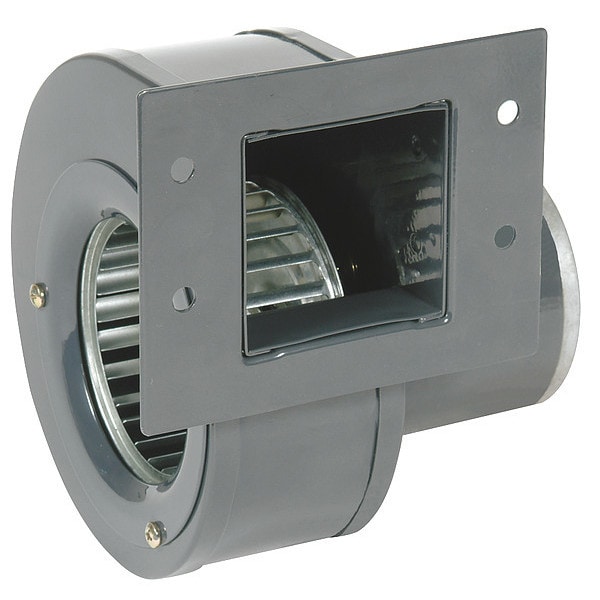

Dayton Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDP6 - main

Rectangular OEM Blower, 2880 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDP6

  • Zoro # G1828741

product price: $98.19
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
128
Drive Type
Direct Drive
Full Load Amps
0.33
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDP6
Zoro #
G1828741
UPC #
190735147085
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Dia.
3 1/4 in
Overall Height
6 1/2 in
Overall Width
5 5/8 in
Blower Wheel Diameter
3 3/4 in
Blower Wheel Width
1 7/8 in
Dimension M
1 1/2 in
Dimension B
7 1/4 in
Dimension C
5 5/8 in
Dimension F
3-5/16"
Dimension K
4 in
Dimension E
6 9/16 in
Lead Length
13 in
Dimension J
5 1/8 in
Dimension A
6 9/16 in
Overall Depth
6 1/2 in
Outlet Height
2 1/2 in
Outlet Width
2 1/2 in
Dimension D
2 5/8 in
Dimension L
4 1/8 in
Wheel Diameter
3 3/4 in
Housing Width
5 5/8 in
Housing Height
6 1/2 in
Flange Size
5 1/8 in W x 4 in H
Shaft Diameter
8 mm
Wheel Bore Diameter
8 mm
Inlet Diameter
3 1/4 in
Housing Depth
6 1/2 in
Manufacturer Warranty Length
1 yr Limited
Wheel Width
1 7/8 in

Details

CFM @ 0.100-In. SP
128
Drive Type
Direct Drive
Full Load Amps
0.33
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
230V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 0.000-In. SP
133
CFM @ 0.200-In. SP
126
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
RPM
2880
CFM @ 0.300-In. SP
119
Bearing Type
Ball
Max. Inlet Temp.
104 Degrees F
Mounting Position
All Position
Motor Insulation
Class B
Housing Finish
Enamel
Housing Color
Gray
Wheel Type
Forward-Curved
CFM @ 0.500-In. SP
105
Max. Ambient Temp.
104 Degrees F
Item
OEM Blower
Replaces
2C915
Hz
50/60
Motor Enclosure
Open
CFM @ 0.400-In. SP
112
Corrosion Resistant
No
Motor IP Rating
IP20
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, The Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Rotation
CW
Airflow @ 0.400 in SP
112 cfm
Current
0.33 A
Motor Insulation Class
B
Frequency
50/60 Hz
Assembly
Assembled
Motor Frame Designation
3.3" PSC Motor
Compatible Speed Control
No
Nameplate Voltage
230V AC
Wheel Material Finish
Galvanized
Airflow @ 0.000 in SP
133 cfm
Brake Horsepower
1/30 hp
Includes Mounting Hardware
No
Resistance Properties
Corrosion Resistant
Airflow @ 0.500 in SP
105 cfm
For High-Static Pressure Applications
No
Chemical Resistant
No
Thermal Overload Protection
Yes
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
AMCA Fan Class
Not Rated
Motor Speed
2,880 RPM
Motor Horsepower
1/30 hp
Housing Material Grade
SPCC
Electrical Connection
Wire Leads
Motor Location
Out of Airstream
Hazardous Location Application
No
Maximum Static Pressure
1 1/8 in wc
Motor Duty Class
Continuous
Replacement For
2C915
Includes Motor
Yes
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Number of Inlets
1
Market
Commercial, Industrial, Residential
Airflow @ 0.250 in SP
119 cfm
Motor Type
Permanent Split Capacitor
Sound Level
Not Rated
For Location
Indoor
Housing Material Gauge
1 mm
Maximum Fan Speed
2,880 RPM
Spark Resistant Construction Type
Not Rated
OEM Replacement
Yes
Outlet Shape
Rectangular
Airflow @ 0.100 in SP
128 cfm
Flange Type
Flanged
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Mounting Orientation
Multiposition
Housing Material Finish
Enamel
Minimum Fan Speed
0 RPM
For Air Type
Clean Air
Speed Controllable
No
Maximum Inlet Air Temperature
104 Degrees F
Mount Type
All Position
Maximum Ambient Temperature
104 Degrees F
High-Efficiency Motor
No
Minimum Ambient Temperature
14 Degrees F
Wheel Material
Steel
Mounting
All Position
Voltage
230

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 3 3/4 in, Airflow @ 0.000 in SP 133 cfm, Airflow @ 0.100 in SP 128 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 119 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 112 cfm, Airflow @ 0.500 in SP 105 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
