  9. Rectangular OEM Blower, 3150 RPM, 1 Phase, Direct Drive, Steel 1 Speed

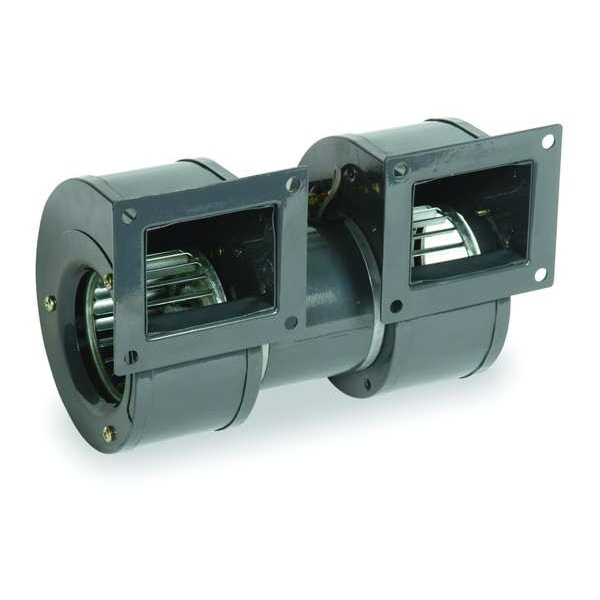

Dayton Rectangular OEM Blower, 3150 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDP8 - main

Rectangular OEM Blower, 3150 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDP8

  • Zoro # G1909932

product price: $109.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
178
Drive Type
Direct Drive
Full Load Amps
0.72
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDP8
Zoro #
G1909932
UPC #
190735147108
Country of Origin
China

Dimensions

Inlet Dia.
2 5/8 in
Overall Height
5 3/4 in
Overall Width
9 3/4 in
Blower Wheel Diameter
2 15/16 in
Dimension C
8 7/16 in
Dimension L
3 3/8 in
Blower Wheel Width
1 7/8 in
Dimension M
2 7/8 in
Lead Length
13 in
Dimension J
4 1/16 in
Overall Depth
5 3/8 in
Dimension F
3 5/16 in
Dimension D
2 3/4 in
Outlet Width
2 11/16 in
Dimension A
5 3/8 in
Dimension B
6 3/8 in
Dimension K
3 9/16 in
Outlet Height
2 1/8 in
Dimension E
6 3/8 in
Wheel Diameter
2 7/8 in
Flange Size
4 1/16 in W x 3 9/16 in H
Manufacturer Warranty Length
1 yr Limited
Housing Depth
5 3/8 in
Wheel Bore Diameter
8 mm
Wheel Width
1 7/8 in
Housing Height
5 3/4 in
Housing Width
8 7/16 in
Shaft Diameter
8 mm
Inlet Diameter
2 5/8 in

Details

CFM @ 0.100-In. SP
178
Drive Type
Direct Drive
Full Load Amps
0.72
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Rectangular
With Flange
Yes
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
Yes
CFM @ 0.400-In. SP
140
Motor Insulation
Class B
Motor Enclosure
Open
Bearing Type
Ball
CFM @ 0.300-In. SP
158
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
RPM
3150
Replaces
4C015
Mounting Position
All Position
Item
OEM Blower
CFM @ 0.000-In. SP
184
CFM @ 0.500-In. SP
120
Hz
50/60
Housing Color
Gray
Housing Finish
Enamel
Max. Ambient Temp.
104 Degrees F
CFM @ 0.200-In. SP
170
Wheel Type
Forward-Curved
Max. Inlet Temp.
104 Degrees F
Motor Insulation Class
B
Assembly
Assembled
Maximum Ambient Temperature
104 Degrees F
OEM Replacement
Yes
Housing Material Grade
SPCC
Outlet Shape
Rectangular
Maximum Static Pressure
3/4 in wc
Sound Level
Not Rated
Nameplate Voltage
115V AC
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
For Location
Indoor
Airflow @ 0.250 in SP
161 cfm
Motor Frame Designation
3.3" PSC Motor
Airflow @ 0.100 in SP
178 cfm
Housing Material Gauge
0.8 mm
Spark Resistant Construction Type
Not Rated
Mounting Orientation
Multiposition
For Air Type
Clean Air
Thermal Overload Protection
Yes
Electrical Connection
Wire Leads
Motor Type
Permanent Split Capacitor
Motor IP Rating
IP20
For High-Static Pressure Applications
No
Motor Speed
3,150 RPM
Replacement For
4C015
Includes Mounting Hardware
No
Airflow @ 0.500 in SP
120 cfm
Resistance Properties
Corrosion Resistant
Frequency
50/60 Hz
High-Efficiency Motor
No
Housing Material Finish
Enamel
Rotation
CW/CCW
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Double Blower Provides Smooth and Quiet Operation
Number of Inlets
1
Airflow @ 0.000 in SP
184 cfm
Corrosion Resistant
No
Maximum Inlet Air Temperature
104 Degrees F
AMCA Fan Class
Not Rated
Compatible Speed Control
No
Airflow @ 0.400 in SP
140 cfm
Minimum Fan Speed
0 RPM
Speed Controllable
No
Maximum Fan Speed
3,150 RPM
Brake Horsepower
1/40 hp
Includes Motor
Yes
Mount Type
All Position
Motor Duty Class
Continuous
Motor Horsepower
1/40 hp
Flange Type
Flanged
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Market
Commercial, Industrial, Residential
Motor Location
Out of Airstream
Minimum Ambient Temperature
14 Degrees F
Chemical Resistant
No
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Wheel Material Finish
Galvanized
Current
0.72 A
Hazardous Location Application
No
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Wheel Material
Steel
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 2 7/8 in, Airflow @ 0.000 in SP 184 cfm, Airflow @ 0.100 in SP 178 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP 161 cfm, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP 140 cfm, Airflow @ 0.500 in SP 120 cfm, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable, Airflow @ 1.250 in SP Not Applicable
