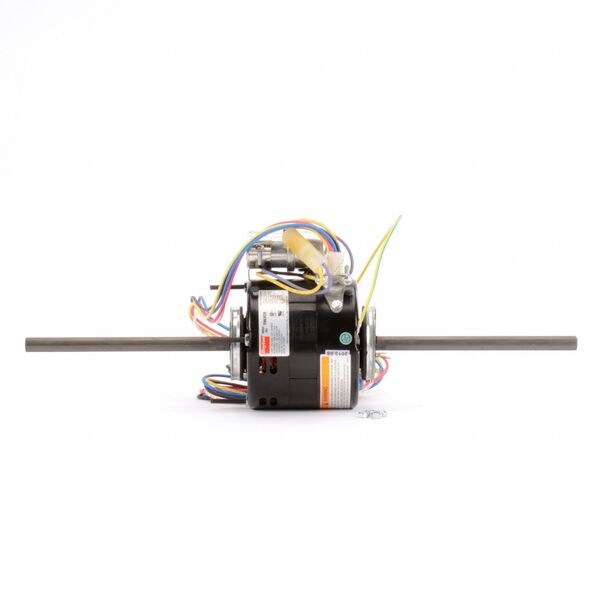

Room Air Cond Mtr, PSC, OAO, 1550 RPM

DAYTON| Zoro #: G1783074| Mfr #: 5WJC8

$61.95 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Bolt Circle Dia.: 3-7/8"
Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Sub Application: Room Air Conditioner
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1783074 Mfr #: 5WJC8
Bolt Circle Dia.: 3-7/8"Voltage Compatibility: 115, 120, 115/208-230, 115/230, 120/240
Motor Sub Application: Room Air ConditionerMotor Bearings: Sleeve
Motor Shaft Rotation: CW/CCWLength Less Shaft: 4-15/16"
Shaft Dia.: 1/2"Includes: 5 MFD 370VAC Capacitor
Lead Length: 60"Capacitor Required: Yes
Shaft Length: 6-3/4"Voltage: 115
Frame: Non-StandardHP: 1/8
Motor Application: HVAC/RMotor Design: Permanent Split Capacitor
Full Load Amps: 2.0Hz: 60
RPM Range: 1501-1600Nameplate RPM: 1550
No. of Speeds: 4Motor Thermal Protection: Auto
Resilient Ring Dia.: 2-1/2"Duty: Continuous
Motor Shaft Design: FlatIns. Class: B
Body Dia.: 4-13/32"Max. Ambient Temp.: 40 Degrees C
Motor Service Factor: 1.00Phase: 1
Mounting Stud Pattern: 2-3/4" x 2-3/4"Standards: UL Recognized (E37403), CSA Certified (244617)
Motor Mounting Type: StudRing to Ring Center: 4-1/2"
Stud Size: 10-32 UNFItem: Room Air Conditioner Motor
Motor Enclosure Design: Open Air-OverCountry of Origin (subject to change): China

Description

Room Air Conditioner Motor, Permanent Split Capacitor, Open Air-Over, Continuous, 1/8 HP, 1550 Nameplate RPM, Voltage 115, Non-Standard Frame, Service Factor 1.0, 60 Hz, Full Load Amps 2.0, Thermal Protection Auto, Insulation Class B, Max. Ambient Temp. 40 Degrees C, Number of Speeds 4, CW/CCW Rotation, 1 Phase, Stud Mounting, Sleeve Bearings, Body Dia. 4-13/32 In., Length Less Shaft 4-15/16 In., Shaft Type Flat, Shaft Dia. 1/2 In., Shaft Length 6-3/4 In. Ea., Stud Pattern 2-3/4 x 2-3/4 In.
