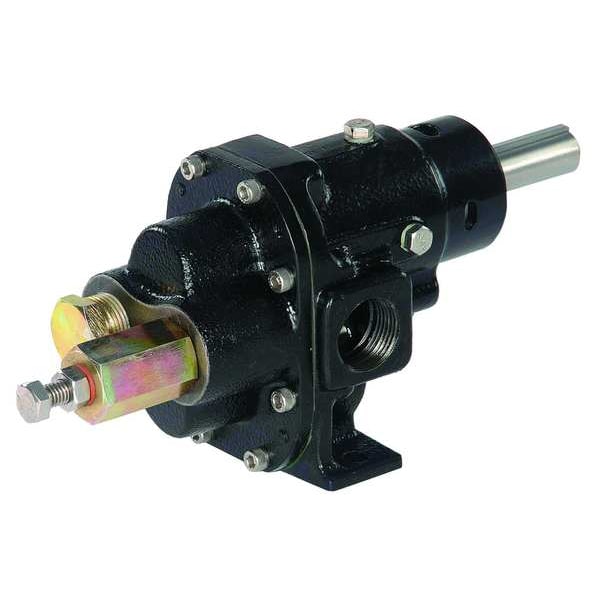

Rotary Gear Pump Head, 1 1/4 In., 1 1/2 HP

DAYTON| Zoro #: G1679824| Mfr #: 4KHG3

$556.00 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1679824 Mfr #: 4KHG3
Max. Viscosity: 550 SSUMax. Pressure: 125 psi
Pump RPM: 1725Item: Rotary Gear Pump Head
Design: PedestalHP @ Free Flow: 1-1/2
HP @ 100 PSI: 3GPM @ 125 PSI @ 1725 RPM: 23.3
Seal: Mechanical with Stainless Steel, Viton, Carbon/CeramicPump Body Material: Cast Iron
GPM @ Freeflow: 24.8GPM @ 25 PSI: 24.7
GPM @ 50 PSI: 24.5HP @ 50 PSI: 2
GPM @ 75 PSI: 24.3GPM @ 100 PSI: 23.9
GPM @ 125 PSI: 23.3Temp. Range: -20 Degrees to 210 Degrees F
Gear: Steel SpurRelief Valve: With
Shaft Material: SteelLength: 5-1/8"
Height: 4"HP @ Free Flow @ 1725 RPM: 1-1/2
GPM @ Freeflow @ 1725 RPM: 24.8Shaft Height: 3-9/16"
Port Size: 1-1/4"Suction Lift @ 1725 RPM: 19.5 ft.
O-Ring Material: VitonHP @ 25 PSI: 1-1/2
Suction Lift: 19.5 ft.HP @ 125 PSI: 3
Width: 11-7/8"Duty Rating: Heavy
Shaft Dia.: 0.750"HP @ 75 PSI: 2
HP @ 125 PSI @ 1725 RPM: 3Country of Origin (subject to change): India

Product Description

Rotary Gear Pump Head, Duty Rating Heavy, Pedestal, Pump Body Material Cast Iron, Port Size 1-1/4 In., Recommended Motor HP -, Pump RPM 1725, Temp. Range -20 Degrees to 210 Degrees F, Max. Pressure 125 psi, Max. Viscosity 550 SSU, Gear Steel Spur, Length 5-1/8 In., Width 11-7/8 In., Height 4 In., O-Ring Material Viton, Relief Valve With, Seal Mechanical With Stainless Steel, Viton, Carbon/Ceramic, Shaft Dia. 0.750 In., Shaft Height 3-9/16 In., Shaft Material Steel, GPM @ Freeflow 24.8
