  9. Round OEM Blower, 2680 RPM, 1 Phase, Direct Drive, Aluminum

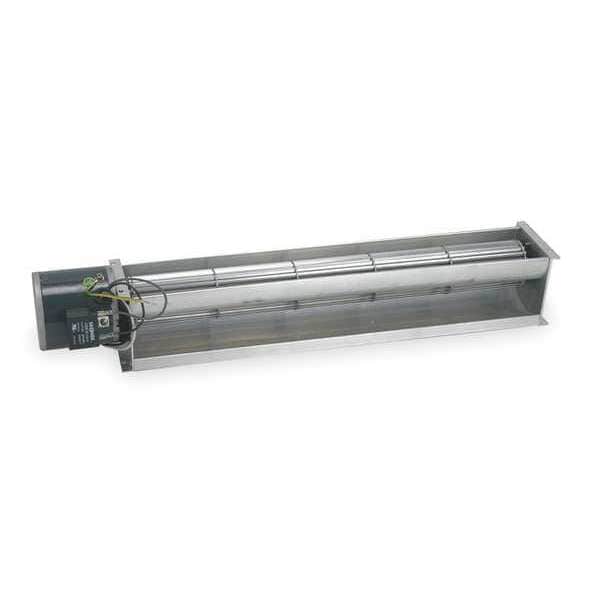

Dayton Round OEM Blower, 2680 RPM, 1 Phase, Direct Drive, Aluminum 3HMK2 - main

Round OEM Blower, 2680 RPM, 1 Phase, Direct Drive, Aluminum

  • Mfr # 3HMK2

  • Zoro # G3018942

product price: $181.99
/ea
Free Shipping & Returns

Key Features

CFM @ 0.100-In. SP
320
Drive Type
Direct Drive
Full Load Amps
0.71
Housing Material
Aluminum
Overall Height
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3HMK2
Zoro #
G3018942
UPC #
190735290132
Country of Origin
China

Dimensions

Overall Height
3 1/2 in
Overall Width
22 7/8 in
Blower Wheel Diameter
2 3/8 in
Dimension A
4 1/8 in
Dimension C
22 7/8 in
Overall Depth
4 1/8 in
Blower Wheel Width
17 7/8 in
Dimension B
3 7/8 in
Dimension E
10 7/8 in
Dimension D
19 5/8 in
Lead Length
13 in
Dimension W
19 1/4 in
Housing Height
3.8 in
Housing Width
4.1 in
Wheel Diameter
2 3/8 in
Wheel Width
17.8 in
Housing Depth
22.8 in

Details

CFM @ 0.100-In. SP
320
Drive Type
Direct Drive
Full Load Amps
0.71
Housing Material
Aluminum
Phase
1
Blower Item
Transflow Blower
Blower Outlet Shape
Round
With Flange
No
Blower Motor Type
Permanent Split Capacitor
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Mounting Position
All Position
Motor Enclosure
Open Dripproof
CFM @ 0.000-In. SP
373
Wheel Type
Forward-Curved
CFM @ 0.200-In. SP
288
Item
OEM Blower
Max. Inlet Temp.
104 Degrees F
Max. Ambient Temp.
104 Degrees F
Bearing Type
Permanently Lubricated Ball
Motor Insulation
Class B
RPM
2680
Hz
50/60
Airflow @ 0.100 in SP
320 cfm
Maximum Static Pressure
1/2 in wc
Features
Economical Air Delivery for General Heating, Cooling, Ventilating, or Component Cooling, Featuring Continuous-Duty Operation and Automatic Thermal Protection, Permanently Lubricated Sleeve Bearings on the Motor and Blower Housing Significantly Reduce Motor Hum Transmission into Equipment, The Extruded Aluminum, 1-Pc. Housing Keeps the Blower Wheel and Motor Properly Aligned, Reducing Vibration, the Heavy-Duty, Shaded-Pole Motor Features an Oversized Stack to Enhance Cooling and Product Life, and a Durable Metal Cooling-Fan Blade
Thermal Overload Protection
Yes
For Ventilation Type
Exhaust
Nameplate Voltage
115V AC
Outlet Shape
Round
Standards
CE Compliant, UL/cUL Listed, RoHS Compliant
Frequency
50/60 Hz
Housing Construction
One Piece
Flange Type
Non-Flanged
Blower Type
Transflow Blower
Motor Speed
2,680 RPM
Current
0.71 A
Application
Corn Stoves, Electronic Equipment, Exhaust or Ventilate Cabinets, Fireplace Inserts, Office Machines, Pellet Stoves
Airflow @ 0.200-In. SP
288 cfm
Motor Duty Class
Continuous
Maximum Inlet Air Temperature
104 Degrees F
Motor Type
Permanent Split Capacitor
Motor Horsepower
1/40 hp
Maximum Ambient Temperature
104 Degrees F
Mounting Orientation
Multiposition
Assembly
Assembled
Airflow @ 0.000 in SP
373 cfm
Wheel Material
Aluminum
Motor Insulation Class
B

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Assembly Assembled, Wheel Diameter 2 3/8 in, Airflow @ 0.000 in SP 373 cfm, Airflow @ 0.100 in SP 320 cfm, Airflow @ 0.200-In. SP 288 cfm, Airflow @ 0.250 in SP Not Applicable, Maximum Static Pressure 1/2 in wc, Maximum Inlet Air Temperature 104 Degrees F, Bearing Type Permanently Lubricated Ball, Wheel Material Aluminum, Housing Material Aluminum, Wheel Width 17.8 in, Outlet Shape Round, Flange Type Non-Flanged

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
