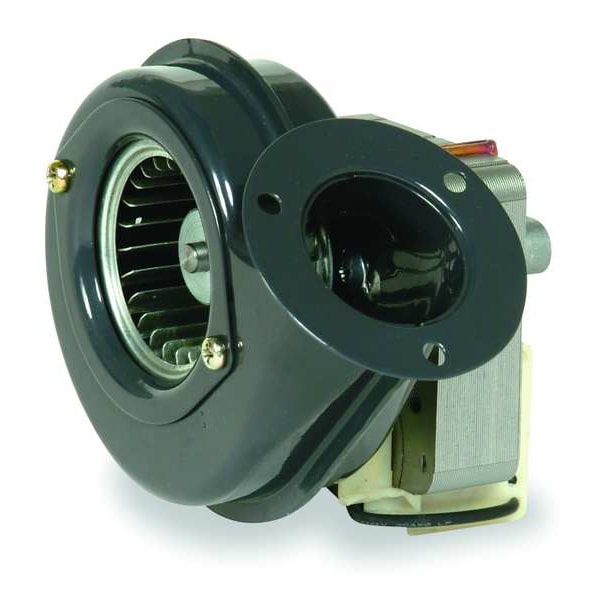

Dayton Round OEM Blower, 3394 RPM, 1 Phase, Direct Drive, Steel 1 Speed 1TDN1 - main

Round OEM Blower, 3394 RPM, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 1TDN1

  • Zoro # G2418902

product price:  $66.59
/ea

Key Features

CFM @ 0.100-In. SP
9.3
Drive Type
Direct Drive
Full Load Amps
0.29
Housing Material
Steel
Includes
Discharge Mounting Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1TDN1
Zoro #
G2418902
UPC #
190735146941
Country of Origin
Taiwan, Province of China

Dimensions

Inlet Dia.
1 7/8 in
Overall Height
3 3/4 in
Overall Width
3 3/16 in
Blower Wheel Diameter
2 in
Dimension L
1 5/8 in
Dimension B
4 1/8 in
Dimension J
2 1/4 in
Lead Length
13 in
Dimension E
3 7/8 in
Overall Depth
4 in
Dimension A
4 in
Dimension C
3 3/16 in
Dimension M
1 7/16 in
Blower Wheel Width
1 7/8 in
Outlet Dia.
1 1/4 in
Dimension D
1 3/8 in
Shaft Diameter
6 mm
Inlet Diameter
1 7/8 in
Wheel Bore Diameter
6 mm
Outlet Diameter
1 1/4 in
Wheel Width
1 7/8 in
Housing Width
3 3/16 in
Housing Depth
4 in
Flange Size
2 1/4 in Dia.
Housing Height
3 3/4 in
Wheel Diameter
2 in
Manufacturer Warranty Length
1 yr Limited

Details

CFM @ 0.100-In. SP
9.3
Drive Type
Direct Drive
Full Load Amps
0.29
Housing Material
Steel
Includes
Discharge Mounting Flange
Number of Speeds
1
Phase
1
Blower Item
OEM Specialty Blower
Blower Outlet Shape
Round
With Flange
Yes
Blower Motor Type
Shaded Pole
Blower Voltage
115V AC
Blower Thermal Protection
Auto
Blower Conduit Box
No
Motor Insulation
Class B
CFM @ 0.000-In. SP
13
Housing Color
Gray
RPM
3394
Housing Finish
Enamel
Bearing Type
Ball
Motor Enclosure
Open
Max. Ambient Temp.
104 Degrees F
Mounting Position
All Position
Wheel Type
Forward-Curved
Item
OEM Blower
Max. Inlet Temp.
104 Degrees F
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Hz
60
Replaces
4C759
Motor Frame Designation
C-frame motor
Mount Type
All Position
High-Efficiency Motor
No
Assembly
Assembled
Housing Material Gauge
0.8 mm
Wheel Material Finish
Galvanized
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Maximum Ambient Temperature
104 Degrees F
Flange Type
Flanged
Thermal Overload Protection
Yes
Mounting Orientation
Multiposition
Market
Commercial, Industrial, Residential
Electrical Connection
Wire Leads
Airflow @ 0.000 in SP
13 cfm
Airflow @ 0.100 in SP
9 cfm
Motor Type
Shaded Pole
Maximum Fan Speed
3,394 RPM
Minimum Fan Speed
0 RPM
Nameplate Voltage
115V AC
Rotation
CCW
Motor Horsepower
1/500 hp
Chemical Resistant
No
Application
Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating
Minimum Ambient Temperature
14 Degrees F
OEM Replacement
Yes
Replacement For
4C759
Motor IP Rating
IP00
Includes Motor
Yes
Outlet Shape
Round
Housing Material Finish
Enamel
For Location
Indoor
Number of Inlets
1
Corrosion Resistant
No
Housing Material Grade
SPCC
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
Compatible Speed Control
No
Features
Noise and Vibration are Held to a Minimum to Maintain cfm at Higher Static Pressures, the Motor has Cast Aluminum End Shields for Greater Heat Dissipation and Protection, Resulting in Less Downtime and Longer Service Life, This Dynamically Balanced Blower Provides Smooth and Quiet Operation
Maximum Static Pressure
1/8 in wc
Motor Location
Out of Airstream
Motor Duty Class
Continuous
Hazardous Location Application
No
Resistance Properties
Corrosion Resistant
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Motor Insulation Class
B
Includes Mounting Hardware
No
Brake Horsepower
1/500 hp
Sound Level
Not Rated
Motor Speed
3,380 RPM
For Air Type
Clean Air
Current
0.29 A
Frequency
60 Hz
Maximum Inlet Air Temperature
104 Degrees F
For High-Static Pressure Applications
No
Speed Controllable
No
Spark Resistant Construction Type
Not Rated
AMCA Fan Class
Not Rated
Wheel Material
Steel
Mounting
All Position
Voltage
115

Description

OEM Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 2 in, Airflow @ 0.000 in SP 13 cfm, Airflow @ 0.100 in SP 9 cfm, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP Not Applicable, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable
