  9. Shallow Well Jet Pump, SS, 1/2 HP

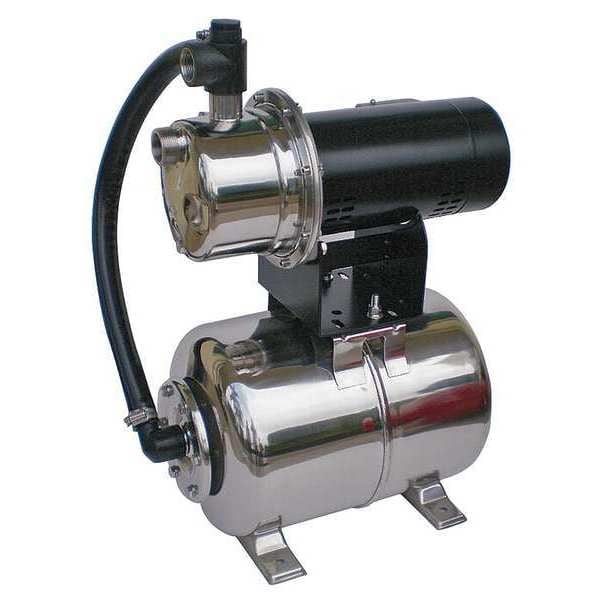

Dayton Shallow Well Jet Pump, SS, 1/2 HP 4HFA2 - main

Shallow Well Jet Pump, SS, 1/2 HP

  • Mfr # 4HFA2

  • Zoro # G0290141

product price: $1,072.99
/ea
Free Shipping & Returns

Key Features

HP
1/2 hp
Inlet
1-1/4 in NPT
Includes
Pump, Tank
Amps
9.6/4.8
Flow Rate @ 10 Ft. Lift @ 40 PSI
3.5 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4HFA2
Zoro #
G0290141
UPC #
190735325278
Country of Origin
China

Dimensions

Length (In.)
25
Width (In.)
25
Height (In.)
28
Overall Width
9 3/4 in
Overall Length
17 5/8 in
Inlet Dia.
1 1/4 in
Overall Height
25 1/4 in
Inlet Diameter
1 1/4 in
Discharge Diameter
1 in
Manufacturer Warranty Length
1 yr

Details

HP
1/2 hp
Item
Shallow Well Jet Pump System
Inlet
1-1/4 in NPT
Includes
Pump, Tank
Amps
9.6/4.8
Flow Rate @ 10 Ft. Lift @ 40 PSI
3.5 gpm
Discharge
1 in NPT
Max. Case Pressure (PSI)
141
Motor Type
Capacitor Start
Outlet
1" NPT
GPM of Water @ 5 Ft @ 30, 50 PSI
8.1 2.3
GPM of Water @ 15 Ft @ 30, 50 PSI
6.6 1.6
Tank PSI
28
Tank (Gal.)
6
Shut Off (PSI)
60
GPM of Water @ 10 Ft @ 30, 50 PSI
7.2/1.7
Voltage
115/230
Max. Inlet Pressure (PSI)
75
GPM of Water @ 20 Ft @ 30, 50 PSI
5.7/1.2
Suction Lift (Ft.)
0-25
Seal Type
Mechanical
Application
Transfer
Discharge Standard
NPT
Flow Rate @ 10 Ft. Lift @ 50 PSI
1.7 gpm
Tank Capacity
6 gal
Shut Off Pressure
60 psi
Flow Rate @ 10 Ft. Lift @ 30 PSI
7.2 gpm
Tank Bladder Pressure
28 psi
Max. Suction Lift
25 ft
Max. Inlet Pressure
75 psi
Inlet Standard
NPT
Rated Voltage
115/230V AC
Standards
CSA C US, NSF 61
Media Temperature - Maximum
95 Degrees F
Series
HWS
Installation
Floor Standing
Media Temperature - Minimum
5 Degrees C
For Media Type
Clear Water
Pressure Switch Setting - Minimum
30 psi
Pressure Switch Setting - Maximum
50 psi
Pump Technology
Centrifugal
Product Type
Shallow Well Jet Pump System
Inlet Gender
Female
Shut Off Pressure - Maximum
60 psi
Horsepower
1/2 hp
Full Load Current
9.6/4.8 A
Suction Lift - Maximum
25 ft
Power Source
Corded Electric
Discharge Gender
Female
Inlet Pressure - Maximum
75 psi
Phase
Single
Includes Ejector
No Ejector Included
Frequency
60 Hz
Flow Rate - Maximum
13.2 gpm
Priming
Self-Priming

Description

Shallow Well Jet Pump System, HP 1/2 hp, Rated Voltage 115/230V AC, Amps 9.6/4.8, Flow Rate @ 10 Ft. Lift @ 30 PSI 7.2 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 3.5 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 1.7 gpm, Max. Suction Lift 25 ft, Tank Capacity 6 gal, Tank Bladder Pressure 28 psi, Shut Off Pressure 60 psi, Max. Inlet Pressure 75 psi, Inlet 1-1/4 in NPT, Discharge 1 in NPT, Overall Length 17 5/8 in, Overall Width 9 3/4 in, Overall Height 25 1/4 in, Includes Pump, Tank

Restrictions
