  9. Shallow Well Jet Pump Sys, 1/3HP, 115/230V

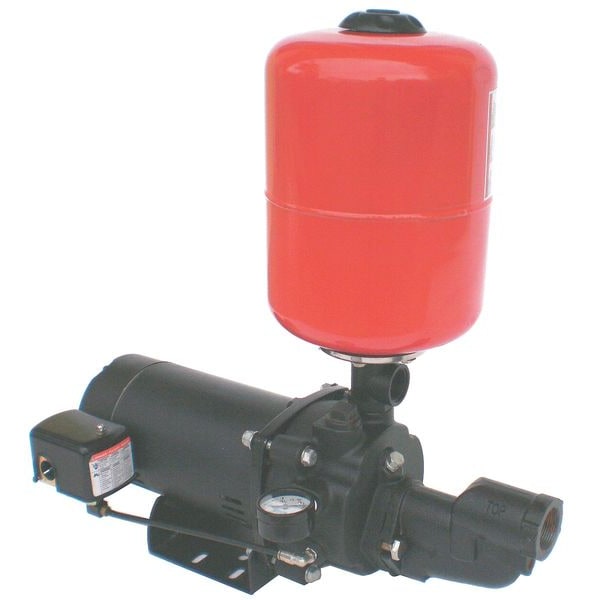

Dayton Shallow Well Jet Pump Sys, 1/3HP, 115/230V 5UXK7 - main

Shallow Well Jet Pump Sys, 1/3HP, 115/230V

  • Mfr # 5UXK7

  • Zoro # G0638111

product price: $591.99
/ea
Free Shipping & Returns

Key Features

HP
1/3 hp
Inlet
1-1/4 in NPT
Amps
10/4.8
Includes
1 x 3/4 in Adaptor, Ejector, Nozzle, Pump, Tank, Venturi
Flow Rate @ 10 Ft. Lift @ 40 PSI
4.5 gpm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UXK7
Zoro #
G0638111
UPC #
190735353462
Country of Origin
China

Dimensions

Length (In.)
20.1875
Width (In.)
10.6875
Height (In.)
21.875
Overall Width
9 1/8 in
Overall Height
21 3/4 in
Overall Length
20 1/4 in
Inlet Dia.
1 1/4 in
Manufacturer Warranty Length
1 yr
Discharge Diameter
1 in
Inlet Diameter
1 1/4 in

Details

Item
Shallow Well Jet Pump System
HP
1/3 hp
Inlet
1-1/4 in NPT
Amps
10/4.8
Includes
1 x 3/4 in Adaptor, Ejector, Nozzle, Pump, Tank, Venturi
Flow Rate @ 10 Ft. Lift @ 40 PSI
4.5 gpm
Discharge
1 in NPT
GPM of Water @ 5 Ft @ 30, 50 PSI
8.5/3.5
GPM of Water @ 20 Ft @ 30, 50 PSI
4.8/1.3
GPM of Water @ 10 Ft @ 30, 50 PSI
7.5/2.8
Max. Inlet Pressure (PSI)
123
Motor Type
Capacitor Start
Suction Lift (Ft.)
25
GPM of Water @ 25 Ft @ 30, 50 PSI
3.3/1.0
Outlet
1" NPT
Tank PSI
28
Compliance
CSA-US
Shut Off (PSI)
63
Voltage
115/230
Tank (Gal.)
2
Max. Case Pressure (PSI)
123
Seal Type
Mechanical
GPM of Water @ 15 Ft @ 30, 50 PSI
6.3/2.5
Application
Transfer
Tank Capacity
2 gal
Flow Rate @ 10 Ft. Lift @ 30 PSI
7.5 gpm
Inlet Standard
NPT
Max. Inlet Pressure
123 psi
Rated Voltage
115/230V AC
Discharge Standard
NPT
Max. Suction Lift
25 ft
Flow Rate @ 10 Ft. Lift @ 50 PSI
2.8 gpm
Tank Bladder Pressure
28 psi
Shut Off Pressure
63 psi
Standards
CSA C US, NSF 61
Phase
Single
Inlet Gender
Female
Full Load Current
10/4.8 A
Inlet Pressure - Maximum
123 psi
Pressure Switch Setting - Minimum
30 psi
Product Type
Shallow Well Jet Pump System
Priming
Self-Priming
Discharge Gender
Female
Includes Ejector
No Ejector Included
Flow Rate - Maximum
10 gpm
Media Temperature - Maximum
90 Degrees F
Horsepower
1/3 hp
Pump Technology
Centrifugal
Pressure Switch Setting - Maximum
50 psi
Media Temperature - Minimum
5 Degrees C
For Media Type
Clear Water
Power Source
Corded Electric
Series
HWI
Suction Lift - Maximum
25 ft
Frequency
60 Hz
Shut Off Pressure - Maximum
63 psi
Installation
Floor Standing

Description

Shallow Well Jet Pump System, HP 1/3 hp, Rated Voltage 115/230V AC, Amps 10/4.8, Flow Rate @ 10 Ft. Lift @ 30 PSI 7.5 gpm, Flow Rate @ 10 Ft. Lift @ 40 PSI 4.5 gpm, Flow Rate @ 10 Ft. Lift @ 50 PSI 2.8 gpm, Max. Suction Lift 25 ft, Tank Capacity 2 gal, Tank Bladder Pressure 28 psi, Shut Off Pressure 63 psi, Max. Inlet Pressure 123 psi, Inlet 1-1/4 in NPT, Discharge 1 in NPT, Overall Length 20 1/4 in, Overall Width 9 1/8 in, Overall Height 21 3/4 in
