  9. Shutter Mount Exhaust Fan, 10", Variable Speed, 600 cfm
This item is Discontinued.

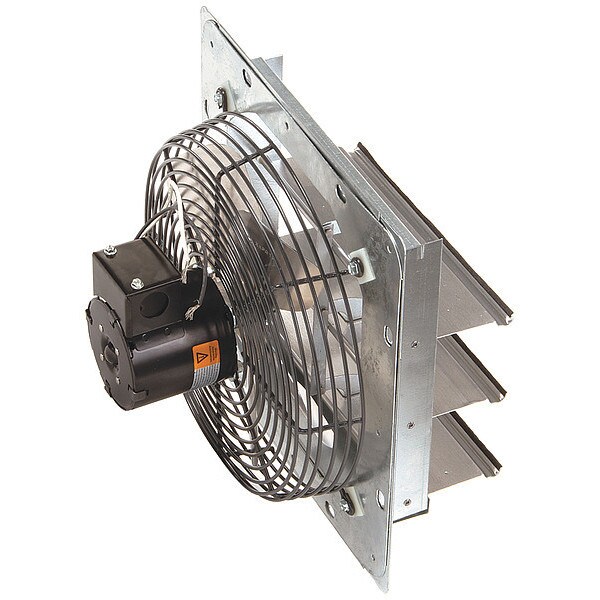

Dayton Shutter Mount Exhaust Fan, 10", Variable Speed, 600 cfm 1HLA1

Shutter Mount Exhaust Fan, 10", Variable Speed, 600 cfm (Discontinued)

  • Mfr # 1HLA1
  • Zoro # G3357837
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1HLA1
Zoro #
G3357837
UPC #
190735141960
Country of Origin
China

Dimensions

Blade Dia.
10 in
Width
13 1/8 in
Height
13 1/8 in
Max. Depth
10 3/8 in
Overall Height
13 1/8 in
Overall Width
13 1/8 in
Overall Depth
10 7/16 in
Blade Diameter
10 in
For Cut-Out Height
10 1/2 in
For Cut-Out Width
10 1/2 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
Variable
Fan Voltage
115 V AC
CFM @ 0.000-In. SP
600 cfm
Exhaust/Supply Fan Motor HP
1/25 hp
Square Opening Required
10 1/2 in
Item
Shutter Mount Exhaust Fan
Hz
60 Hz
Number of Blades
5
Blade Material
Stamped Aluminum
Motor RPM
1550 RPM
CFM @ 0.125-In. SP
354 cfm
Wire Guard Finish
Gray Polyester
Standards
cULus Listed E53236
Motor Type
PSC
Frame Finish
Galvanized Steel
Motor Enclosure
Totally Enclosed Air-Over
Speed Control Item Number
48C172
Sones @ 0.000-In. SP @ 5 Ft.
6.19 sones
Full Load Amps
0.55
Frame Material
Cold Rolled Steel
Thermal Protection
Automatic
Includes
Shutter
Bearing Type
Sleeve
Max. Ambient Temp.
104 Degrees F
Motor Insulation
Class B
Guard Material
Steel
Phase
1
Voltage
115V
Speed Control
1DGV1
Maximum Ambient Operating Temperature
104 Degrees F
Frequency
60 Hz
Exhaust Airflow @ 0.000 in SP
600 cfm
Full Load Current
0.55 A
Exhaust Airflow @ 0.125 in SP
354 cfm
Guard Finish
Gray Polyester
Noise Level @ 0.000 in SP @ 5 ft
6.19 sones
Motor Horsepower
1/25 hp
Motor Speed
1,550 RPM
Nameplate Voltage
115V AC

Description

Shutter Mount Exhaust Fan, Blade Diameter 10 in, Blade Material Stamped Aluminum, Exhaust Airflow @ 0.000 in SP 600 cfm, For Cut-Out Height 10 1/2 in, For Cut-Out Width 10 1/2 in, Frame Finish Galvanized Steel, Frame Material Cold Rolled Steel, Guard Finish Gray Polyester, Guard Material Steel, Includes Shutter
