  9. Shutter Mount Exhaust Fan, 12", Variable Speed, 800 cfm
Shop All Shutter Mount Exhaust Fans
Dayton

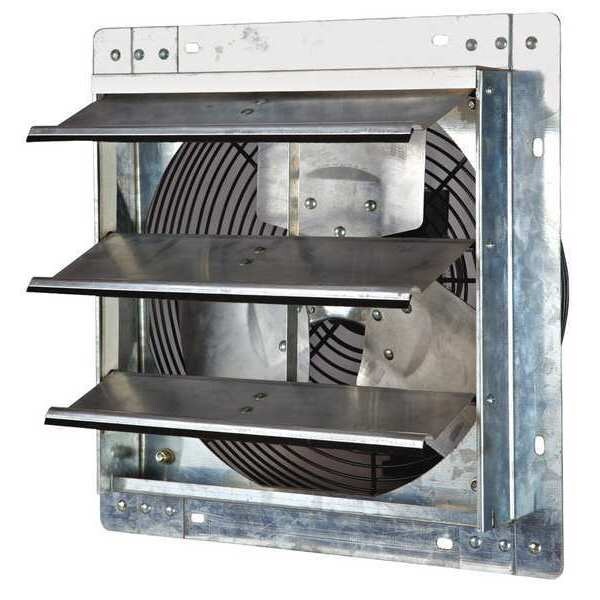

Shutter Mount Exhaust Fan, 12", Variable Speed, 800 cfm (Discontinued)

Free Shipping & Returns
This Product is Discontinued
Shop for all Shutter Mount Exhaust Fans

Key Features

  • Blade Dia. 12 in
  • Number of Speeds Variable
  • Fan Voltage 115V AC
  • CFM @ 0.000-In. SP 772
  • Exhaust/Supply Fan Motor HP 1/20 hp
See all product information

Product Information

Dimensions

Blade Dia. 12 in
Width 15 1/8 in
Height 15 1/8 in
Max. Depth 11 29/32 in
Overall Width 15 1/8 in
Overall Height 15 1/8 in
Blade Diameter 12 in

Details

Exhaust/Supply Fan Item Exhaust Fan
Number of Speeds Variable
Fan Voltage 115V AC
CFM @ 0.000-In. SP 772
Exhaust/Supply Fan Motor HP 1/20 hp
Square Opening Required 13 in
Motor Enclosure Totally Enclosed Air Over
Blade Material Aluminum
Frame Finish Galvanized
CFM @ 0.125-In. SP 470
Drive Package Included Yes
Frame Material Steel
Hz 60
Bearing Type Sleeve
Item Shutter Mount Exhaust Fan
Max. Ambient Temp. 104 Degrees F
Sones @ 0.000-In. SP @ 5 Ft. 5.9
Includes Shutter
Guard Material Steel
Motor RPM 1625
Motor Insulation Class B
Standards cULus Listed E53236
Phase 1
Full Load Amps 0.6
Speed Control Item Number 48C172
Number of Blades 3
Wire Guard Finish Gray Polyester
Motor Type Permanent Split Capacitor
Thermal Protection Yes
Voltage 115V
Fan Style Shutter-Mounted
Noise Level @ 0.000 in SP @ 5 ft 5.9 sones
Frequency 60 Hz
Maximum Ambient Operating Temperature 104 Degrees F
Full Load Current 0.6 A
Maximum Noise Level 5.9 sones
Motor Speed 1,625 RPM
Includes Motor Yes
Exhaust Airflow @ 0.000 in SP 772 cfm
Motor Horsepower 1/20 hp
Nameplate Voltage 115V AC
Speed Control 1DGV1

Description

Shutter Mount Exhaust Fan, Blade Diameter 12 in, Blade Material Aluminum, Duct Diameter Not Applicable, Exhaust Airflow @ 0.000 in SP 772 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Material Steel, Includes Shutter, Maximum Noise Level 5.9 sones
