  9. Shutter Mount Exhaust Fan, 36", 1 Speed, 8225 cfm, 115V

This item is Discontinued.

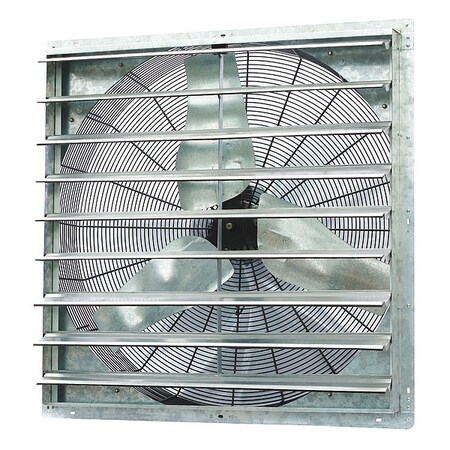

Dayton Shutter Mount Exhaust Fan, 36", 1 Speed, 8225 cfm, 115V 1HLB6

Shutter Mount Exhaust Fan, 36", 1 Speed, 8225 cfm, 115V (Discontinued)

  • Mfr # 1HLB6
  • Zoro # G2423583
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1HLB6
Zoro #
G2423583
UPC #
190735142097
Country of Origin
China

Dimensions

Blade Dia.
36 in
Width
39-1/8"
Height
39-1/8"
Max. Depth
19-7/16"

Details

Exhaust/Supply Fan Item
Exhaust Fan
Number of Speeds
1
Fan Voltage
115 V AC
CFM @ 0.000-In. SP
8225
Exhaust/Supply Fan Motor HP
1/2
Square Opening Required
37 in
Item
Shutter Mount Exhaust Fan
Full Load Amps
6
Motor RPM
825
Hz
60
Guard Material
Steel
Sones @ 0.000-In. SP @ 5 Ft.
8.24
Max. Ambient Temp.
104 Degrees F
Standards
UL Listed for US and Canada
Phase
1
Drive Package Included
No
Motor Enclosure
Totally Enclosed Air-Over
Wire Guard Finish
Gray Polyester
Motor Insulation
Class B
Frame Finish
Galvanized Steel
CFM @ 0.125-In. SP
6480
Frame Material
Cold Rolled Steel
Includes
Shutter
CFM @ 0.250-In. SP
2620
Thermal Protection
Auto
Bearing Type
Ball
Blade Material
Steel
Number of Blades
3
Motor Type
PSC
Voltage
115

Description

Shutter Mount Exhaust Fan, Blade Dia. 36 in, Number of Speeds 1, Fan Voltage 115 V AC, CFM @ 0.000-In. SP 8225, Exhaust/Supply Fan Motor HP 1/2, Square Opening Required 37 in, CFM @ 0.125-In. SP 6480, CFM @ 0.250-In. SP 2620, Sones @ 0.000-In. SP @ 5 Ft. 8.24, Motor RPM 825, Hz 60, Phase 1, Full Load Amps 6, Max. Ambient Temp. 104 Degrees F, Motor Type PSC, Motor Enclosure Totally Enclosed Air-Over, Motor Insulation Class B, Bearing Type Ball, Height 39 1/8 in, Width 39 1/8 in
