  7. Side Flange, Enclosed Power Relay, 5, 1/4 in Tab Terminal

This item is Discontinued.

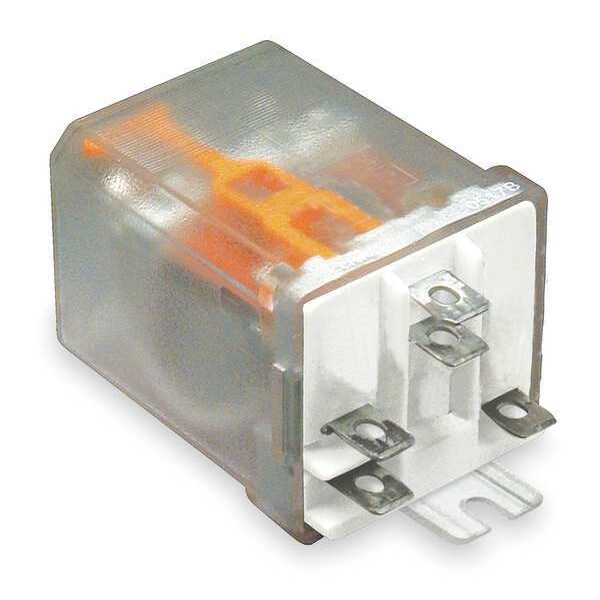

Dayton Side Flange, Enclosed Power Relay, 5, 1/4 in Tab Terminal 1EGF1

Side Flange, Enclosed Power Relay, 5, 1/4 in Tab Terminal (Discontinued)

  • Mfr # 1EGF1
  • Zoro # G2037777
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1EGF1
Zoro #
G2037777
UPC #
190735138014
Country of Origin
China

Dimensions

Overall Height - Relay
1.9 in
Dimensions
1.90"H, 1.50"W, 2.90"D
Body Depth
2.9 in
Body Height
1.9 in
Overall Depth
1.9 in
Body Width
1.5 in
Body Depth - Relay
2.9 in
Body Width - Relay
1.5 in
Body Height - Relay
1.9 in

Details

Item
Enclosed Power Relay
Mounting Style
Side Flange
Electrical Connection
1/4 in Tab Terminal
Number of Pins
5
Coil Voltage
12V DC
Contact Form
SPDT
Contact Rating (AC)
25 A @ 300V
Contact Rating (DC)
13 A @ 28V
Hz - Electrical
50/60 Hz
Mounting - Relay
Side Flange
AC Contact Rating - Relay
25A @ 300V
DC Contact Rating - Relay
13A @ 28V
Item - Relay
Enclosed Power Relay
Contact Amp Rating (Resistive)
25A @ 300VAC, 13A @ 28VDC
Mounting
Flange, Side
HP @ 240V
1 1/2
Pins
5
Contact Form - Relay
SPDT
Number of Pins - Relay
5
Coil Volts
12V DC
Number of Poles
1
Contact Material
Silver Alloy
Power Consumption - Relay
3.5 W
Coil Rating
3.5VA, 1.4W
HP @ 120V
1
Standards
E40944
Electrical Connection - Power Relay
1/4 in Tab Terminal
Hz
50/60
Series
Dayton Power Series
Motor Rated
Yes
Minimum Operating Temperature
-22 Degrees F
Maximum Operating Temperature
149 Degrees F
Horsepower @ 120V AC
1 hp
Horsepower @ 240V AC
1 1/2 hp
Base Type
Square
Power Consumption
3.5 W
Frequency
50/60 Hz
Status Indicator
No Indicator
Type
Power

Description

Enclosed Power Relay, Coil Voltage 12V DC, Contact Form SPDT, Electrical Connection 1/4 in Tab Terminal, Number of Pins 5, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 300V, Contact Rating (DC) 13 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Side Flange, Body Depth 2.9 in, Body Height 1.9 in, Body Width 1.5 in, Contact Material Silver Alloy, Frequency 50/60 Hz
