  7. Side Flange, Enclosed Power Relay, 8, 1/4 in Tab Terminal

This item is Discontinued.

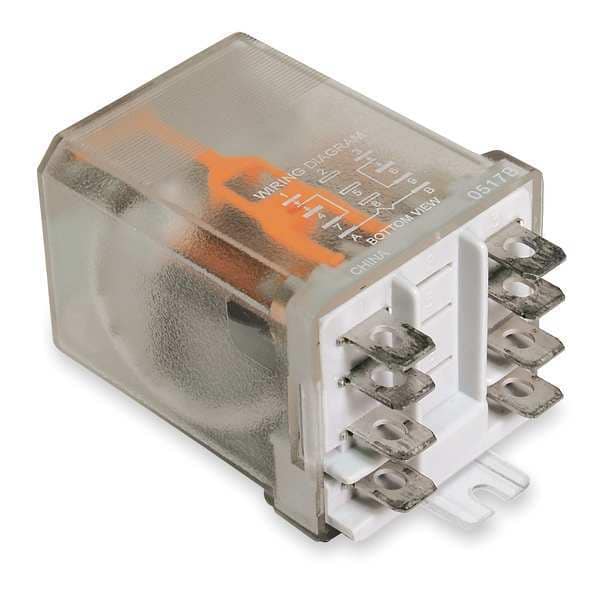

Dayton Side Flange, Enclosed Power Relay, 8, 1/4 in Tab Terminal 1EGF5

Side Flange, Enclosed Power Relay, 8, 1/4 in Tab Terminal (Discontinued)

  • Mfr # 1EGF5
  • Zoro # G0632703
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1EGF5
Zoro #
G0632703
UPC #
190735138052
Country of Origin
China

Dimensions

Body Height - Relay
1.9 in
Overall Height - Relay
1.9 in
Dimensions
1.90"H, 1.50"W, 2.90"D
Body Depth - Relay
2.9 in
Body Width - Relay
1.5 in
Body Depth
2.9 in
Overall Depth
1.9 in
Body Width
1.5 in
Body Height
1.9 in

Details

Item
Enclosed Power Relay
Mounting Style
Side Flange
Electrical Connection
1/4 in Tab Terminal
Number of Pins
8
Coil Voltage
240V AC
Contact Form
DPDT
Contact Rating (AC)
25 A @ 300V
Contact Rating (DC)
13 A @ 28V
Number of Pins - Relay
8
Item - Relay
Enclosed Power Relay
Number of Poles
2
Standards
E40944
Hz
50/60
Mounting
Flange, Side
Contact Material
Silver Alloy
DC Contact Rating - Relay
13A @ 28V
Pins
8
HP @ 240V
1 1/2
Electrical Connection - Power Relay
1/4 in Tab Terminal
HP @ 120V
1 1/2
Hz - Electrical
50/60 Hz
Contact Amp Rating (Resistive)
25A @ 300VAC, 13A @ 28VDC
Mounting - Relay
Side Flange
Power Consumption - Relay
3.5 VA
Coil Volts
240V AC
Coil Rating
3.5VA, 1.4W
AC Contact Rating - Relay
25A @ 300V
Contact Form - Relay
DPDT
Horsepower @ 240V AC
1 1/2 hp
Series
Dayton Power Series
Motor Rated
Yes
Minimum Operating Temperature
-22 Degrees F
Maximum Operating Temperature
122 Degrees F
Base Type
Square
Frequency
50/60 Hz
Horsepower @ 120V AC
1 1/2 hp
Power Consumption
3.5 VA
Status Indicator
No Indicator
Type
Power

Description

Enclosed Power Relay, Coil Voltage 240V AC, Contact Form DPDT, Electrical Connection 1/4 in Tab Terminal, Number of Pins 8, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 300V, Contact Rating (DC) 13 A @ 28V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Side Flange, Body Depth 2.9 in, Body Height 1.9 in, Body Width 1.5 in, Contact Material Silver Alloy, Frequency 50/60 Hz
