Shop DAYTON

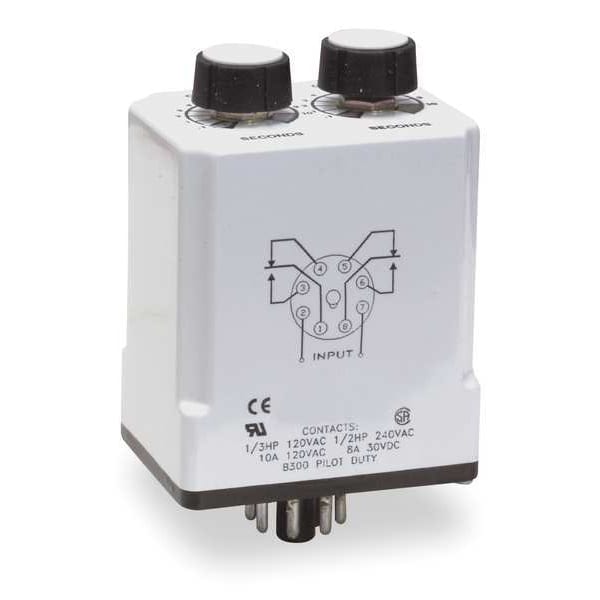

Single Function Time Delay Relay, Octal, Cycle On, 1 Functions 120V AC/DC, DPDT

  • Mfr # 1EGD2

  • Zoro # G1189745

product price:
$
68.39
/ea

Key Features

Delay Function
Cycle On
Number of Delay Functions
1
Minimum Time Setting
0.6 sec
Maximum Time Setting
1 min
Base Shape
Octal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1EGD2
Zoro #
G1189745
UPC #
190735137932
Country of Origin
United States
Item
Single Function Time Delay Relay
Delay Function
Cycle On
Number of Delay Functions
1
Minimum Time Setting
0.6 sec
Maximum Time Setting
1 min
Base Shape
Octal
Number of Pins
8
Coil Voltage
120V AC/DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
10 A @ 30V
Operating Functions
7
Coil Rating
2VA
Adjustment Method
Potentiometer
Status Indicator
None
Socket Code
A
Contact Amp Rating (Resistive)
10A
Electrical Connection
Socket
Contact Material
Silver Nickel
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Socket
1EGP3, 1EGP5, 5X852
Input Voltage
120V AC/DC
Reset Method
Time-Limit Reset
Frequency
50/60 Hz
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Minimum Operating Temperature
-18 Degrees F
Maximum Operating Temperature
122 Degrees F
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
IP Rating
IP20
Sealing
Enclosed
Power Consumption
2 VA
Mounting Style
Plug-In

Description

Single Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Octal, Coil Voltage 120V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Cycle On, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 120V AC/DC, Minimum Time Setting 0.6 sec, Maximum Time Setting 60 sec, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
